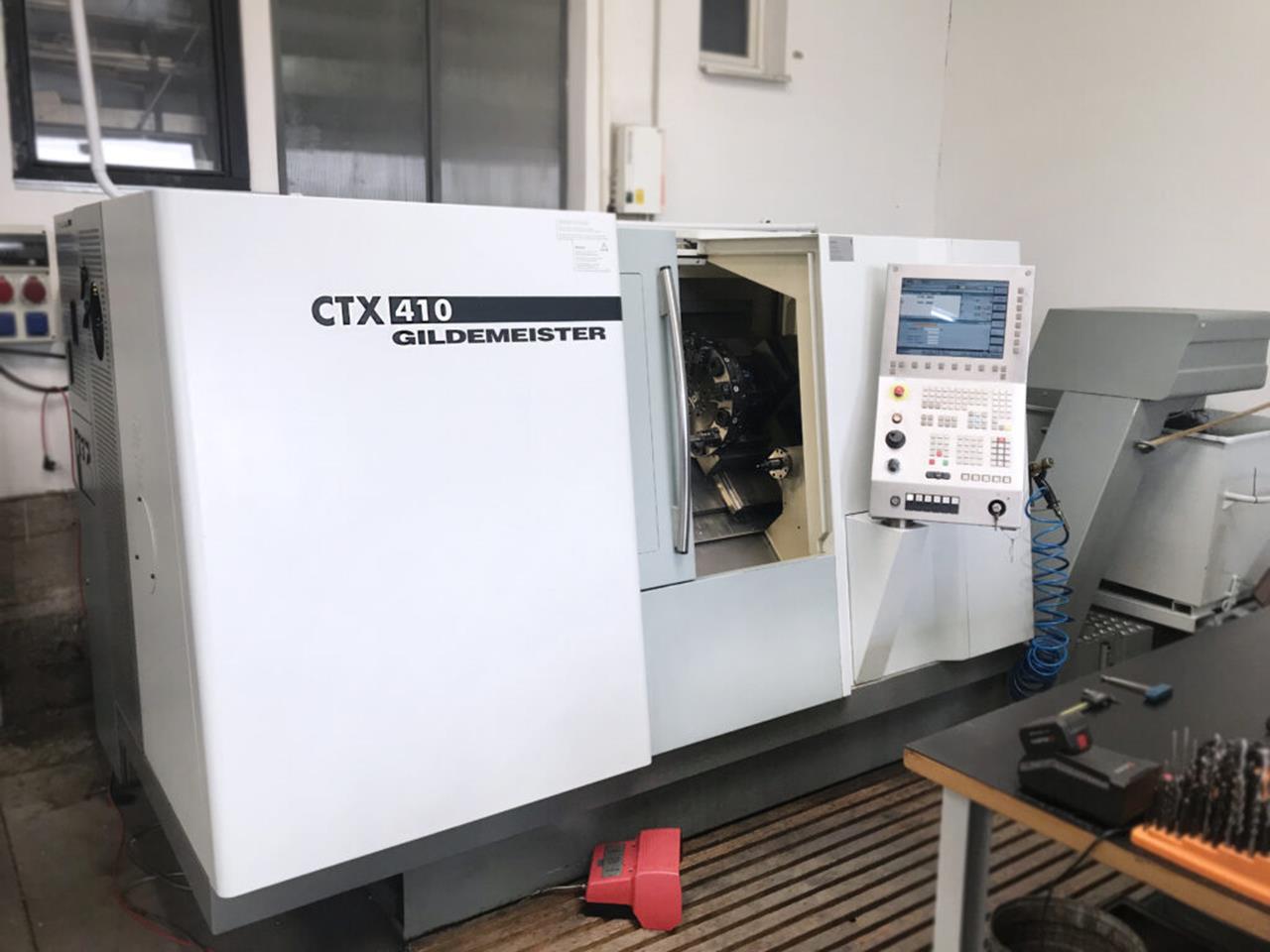

NC/CNC CTX 410
CNC lathe
 Specifications |
|
| Catalog No. : | 8728 |
| Type: | CTX 410 |
| Producer: | DMG Gildemeister |
| Made in: | 2006 |
| Characteristic: | |

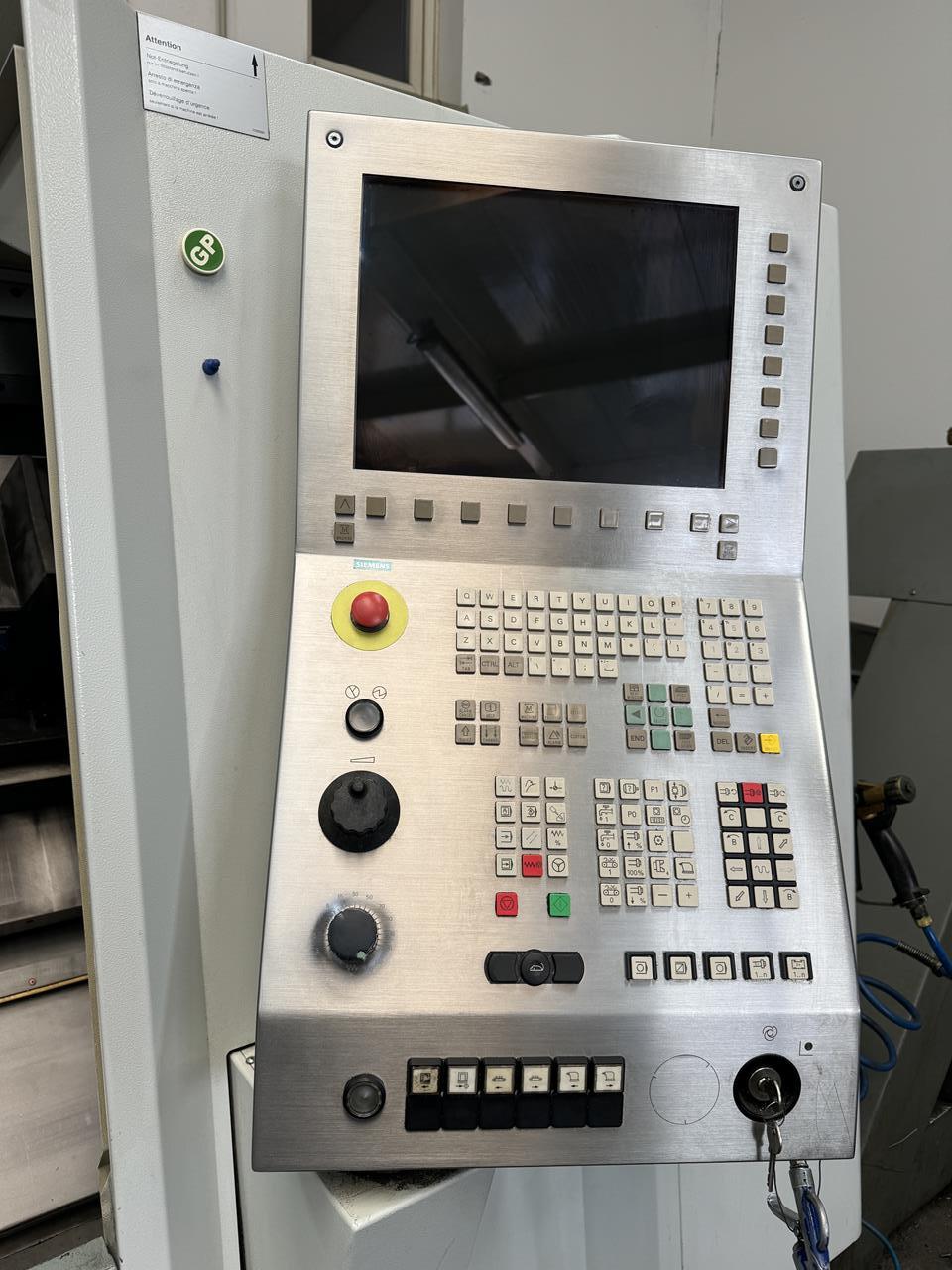

| Control system: Siemens Sinumerik | |

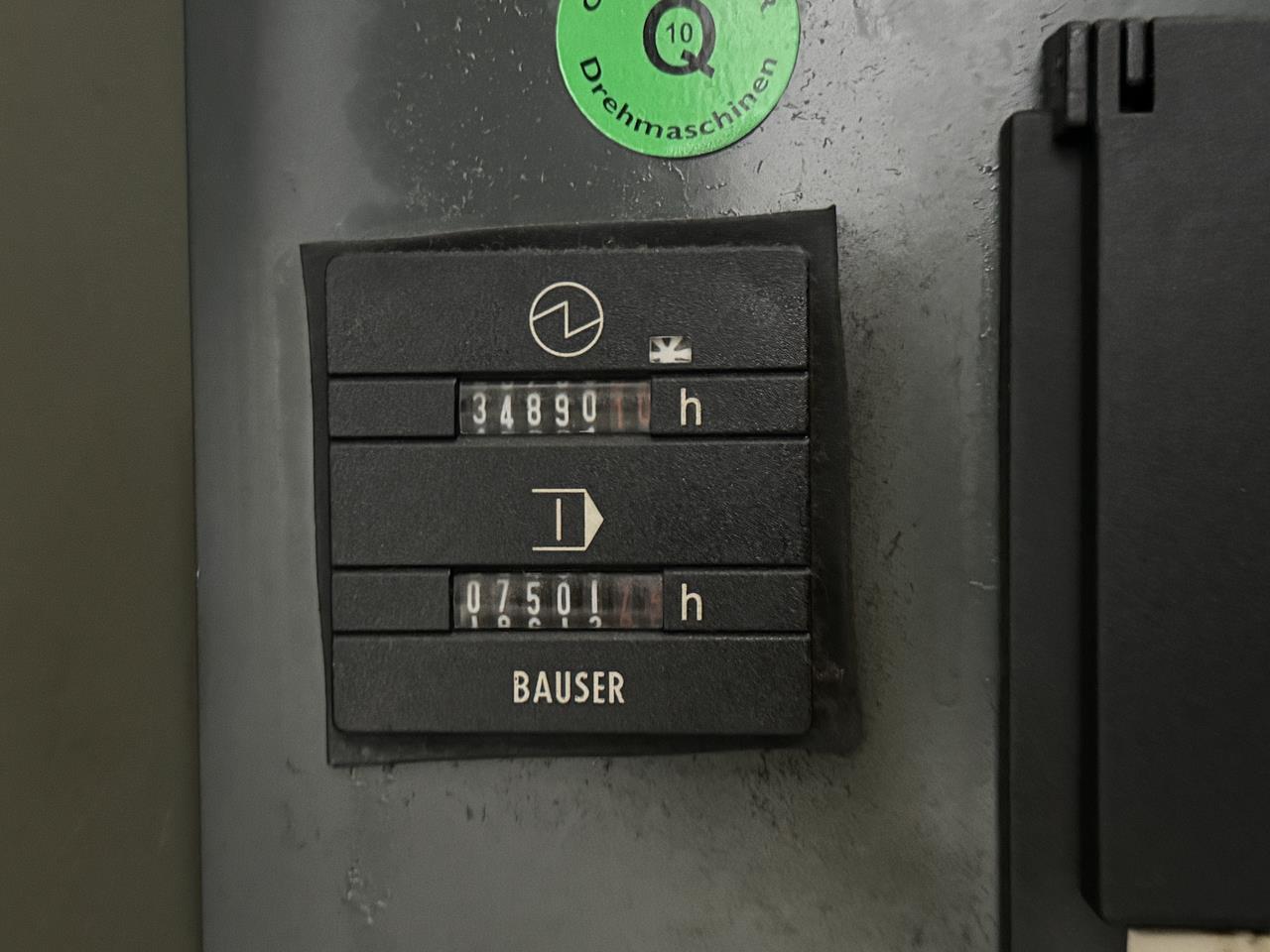

| Total hours: 34890 h | |
| Hours on: 7501 h | |
| Maximum-turning length: 600 mm | |
| Grinding diameter: 505 mm | |
| Max. turning diameter: 320 mm | |
| Maximum travel length in the X-axis: 250 mm | |
| Maximum feedrate in the Z axis: 635 mm | |
| Maximum spindle speed: 4000 1/min | |
| Chuck diameter: 170 mm | |
| Number of tool head positions: 12 | |
| Diameter of the spindle bore: 65 mm | |
| Weight: 6000 kg | |
| Equipment: | |

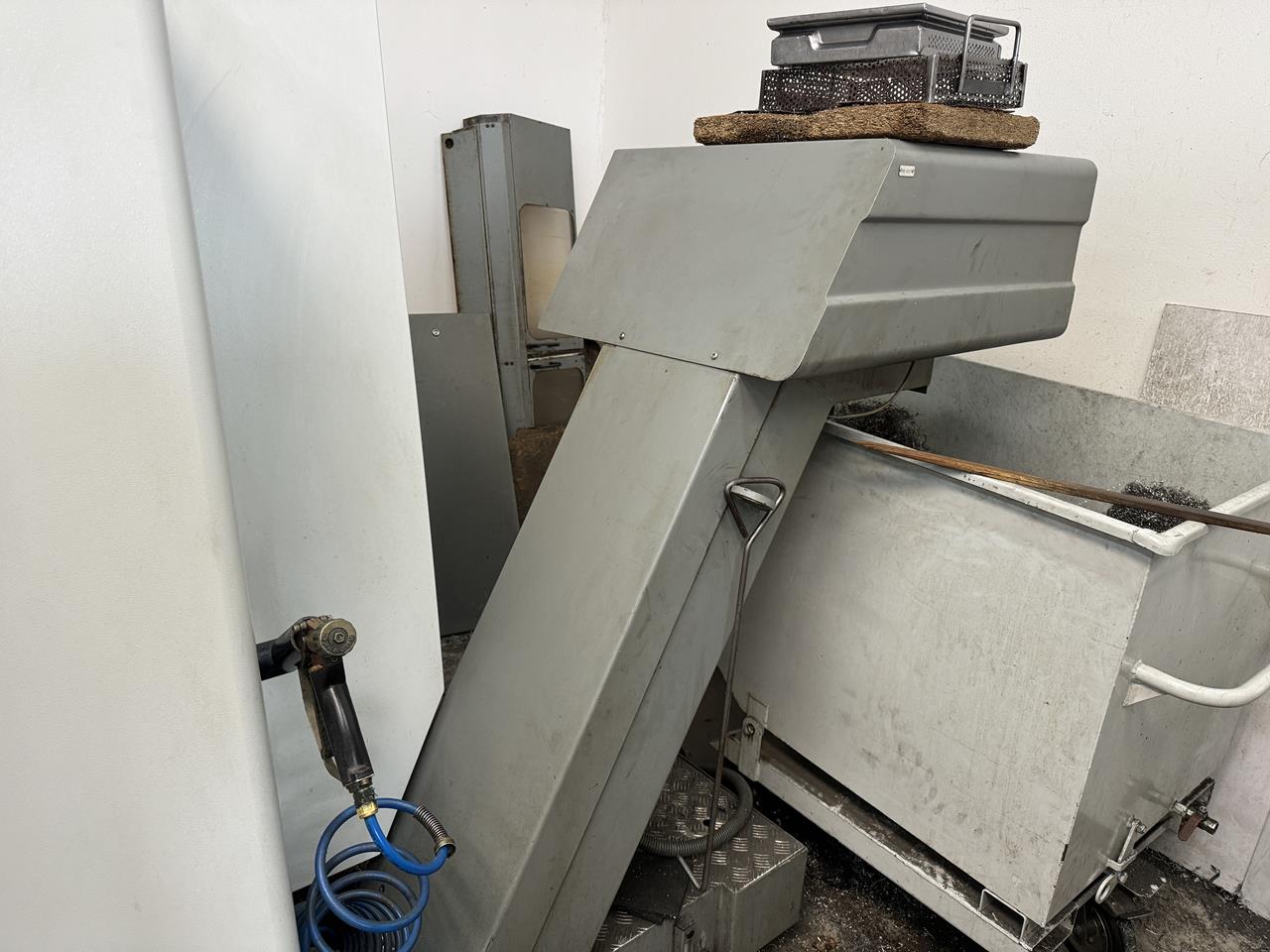

| Chip conveyor | |
| Tool probe | |
| Programmable tailstock and quill | |

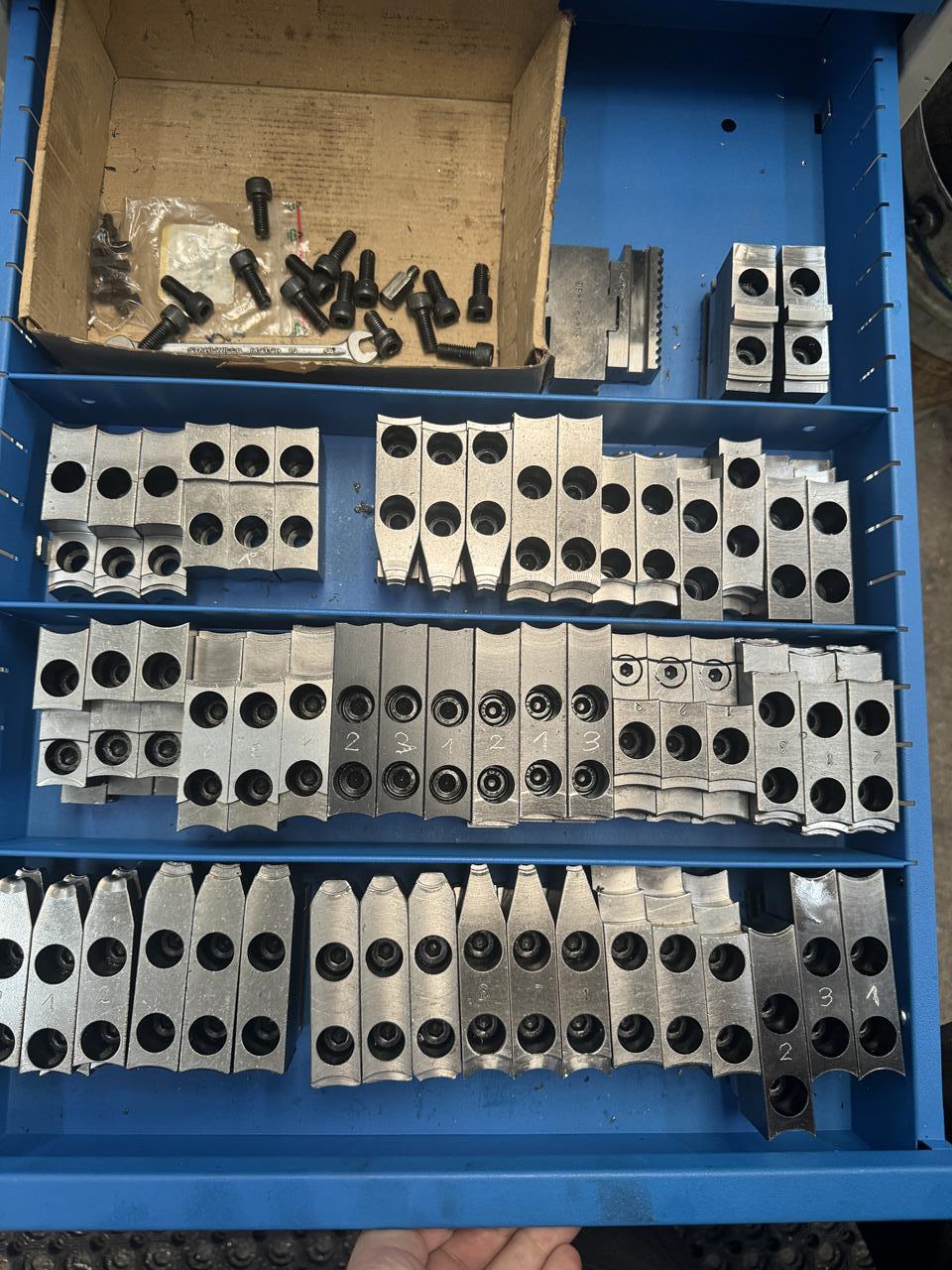

| Dozens of soft jaws | |
