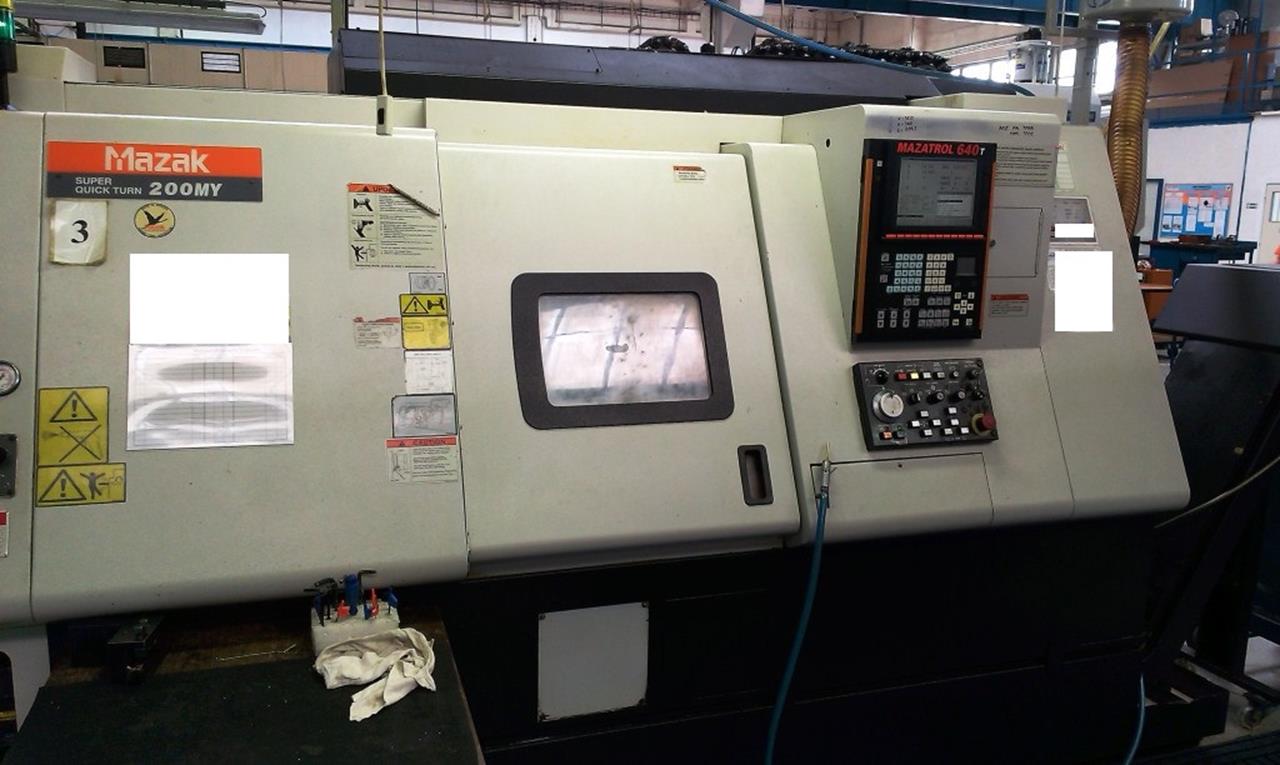

NC/CNC SQT 200 MY
CNC lathe
 Specifications |
|
| Catalog No. : | 8742 |
| Type: | SQT 200 MY |
| Producer: | MAZAK |
| Made in: | 2004 |
| Characteristic: | |
| Control system: MAZATROL PC-FUSION-CNC 640T | |
| Turning diameter over bed (max): 525 mm | |
| Maximum travel length in the X-axis: 180 mm | |
| Maximum travel length in the Y-axis: 100 mm | |
| Maximum feedrate in the Z axis: 575 mm | |
| C axis: 360 | |
| Maximum spindle speed: 6000 1/min | |
| Max. lenght of the workpiece: 300 mm | |
| Max. diameter of workpiece: 300 mm | |
| Spindle taper: MORSE 5 | |
| Max. bar diameter: 51 mm | |
| Number of tool head positions: 12 | |
| Weight: 5600 kg | |
| Equipment: | |
| Bar feeder | |
