NC/CNC X-100
CNC lathe
 Specifications |
|
| Catalog No. : | 8751 |
| Type: | X-100 |
| Producer: | TAKAMAZ |
| Made in: | 2006 |
| Characteristic: | |

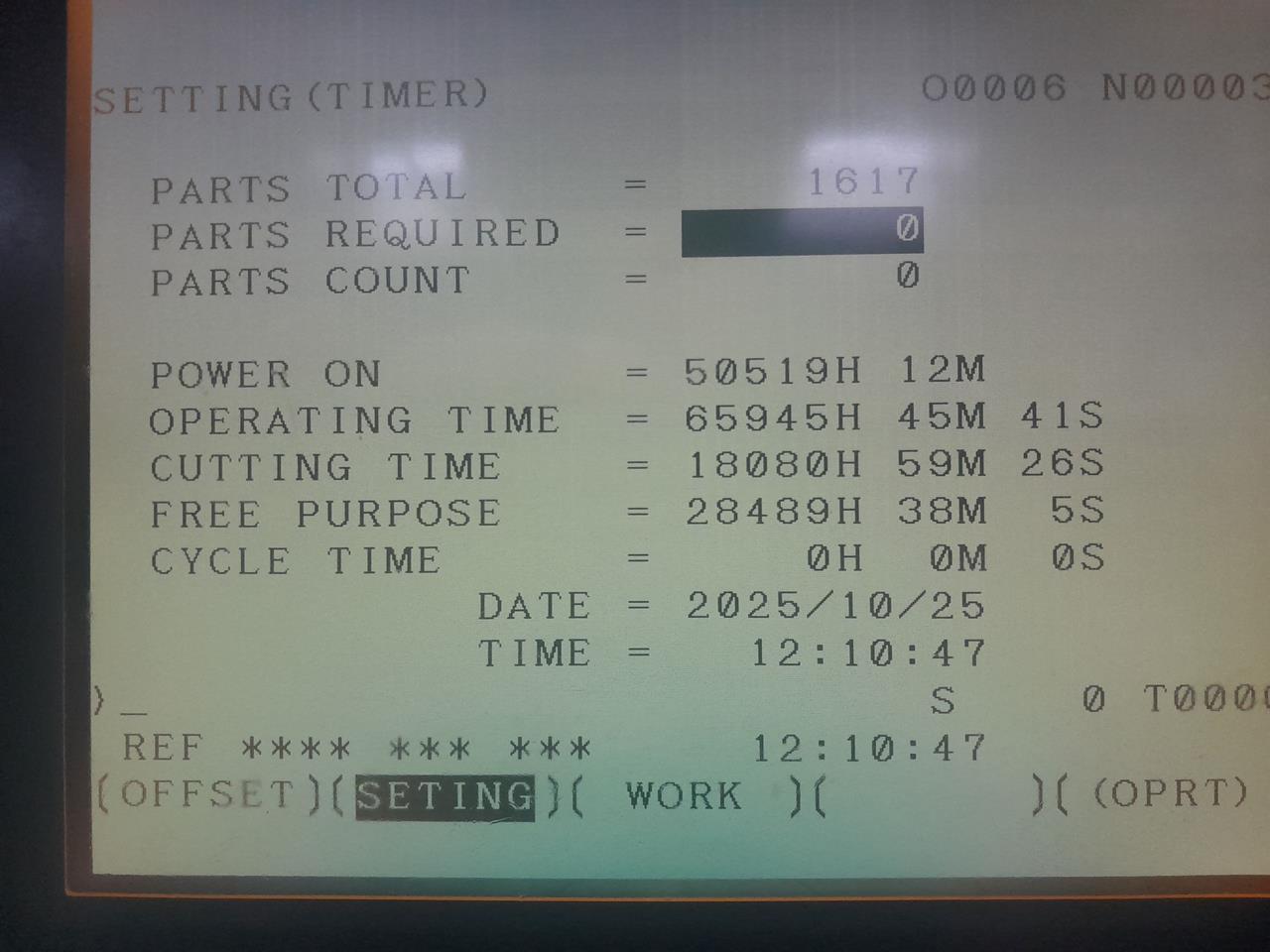

| Total hours: 65945 h | |
| Hours on: 50519 h | |
| Maximum-turning length: 254 mm | |
| Max. turning diameter: 203 mm | |
| Turning diameter over bed (max): 280 mm | |
| Maximum spindle speed: 4500 1/min | |
| Power of the spindle: 7.5 kW | |
| Max. bar diameter: 73 mm | |
| Chuck diameter: 153 mm | |
| Weight: 2500 kg | |
| 2021: overhaul of the spindle and ball screws on the X and Y axes. | |
