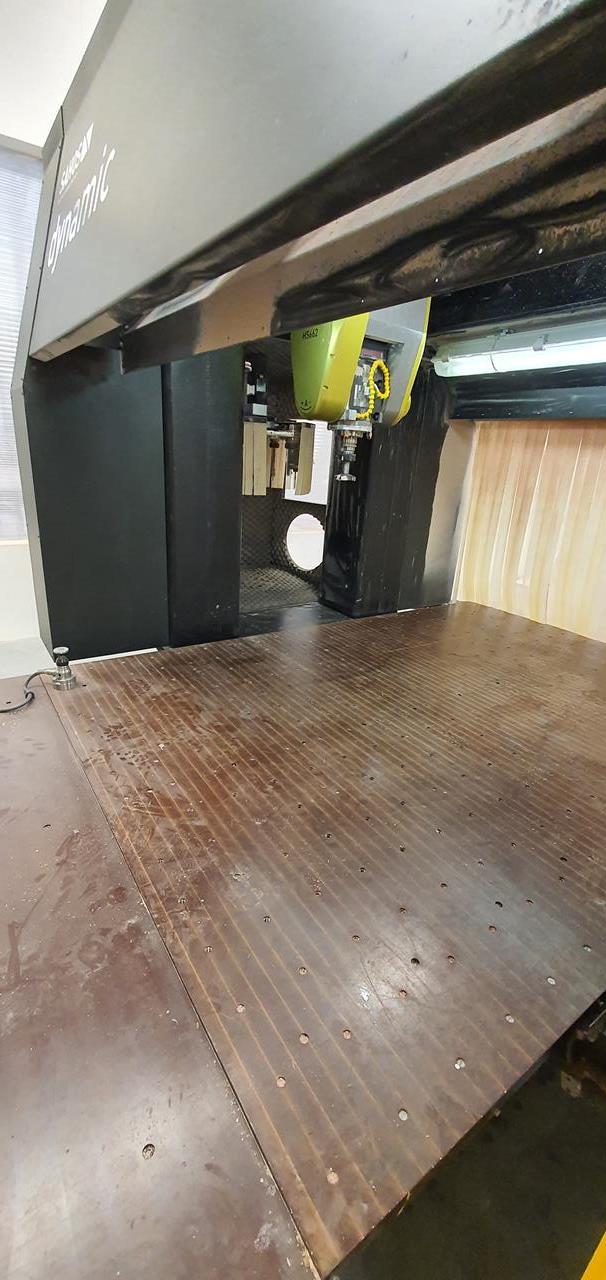

Homepage Dynamic FC3000

Machining Centre (Universal)

Specifications
Catalog No. :5163
Type:Dynamic FC3000
Producer:Sahos
Made in:2016
Characteristic:
Control system: Heidenhain 530
Total hours: 32115 h
Hours on: 14711 h
Power of the spindle drive: 12 kW
Number of synchronous axles: 5 pcs
Maximum rotary speed of the vertical spindle: 24000 1/min
Travel length X-axis (mechanical feed): 3000 mm
Travel length Y-axis (mechanical feed): 1500 mm
Travel length Z-axis (mechanical feed): 750 mm
Maximum number of tools: 12 pcs
Tool holder: HSKF63
Machine weight: 8200 kg
Equipment:
Renishaw TS460 infra 3D measuring probe
TT 140 3D measuring probe
Card table with Helicoil inserts in raster
XYZAC direct metering
Master-slave on the X-axis
