OFA 71A
Gear Shaper
 Specifications |
|
| Catalog No. : | 8398 |
| Type: | OFA 71A |
| Producer: | TOS |
| Made in: | |
| Characteristic: | |
| Maximal module: 10 mm | |
| Maximum diameter of the gear wheel: 710 mm | |
| Maximum table load: 1000 kg | |
| Number of teeth of the bevel gear: 8-400 | |
| Machine height: 2400 mm | |
| Machine length: 3900 mm | |
| Machine width: 2600 mm | |
| Machine weight: 13500 kg | |
| Equipment: | |

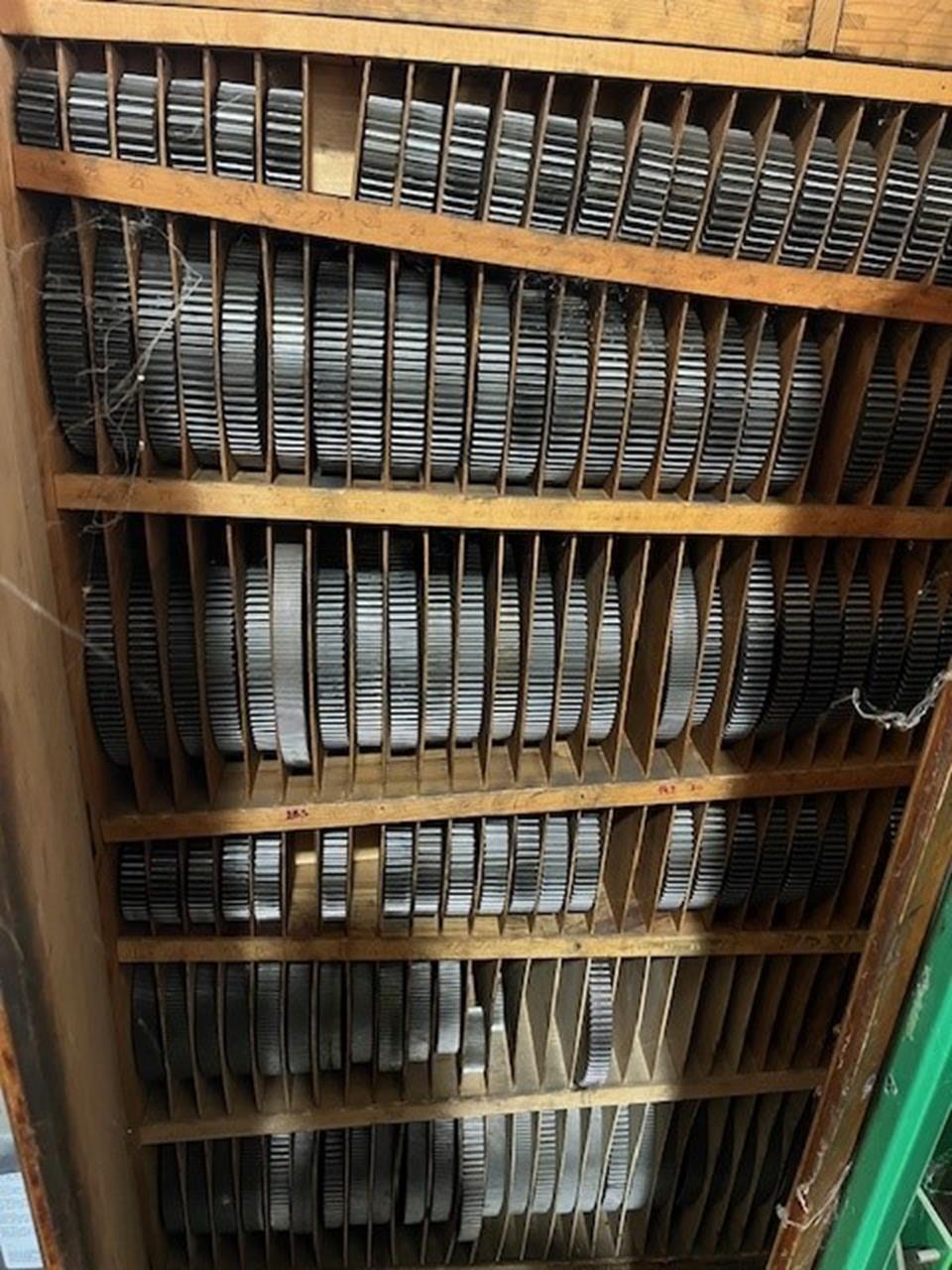

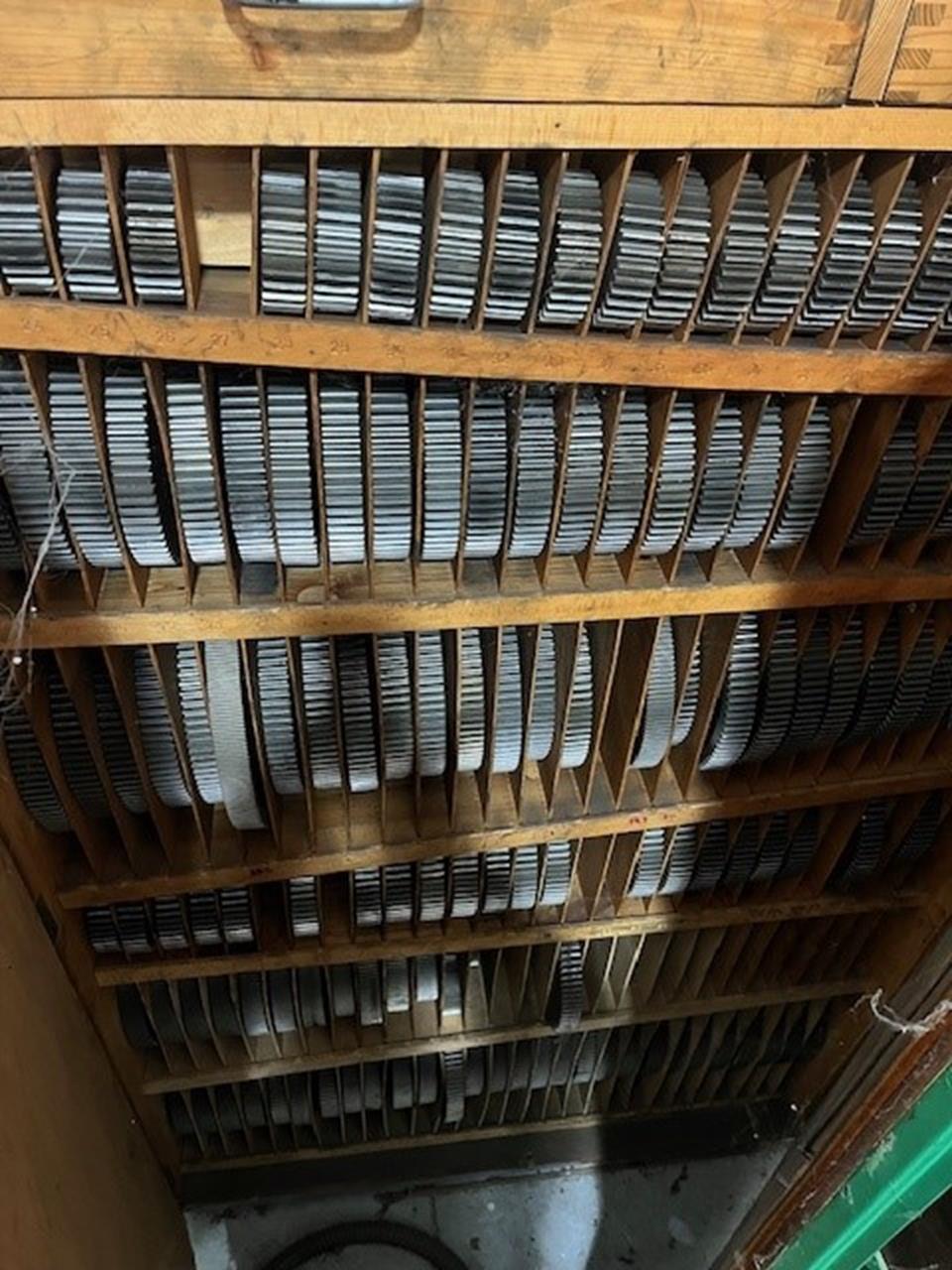

| Set of interchangeable wheels | |
| Chip convoyer | |
Gallery
