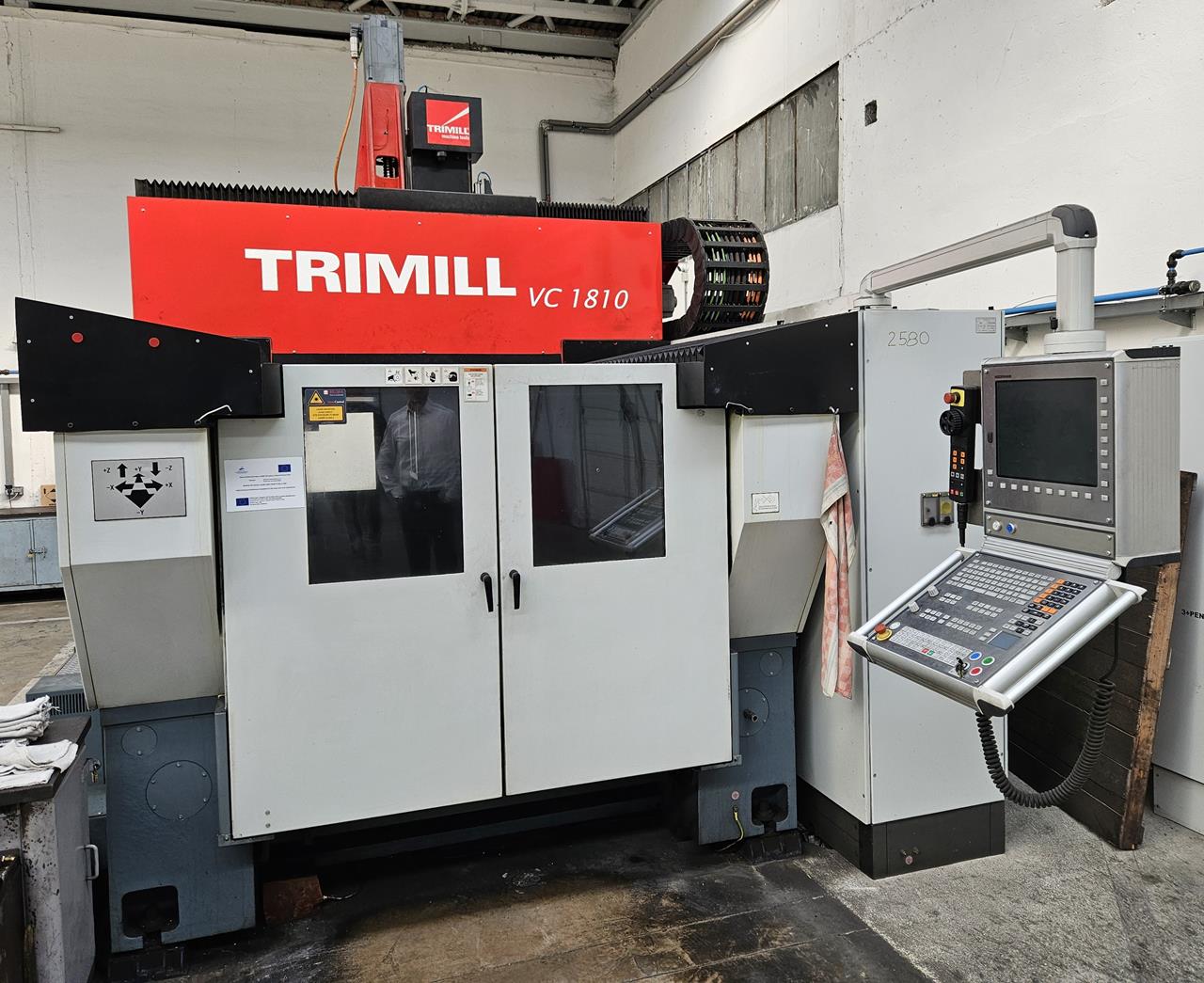

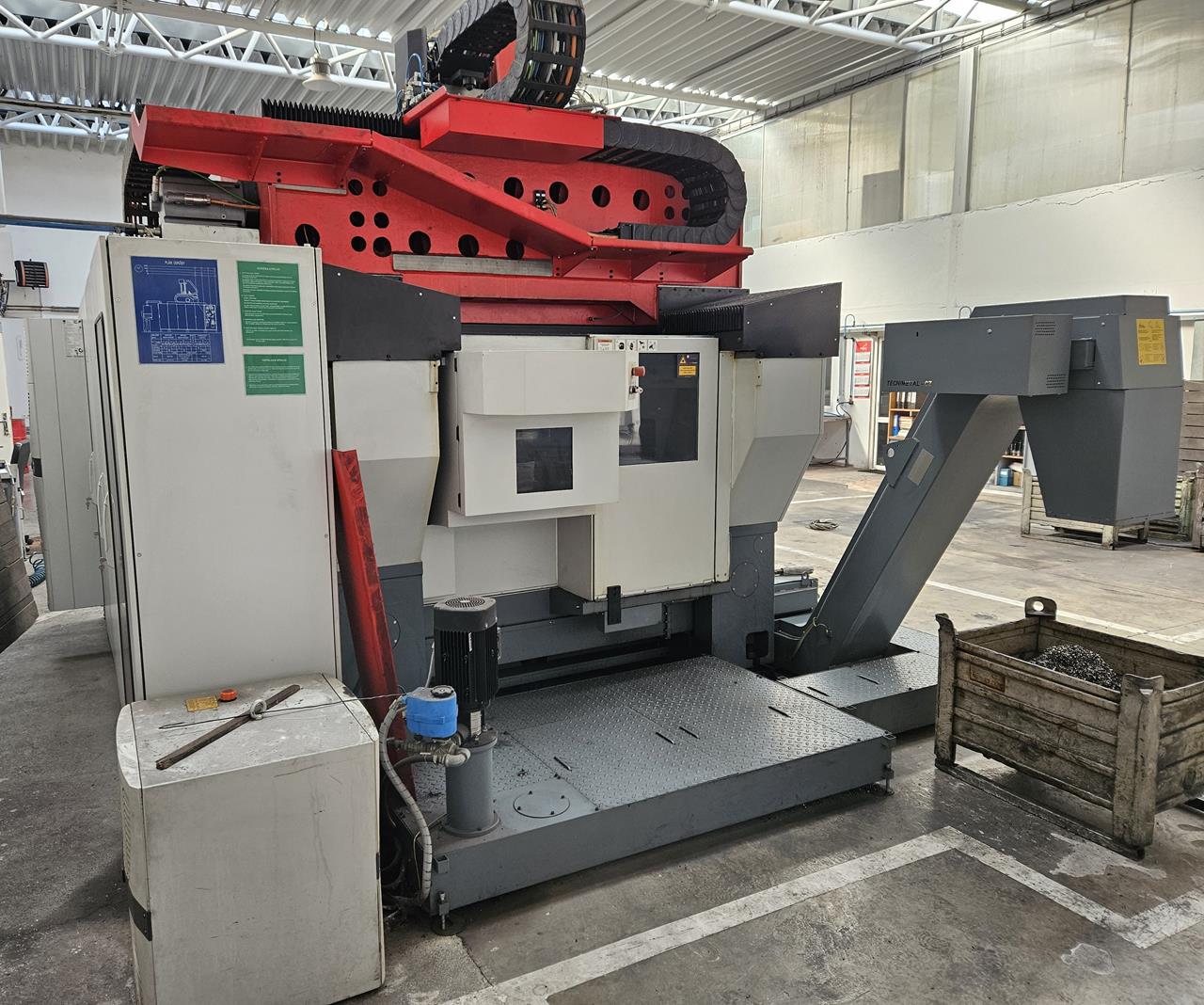

Machining centers VC 1810
Machining center (vertical)
 Specifications |
|
| Catalog No. : | 8573 |
| Type: | VC 1810 |
| Producer: | TRIMILL |
| Made in: | 2015 |
| Characteristic: | |
| Control system: Heidenhain iTNC 530 HSCI | |
| Length of the working table: 2000 mm | |
| Width of the working table: 1370 mm | |
| Maximum table load (evenly distributed): 10000 kg | |
| Power of the spindle drive: 25 kW | |
| Maximum rotary speed of the vertical spindle: 14000 1/min | |
| X-Axis travels: 1800 mm | |
| Y-Axis travels: 1000 mm | |
| Z-Axis travels: 700 mm | |
| Maximum feed rate in X-axis: 30000 mm/min | |
| Maximum feed rate in Y-axis: 30000 mm/min | |
| Maximum feed rate in Z-axis: 30000 mm/min | |
| Taper: HSK – A80 | |
| Maximum number of tools: 10 pcs | |
| Maximum tool diameter: 110/125 mm | |
| Max. tool weight: 12 kg | |
| Machine weight: 18000 kg | |
| Equipment: | |
| Tools | |
| Thermal clamps | |
