Plasma cutting machines DS 6001.20PrkBk AF M

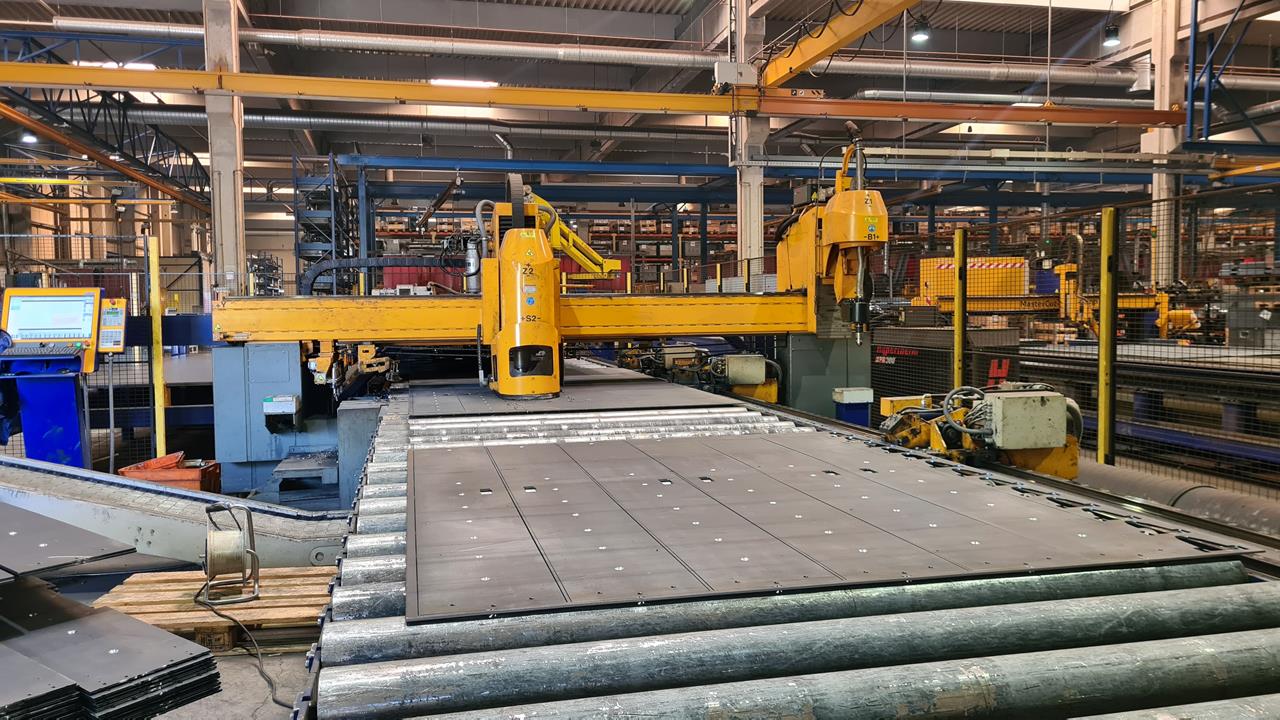

Plasma cutting machine
 Specifications |
|
| Catalog No. : | 8517 |
| Type: | DS 6001.20PrkBk AF M |
| Producer: | MicroStep |
| Made in: | 2018 |
| Characteristic: | |

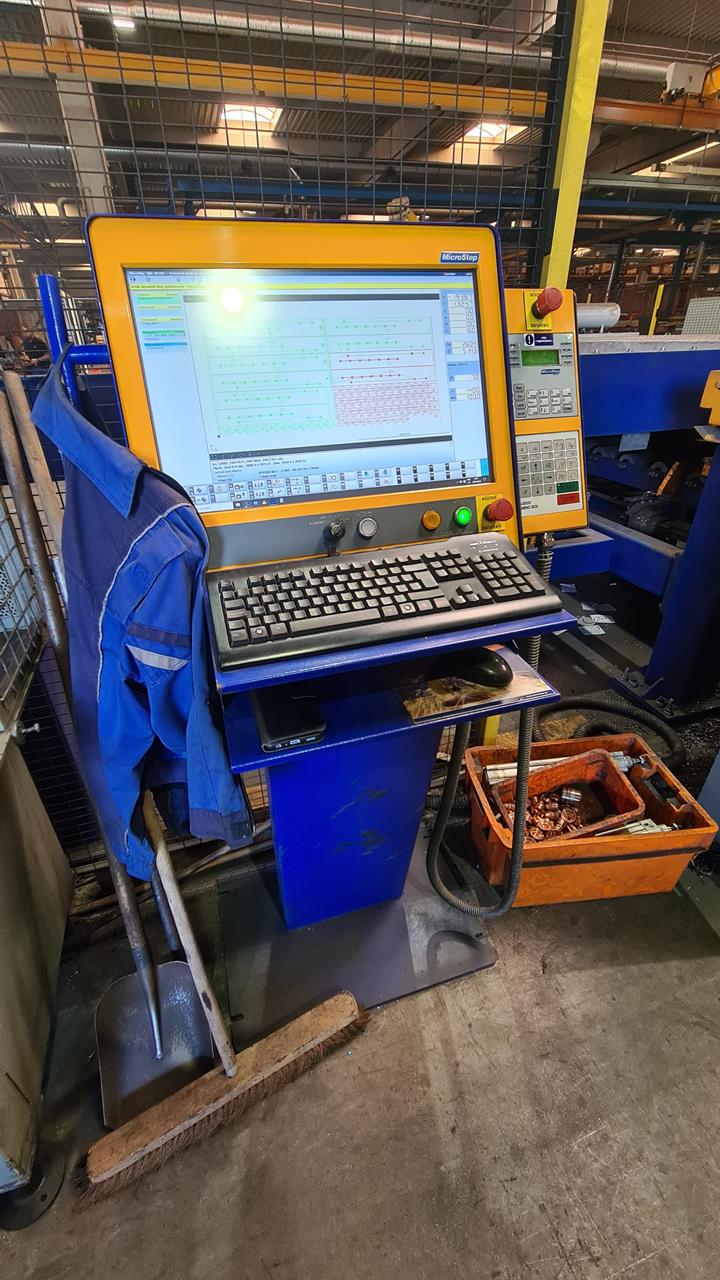

| Control system: iMSNC | |
| Software: AsperWin Basic (2018) | |
| Total hours: 12800 h | |
| Hours on: 3400 h | |
| Length of the working table: 6000 mm | |
| Width of the working table: 2000 mm | |
| Maximum thickness of the cut sheet metal: 50 mm | |
| Maximum thickness of the cut sheet metal (Stainless Steel): 6 mm | |
| Maximum thickness of the cut sheet metal (Aluminum): 6 mm | |

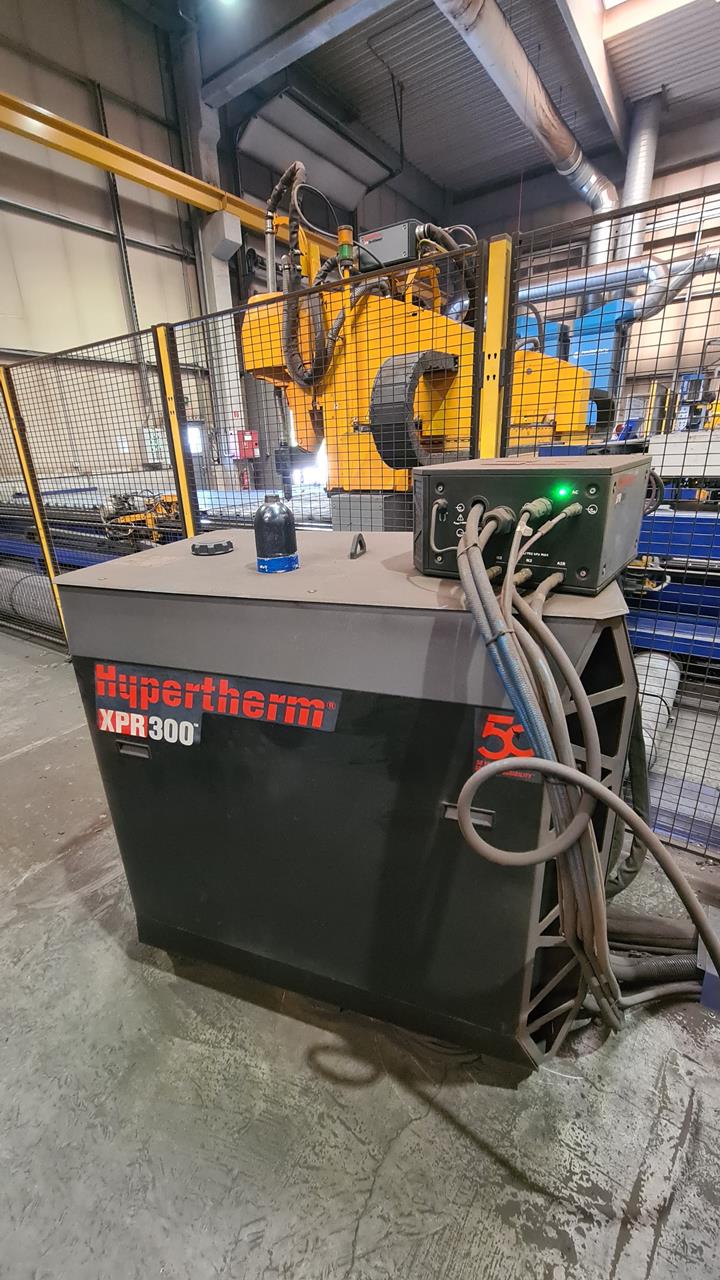

| Plasma source: XPR300/A Core | |
| Machine height: 2630 mm | |
| Machine length: 16735 mm | |
| Machine width: 9260 mm | |
| Machine weight: 22180 kg | |
| Equipment: | |
| Technical books | |

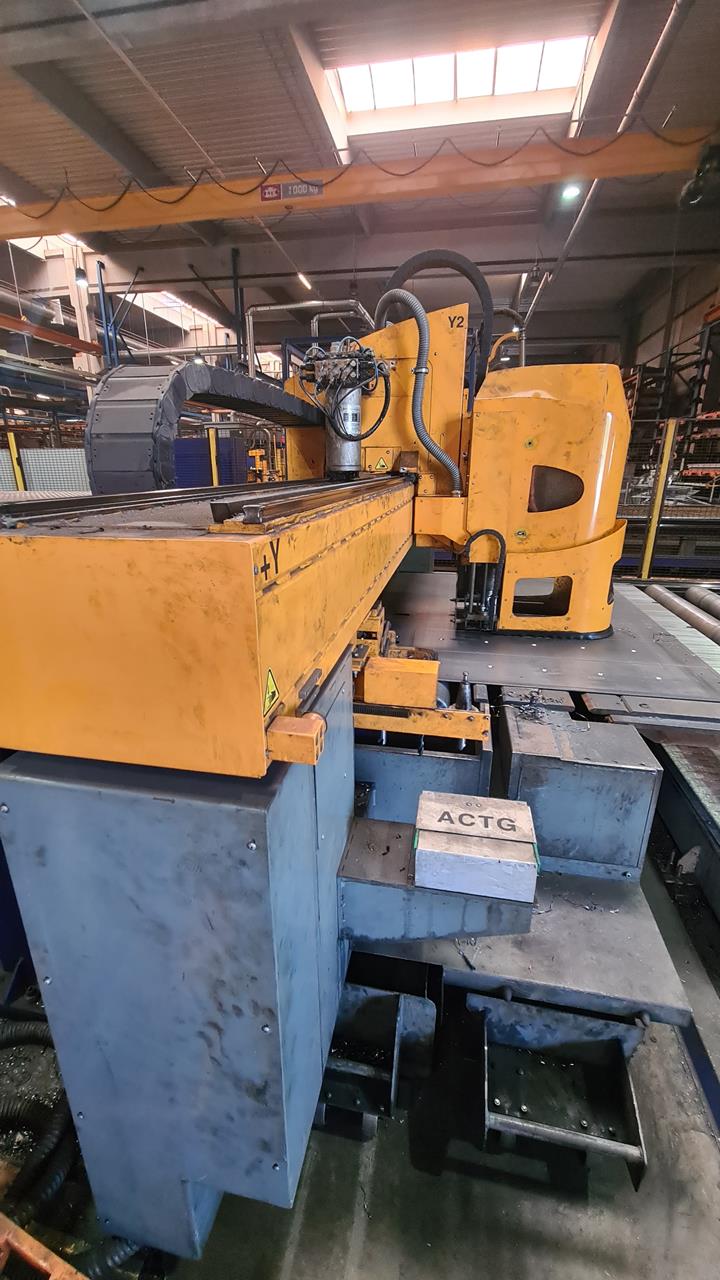

| Drilling unit Wittur DSF 4-19.3-20I.R3-GBL (26 kW) | |

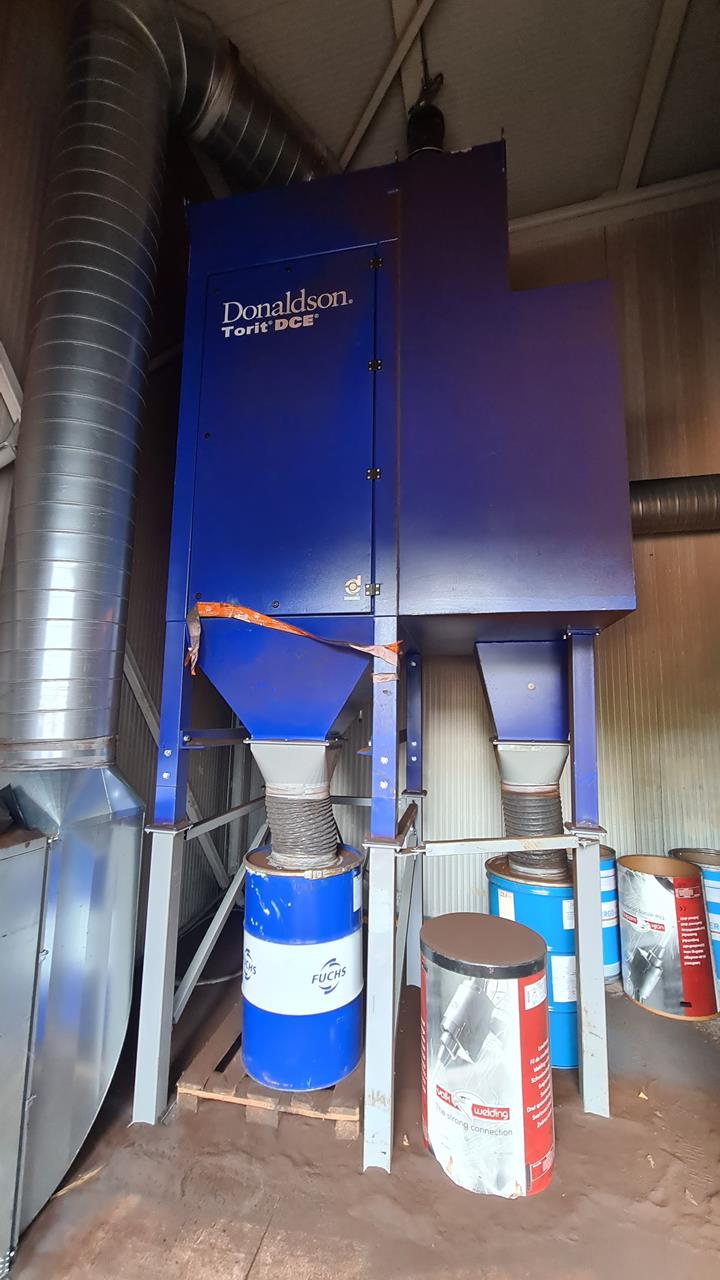

| Filtration DFPRO-8 ART501 (11kW) | |

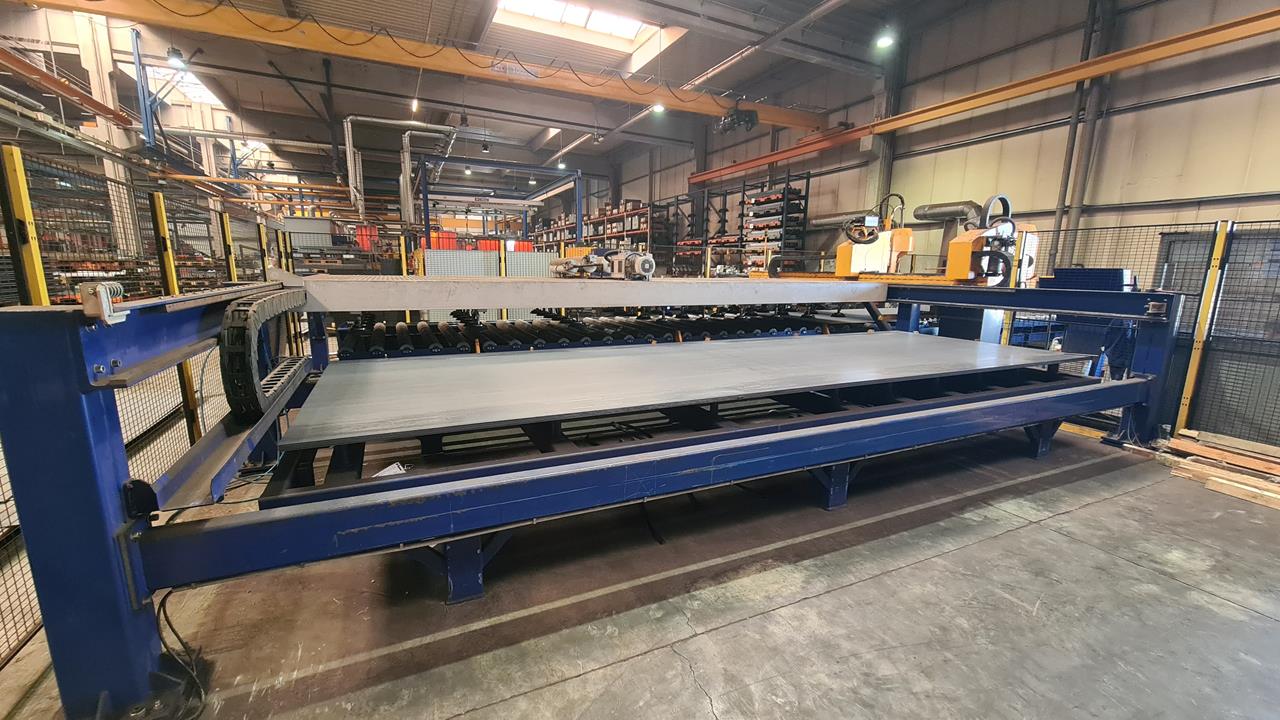

| Automatic loader with suction cups | |
| Positioning grippers on the X side | |

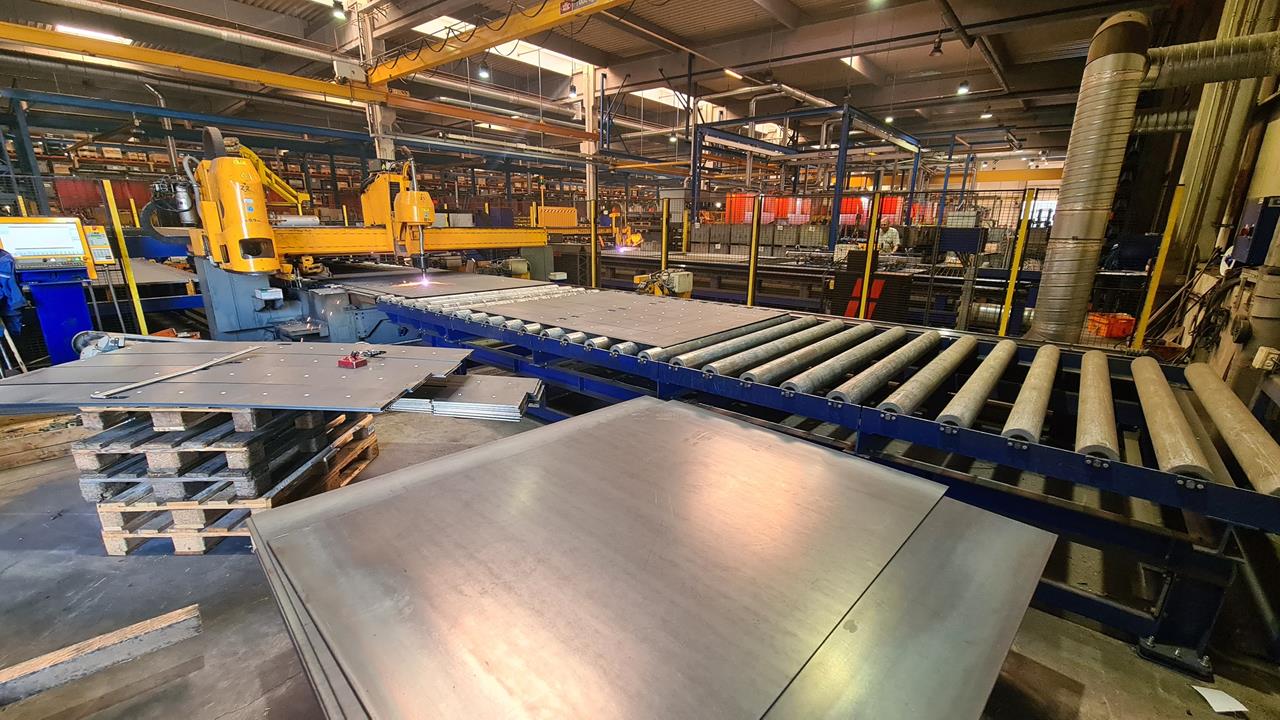

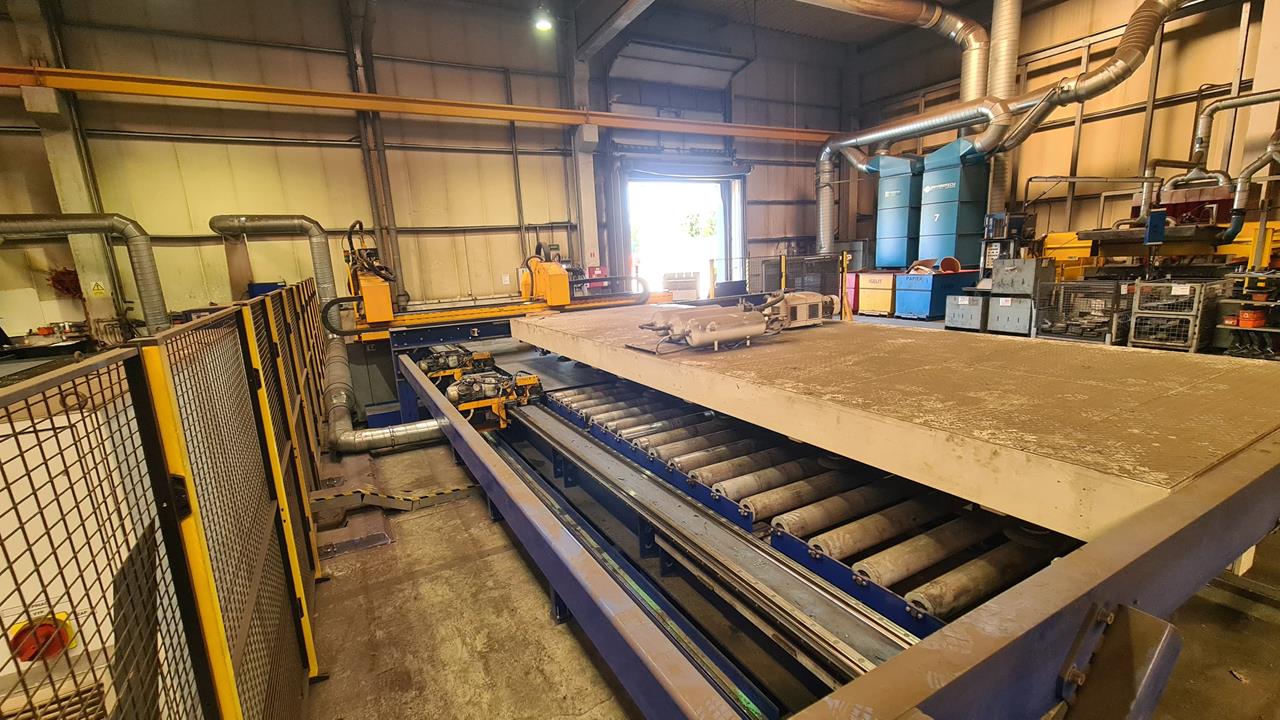

| Roller tracks at the inlet and outlet | |
| Conveyor at the outlet for small parts | |
| Automatic calibration of tool geometry for Rotator | |
| Auto calibration of drill bits | |
