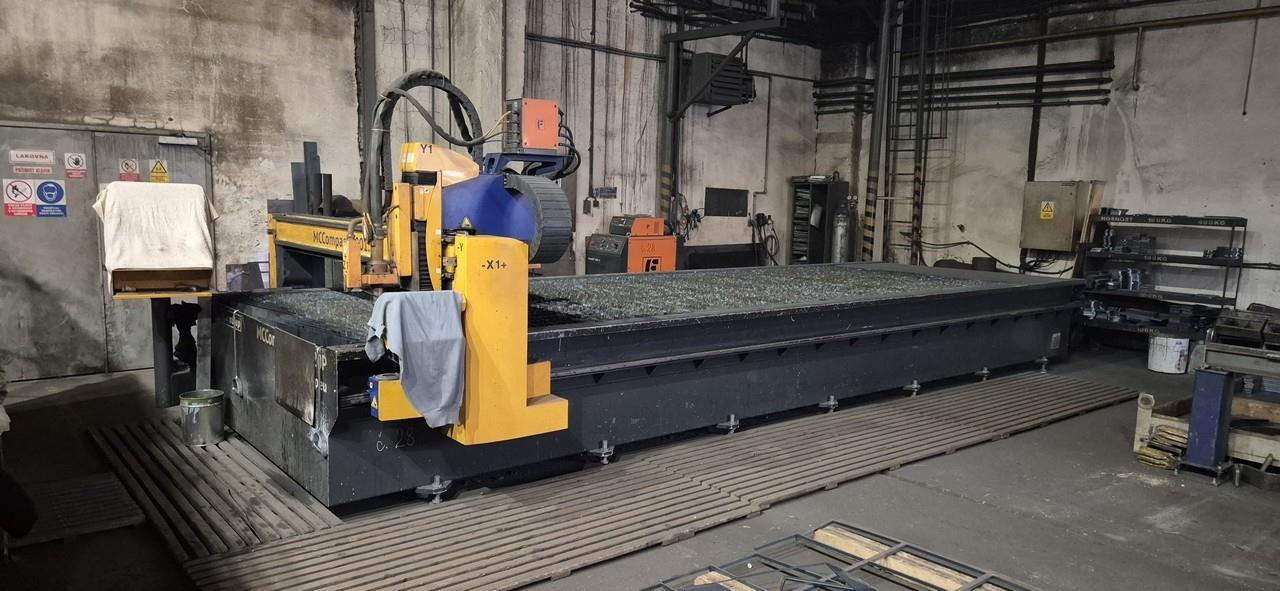

Plasma cutting machines MasterCut Compact 60
Plasma cutting machine
 Specifications |
|
| Catalog No. : | 8518 |
| Type: | MasterCut Compact 60 |
| Producer: | MicroStep |
| Made in: | 2017 |
| Characteristic: | |

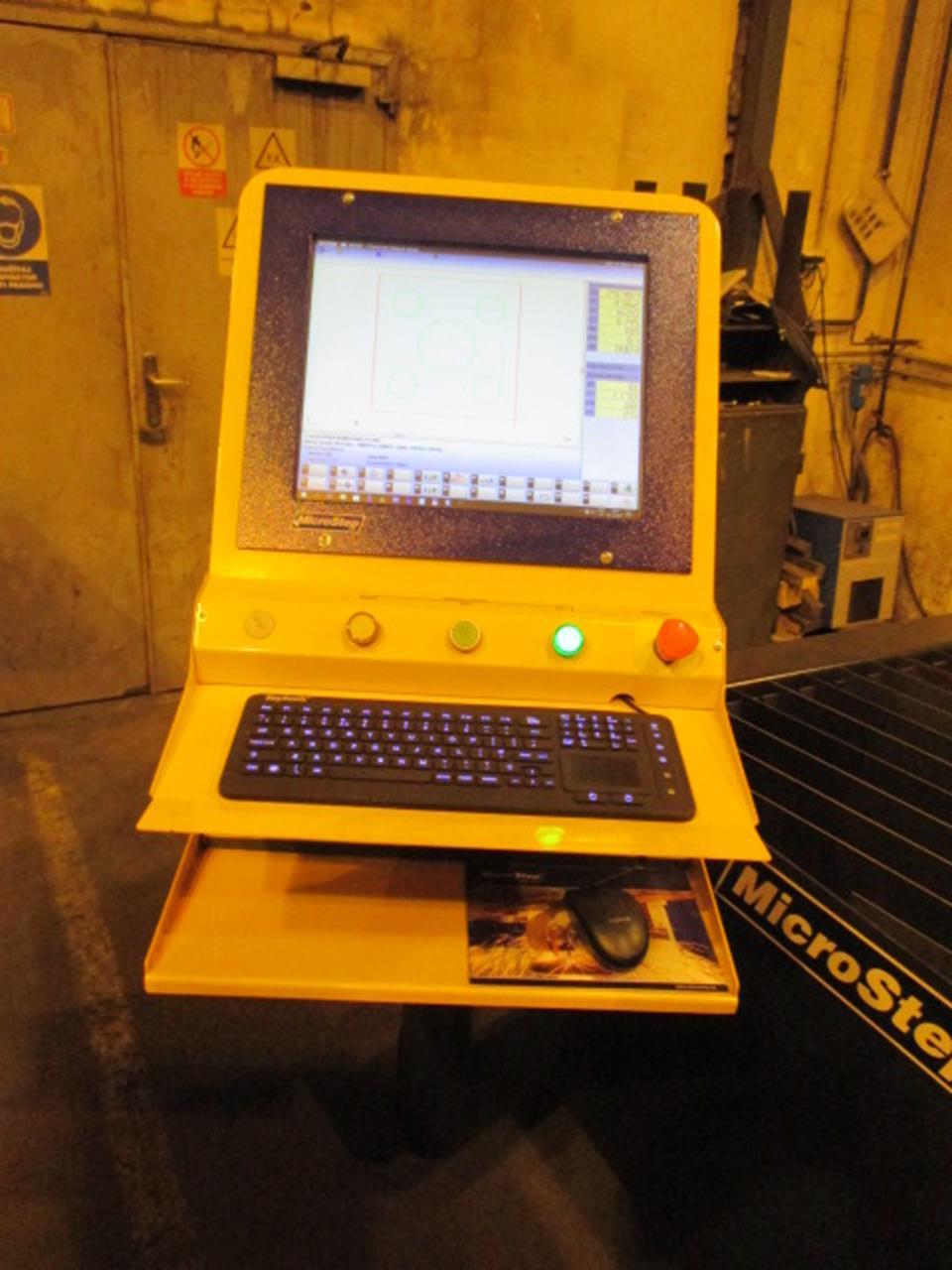

| Control system: iMSNC | |
| Software: AsperWin Basic (2017) | |
| Total hours: 17000 h | |
| Hours on: 8800 h | |
| Length of the working table: 6000 mm | |
| Width of the working table: 2000 mm | |
| Maximum thickness of the cut sheet metal: 25 mm | |
| Maximum thickness of the cut sheet metal (Stainless Steel): 25 mm | |
| Maximum thickness of the cut sheet metal (Aluminum): 20 mm | |

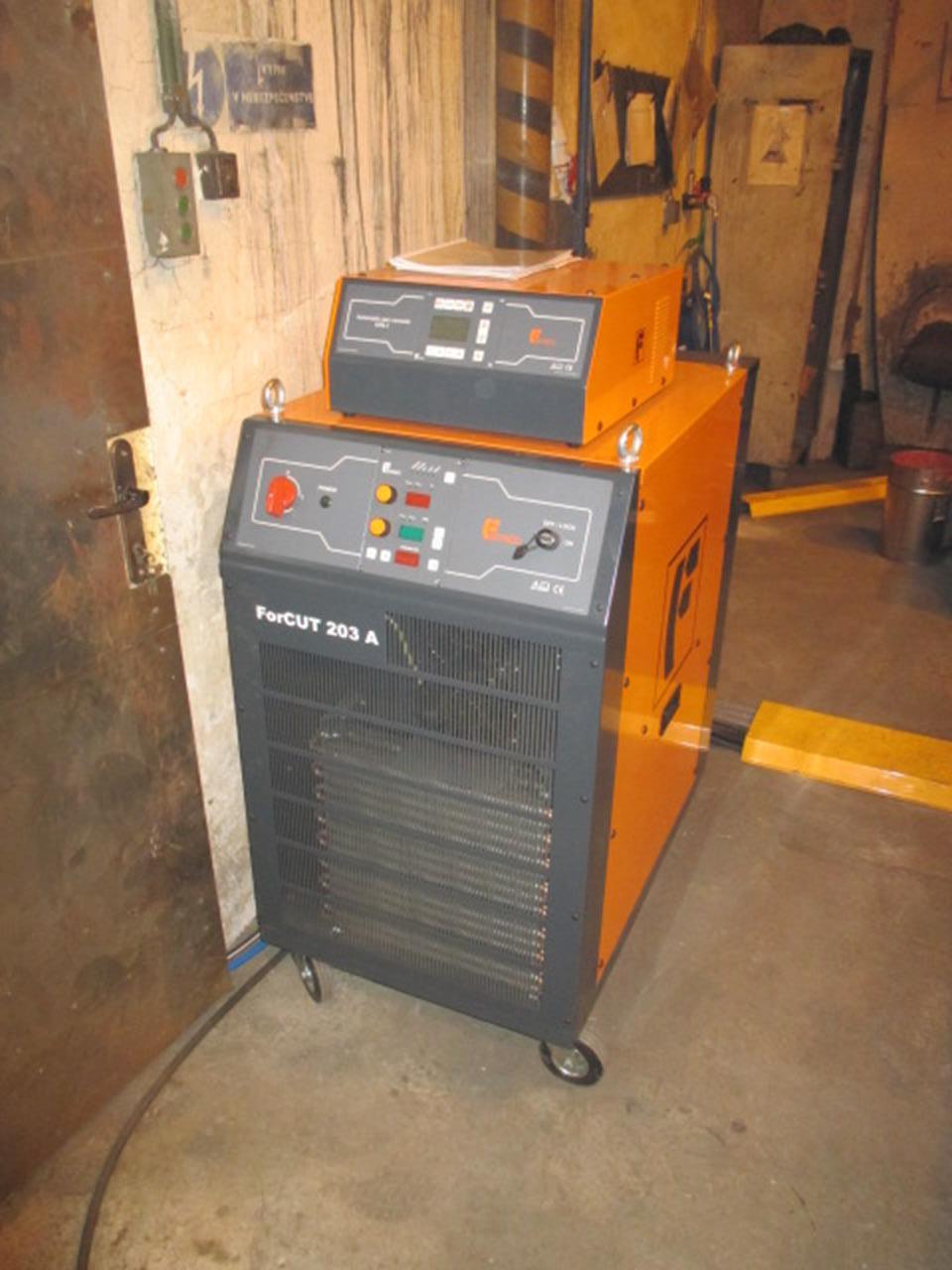

| Plasma source: Formica ForCut 203A KPA | |
| Machine height: 2030 mm | |
| Machine length: 8100 mm | |
| Machine width: 2800 mm | |
| Machine weight: 5140 kg | |
| Equipment: | |
| Technical books | |
Gallery
