Boring/ Drilling W 200 HB

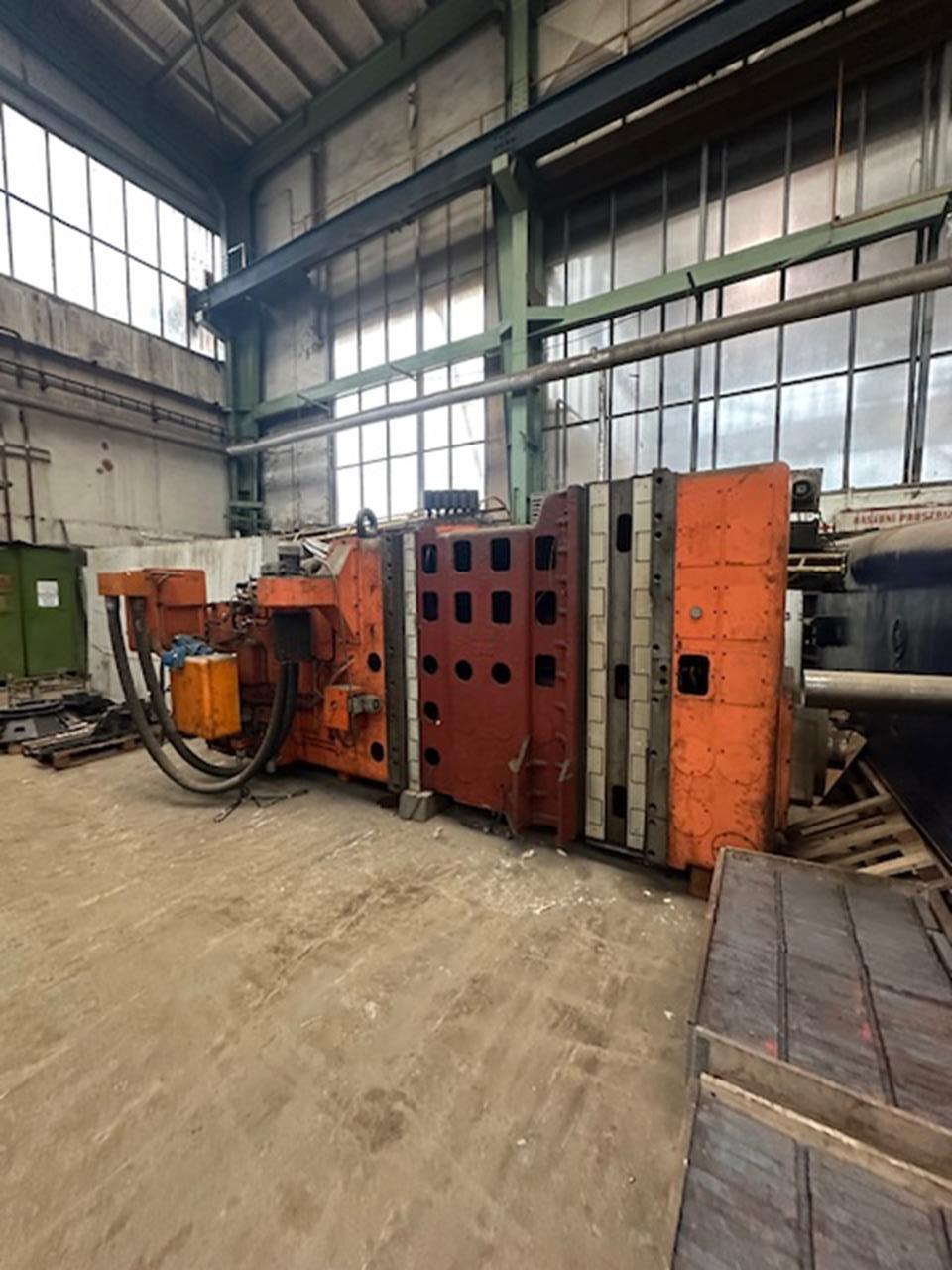

Floor boring machine
 Specifications |
|
| Catalog No. : | 5936 |
| Type: | W 200 HB |
| Producer: | ŠKODA |
| Made in: | 1986 |
| Characteristic: | |
| Control system: HEIDENHAIN 530 | |
| Minimum rotary speed of the spindle: 0.8 1/min | |
| Maximum rotary speed of the spindle: 630 1/min | |
| X-Axis travels: 16200 mm | |
| Y-Axis travels: 5250 mm | |
| Z-Axis travels: 1600 mm | |
| Taper: ISO 60 | |
| Spindle diameter: 200 mm | |
| Machine height: 8000 mm | |
| Machine length: 20000 mm | |
| Machine width: 10000 mm | |
| Equipment: | |
| Chip convoyer | |
| Rotary table 3500x4000 mm | |
| 2008: renovation (new control. wiring and drives) | |
