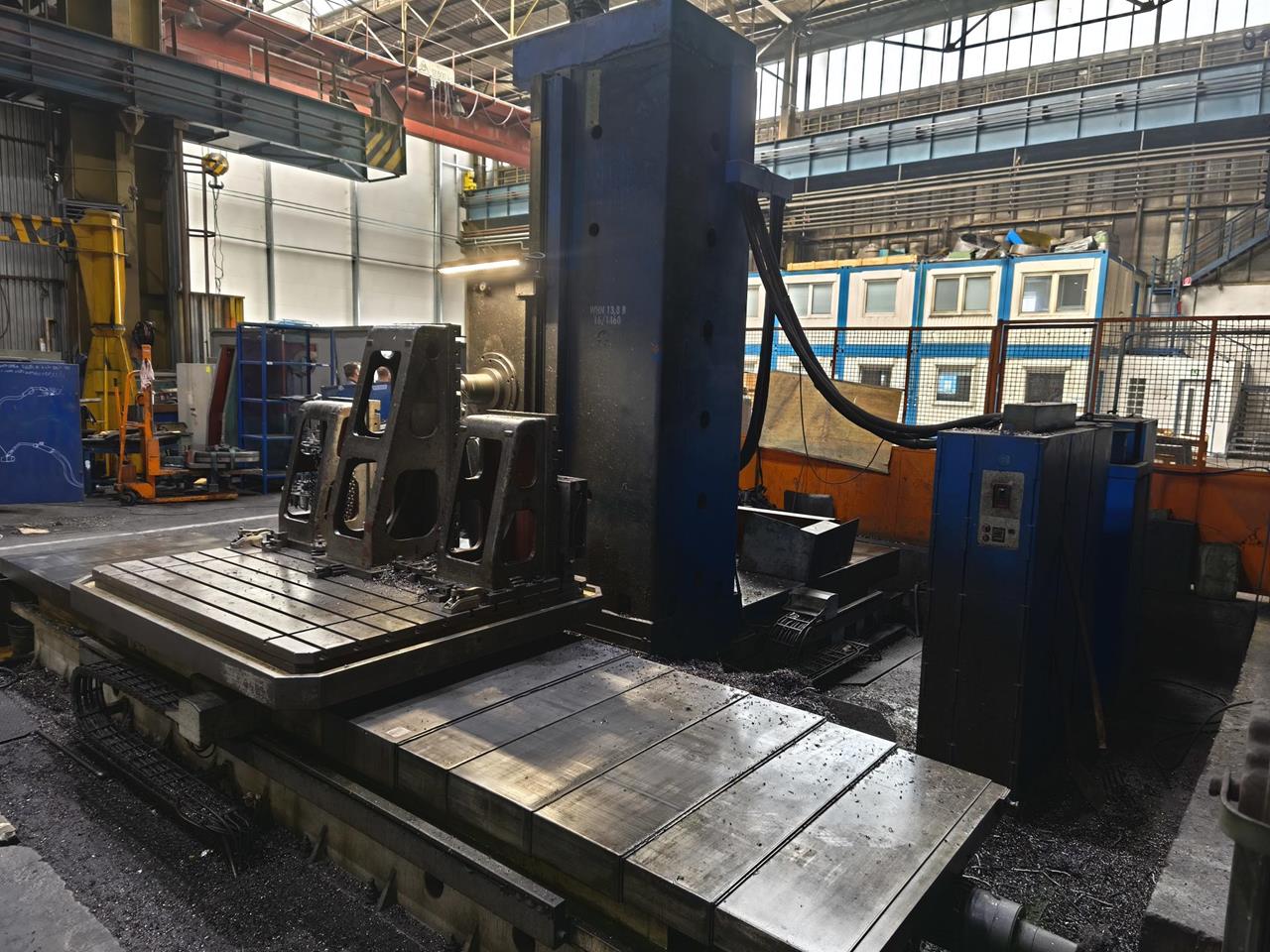

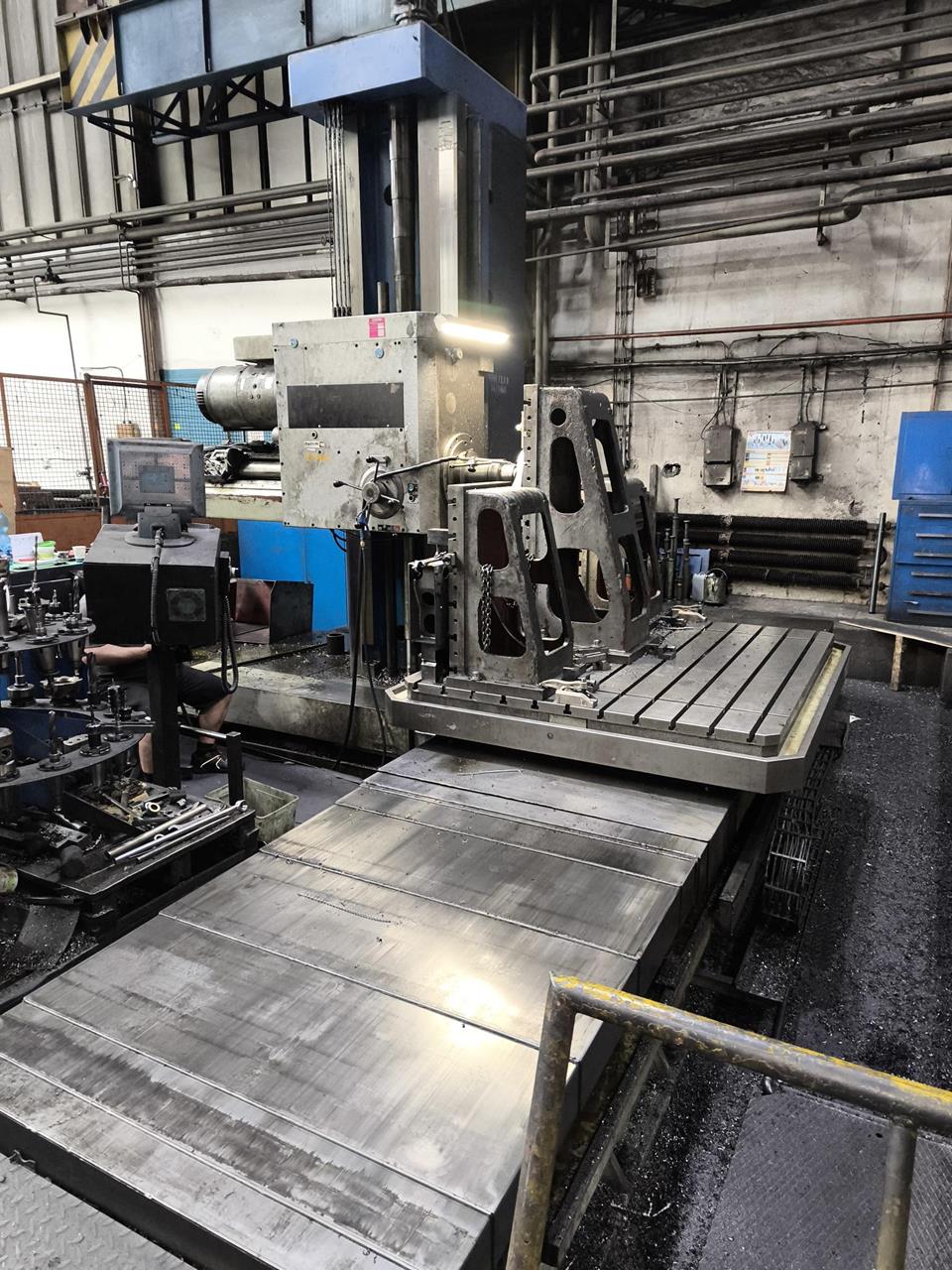

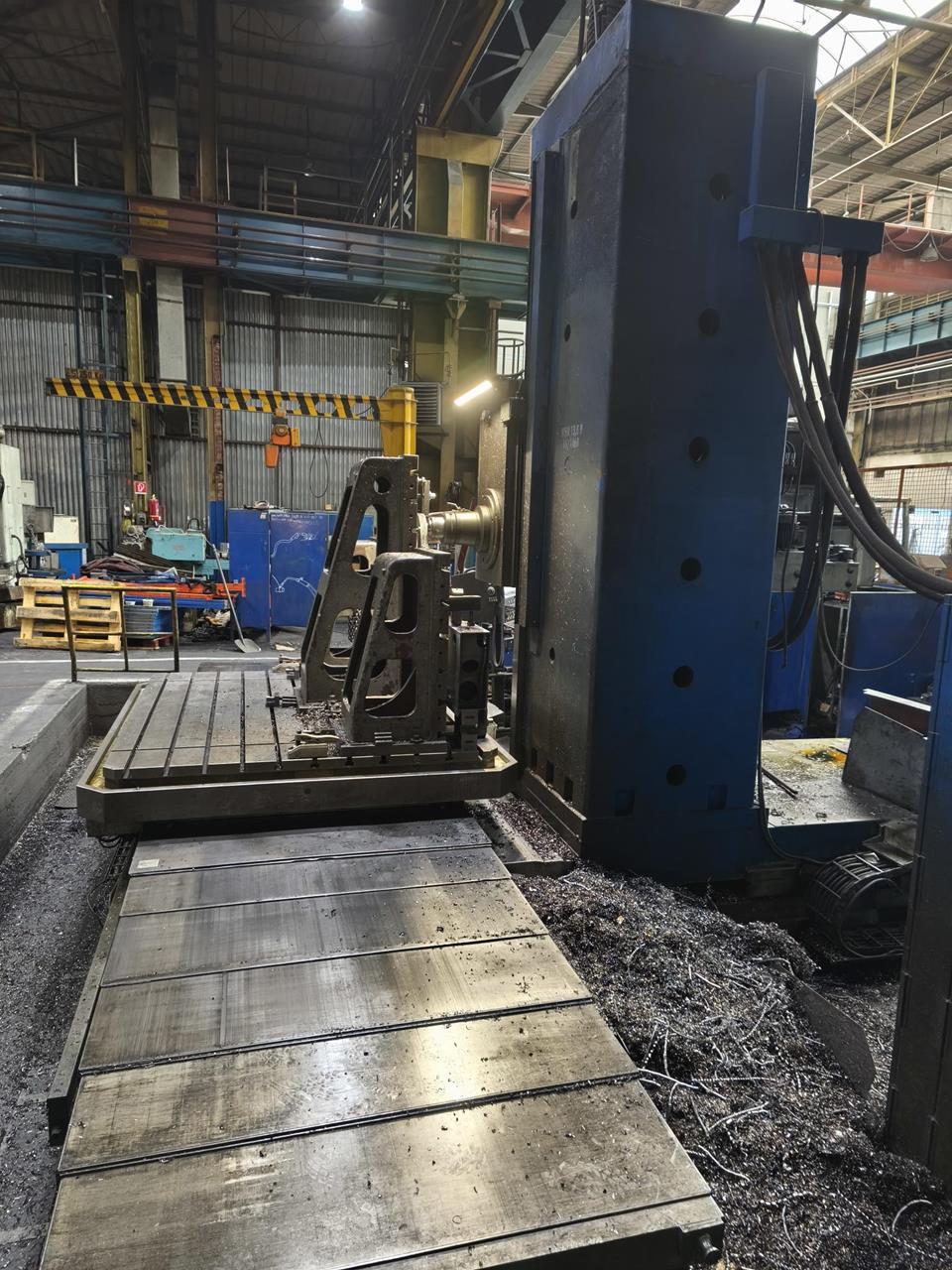

Boring/ Drilling WHN 13.8 B
Table Boring Machine
 Specifications |
|
| Catalog No. : | 8676 |
| Type: | WHN 13.8 B |
| Producer: | TOS |
| Made in: | 1987 |
| Characteristic: | |
| Control system: MEFI CNC 846 | |
| Length of the working table: 1800 mm | |
| Width of the working table: 1800 mm | |
| Maximum weight of the grinded workpiece: 12000 kg | |
| X-Axis travels: 3500 mm | |
| Y-Axis travels: 2000 mm | |
| Z-Axis travels: 1250 mm | |
| Spindle diameter: 130 mm | |
| Machine height: 7200 mm | |
| Machine length: 7800 mm | |
| Machine width: 4900 mm | |
| Machine weight: 36000 kg | |
| The machine is after partial GO (reground turret bed for headstock). | |
