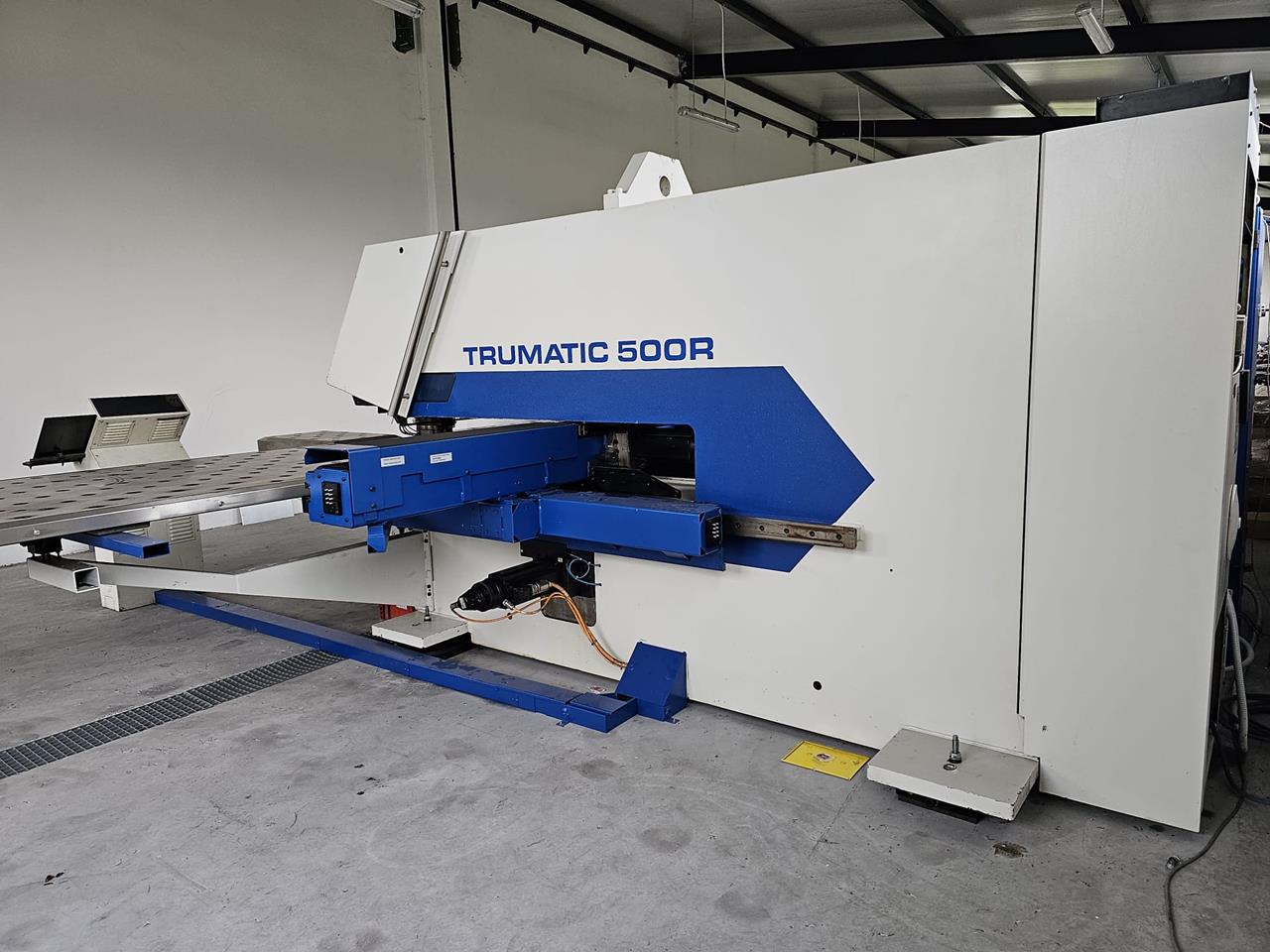

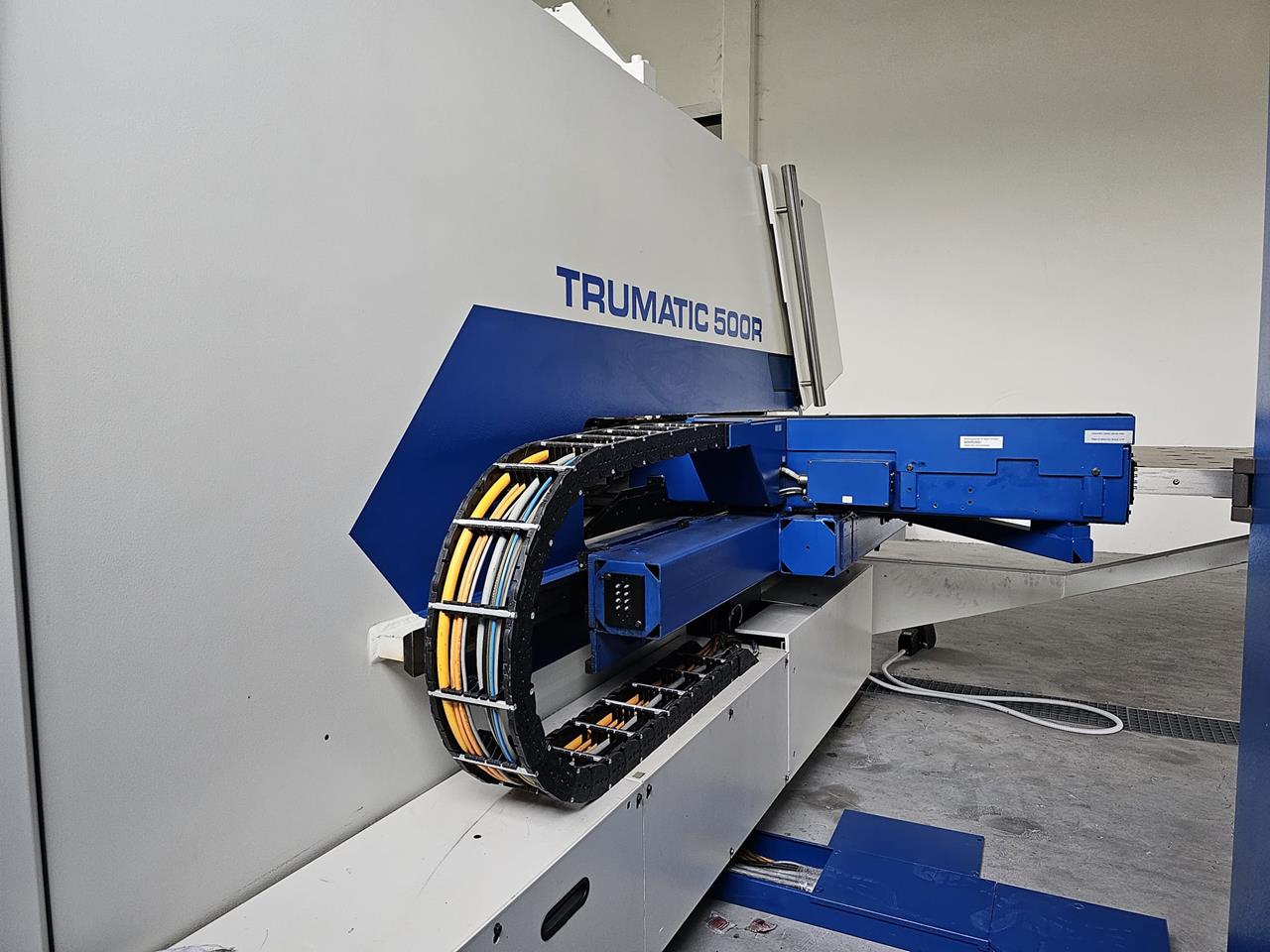

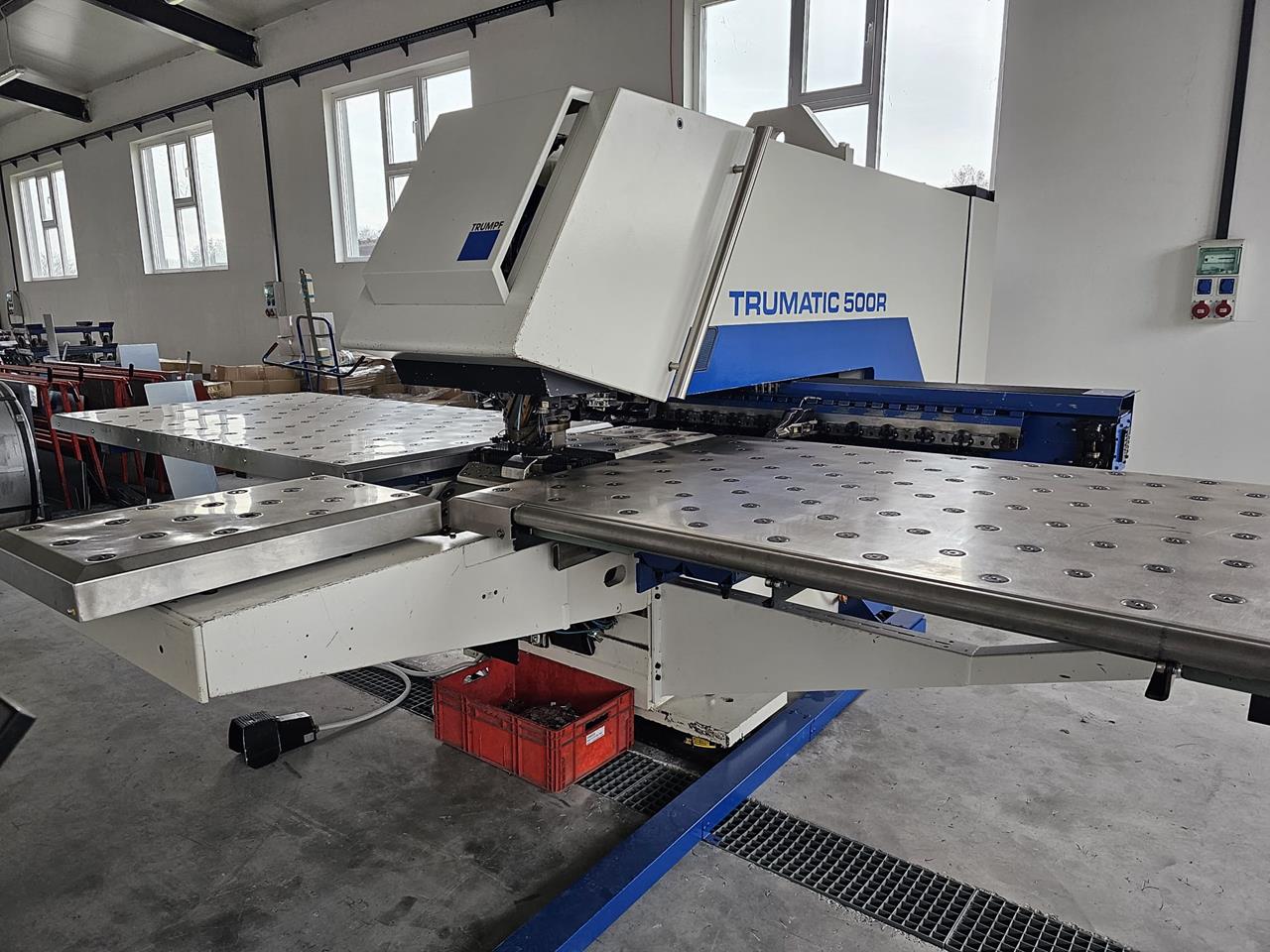

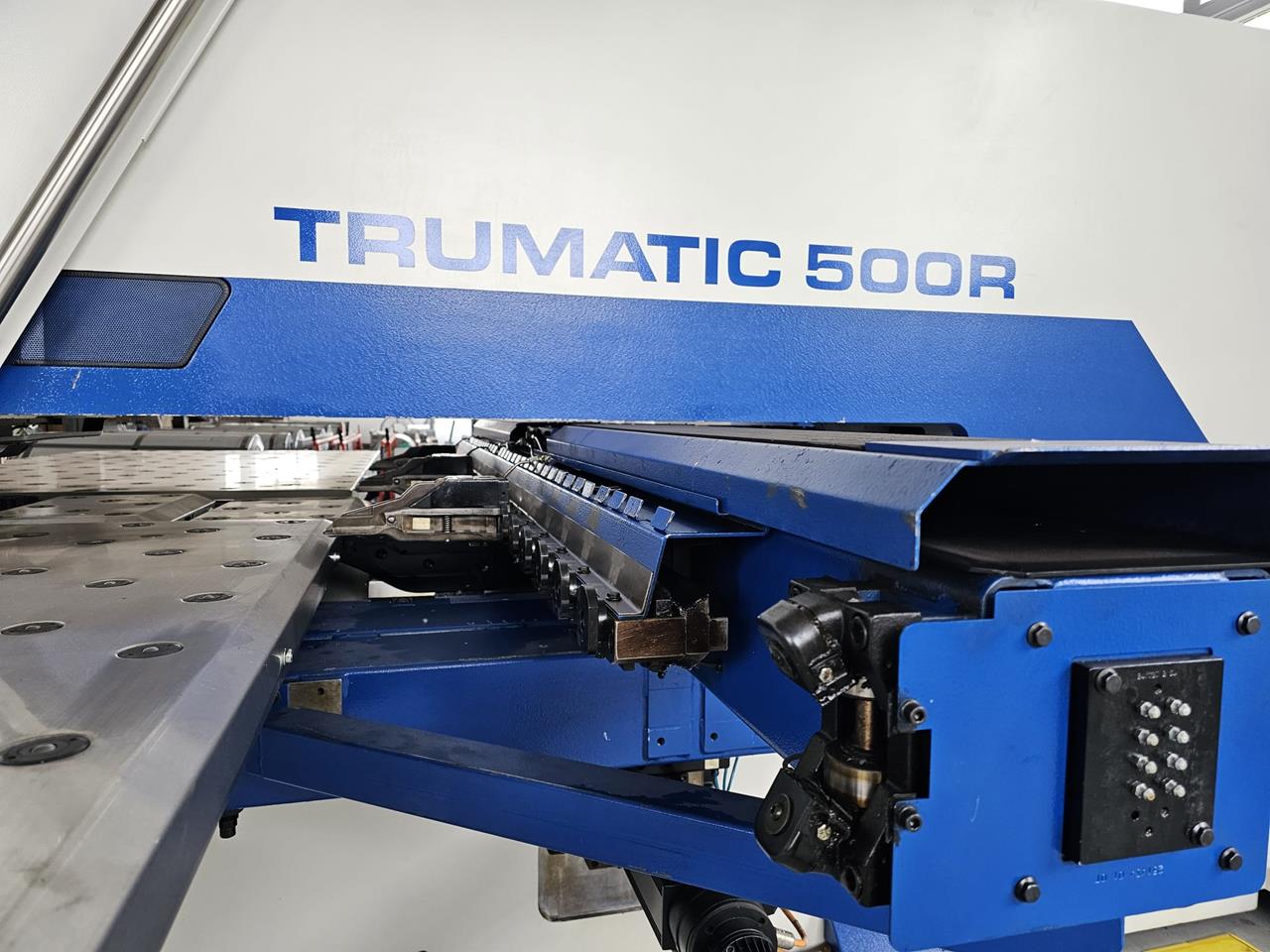

Punching machines Trumatic 500 R
Punching Press
 Specifications |
|
| Catalog No. : | 5955 |
| Type: | Trumatic 500 R |
| Producer: | Trumpf |
| Made in: | 2004 |
| Characteristic: | |

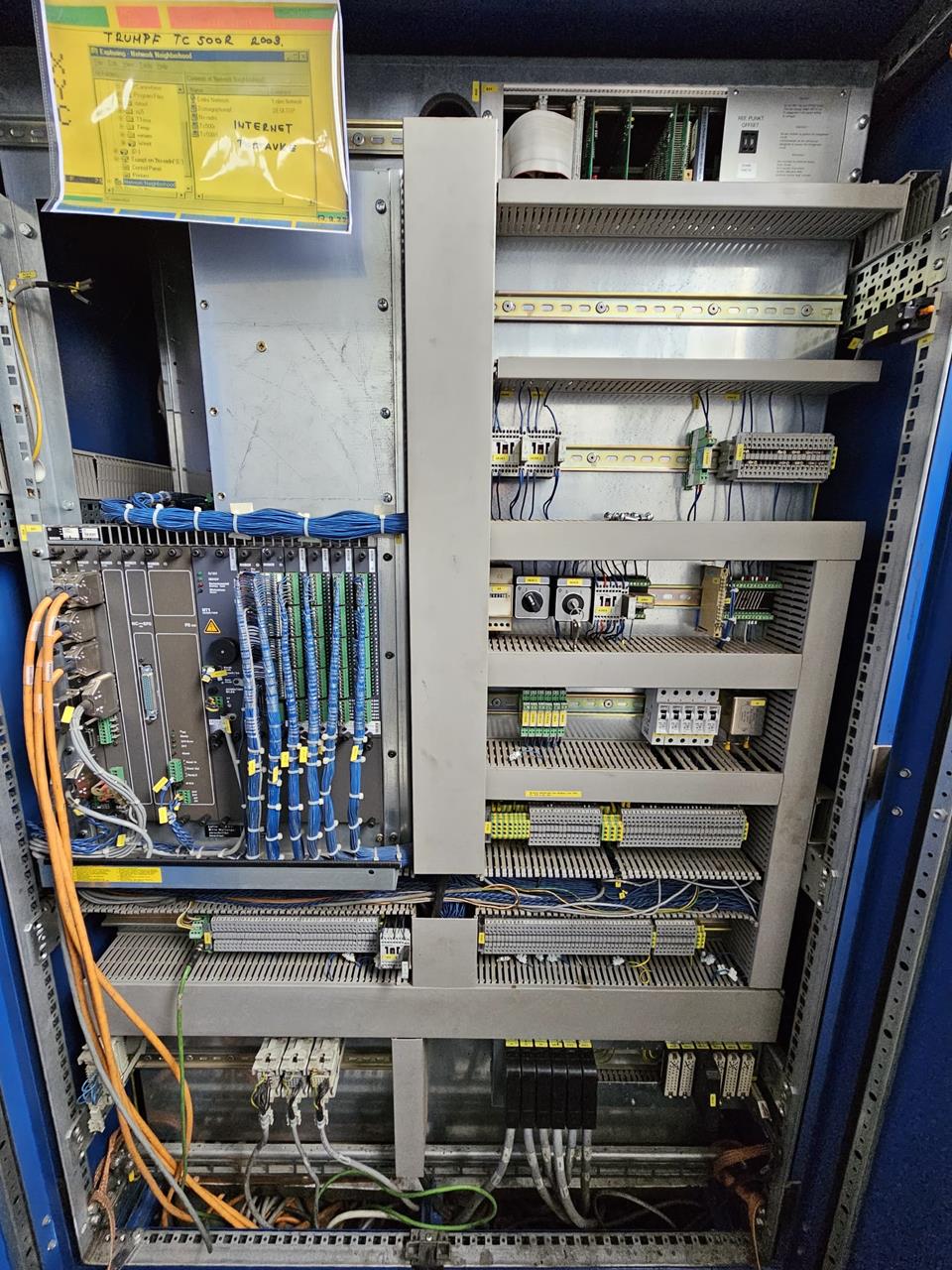

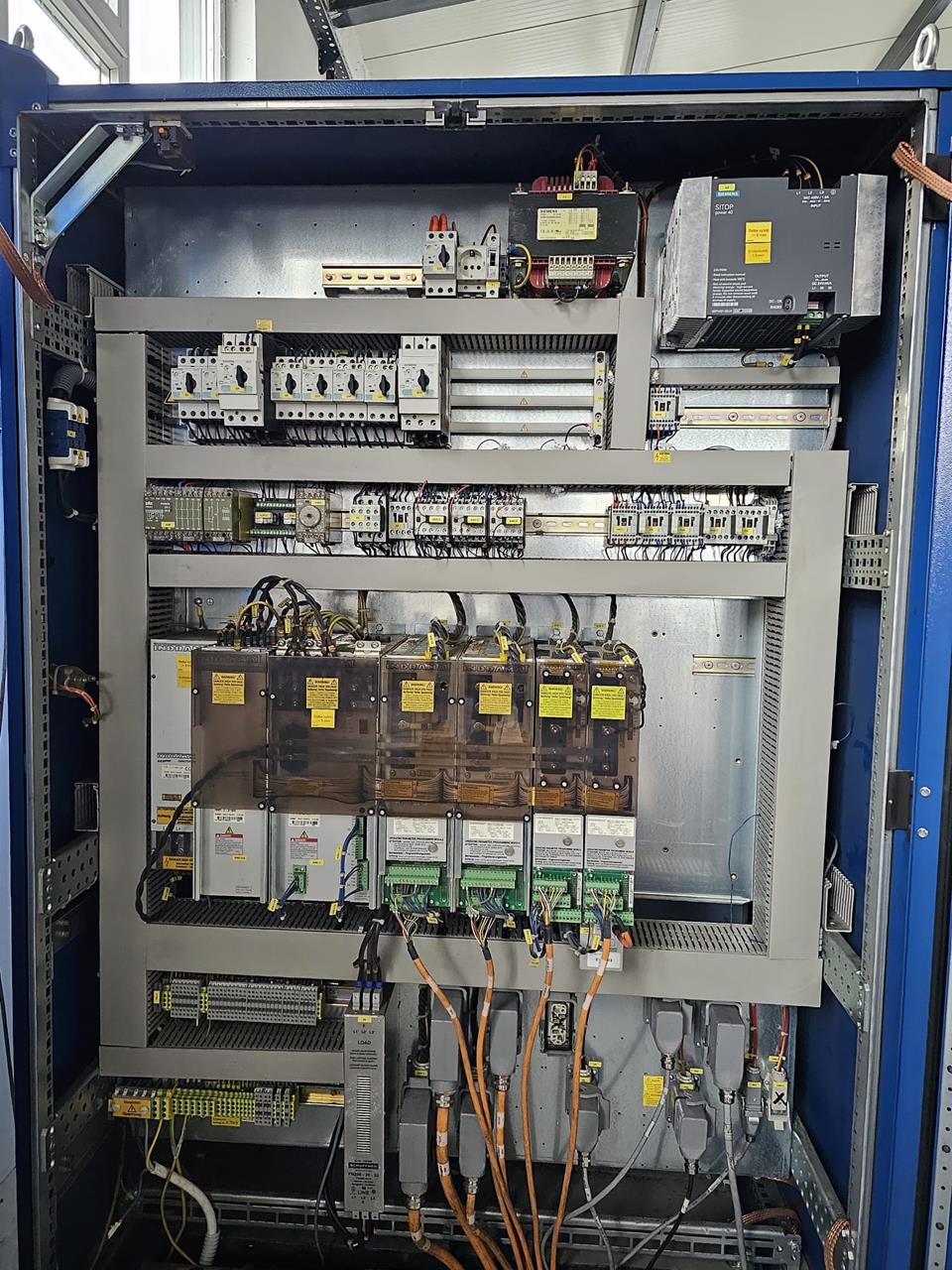

| Control system: TRUMAGRAPH CC 220 S | |

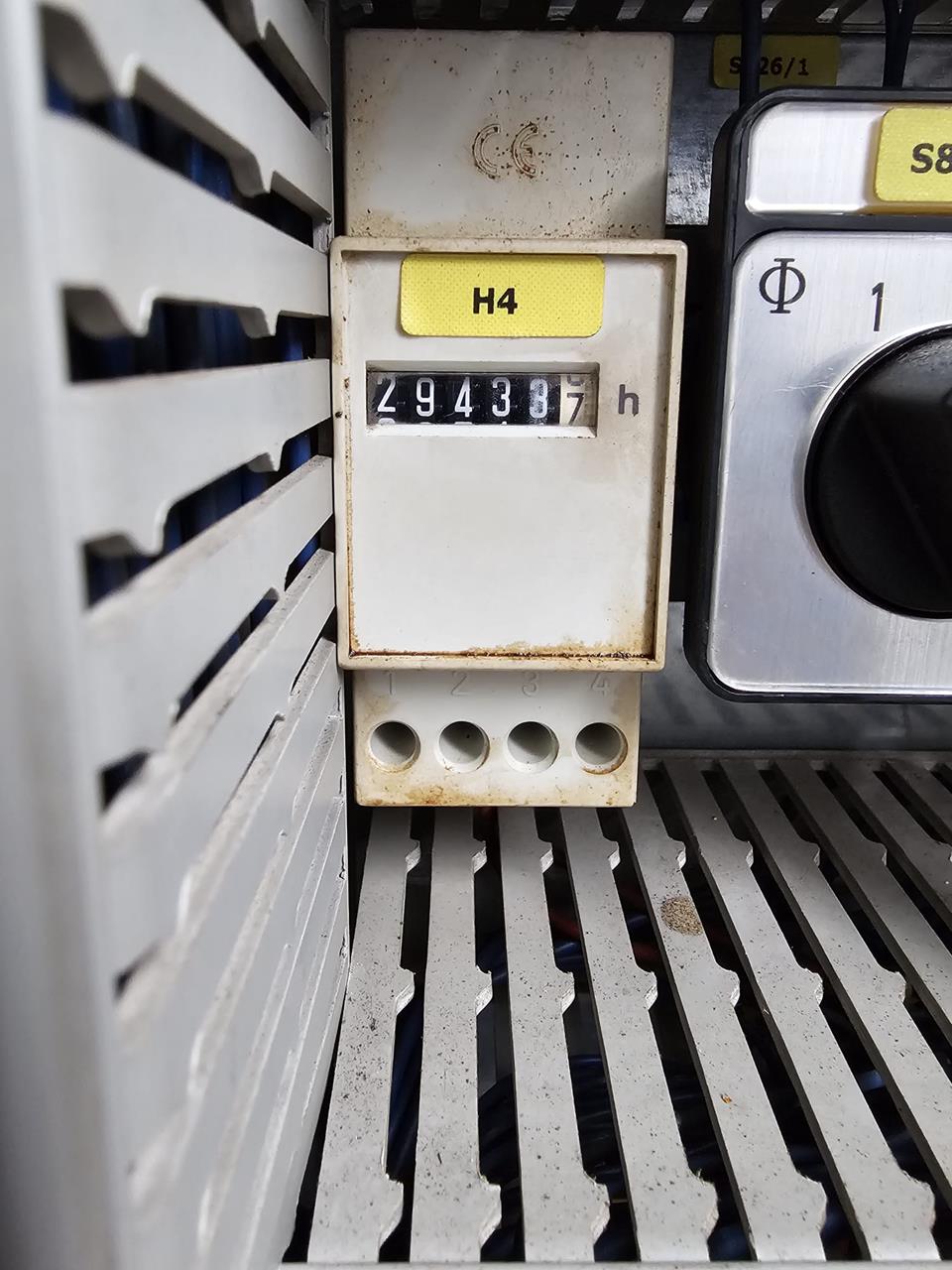

| Total hours: 29276 h | |
| Pressing force: 22 t | |
| Table length: 2535 mm | |
| Table width: 1280 mm | |
| Maximum thickness of the sheet metal: 8 mm | |
| Maximum table load (evenly distributed): 200 kg | |
| Maximum punching speed: 900 1/min | |
| Maximum marking speed: 1700 1/min | |
| Number of tools in the magazine: 18 pcs | |
| Tool change time: 1.5-5 s | |
| Maximum feed rate in X-axis: 90 m/min | |
| Maximum feed rate in Y-axis: 60 m/min | |
| Maximum diameter of the punched hole: 76.2 mm | |
| Machine height: 2200 mm | |
| Machine length: 6900 mm | |
| Machine width: 5800 mm | |
| Machine weight: 11000 kg | |
| 2020: replacement of hydraulic hoses | |
