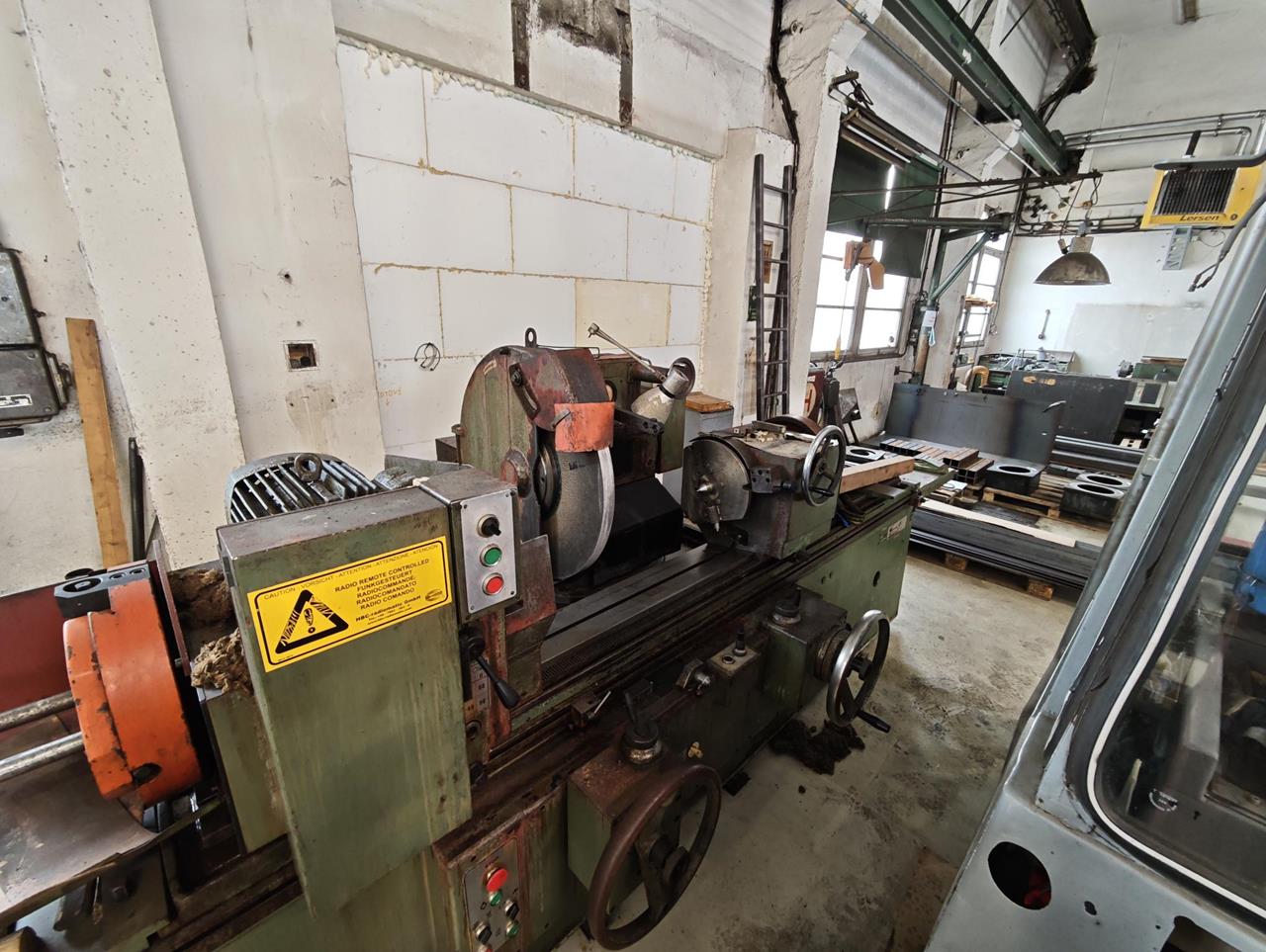

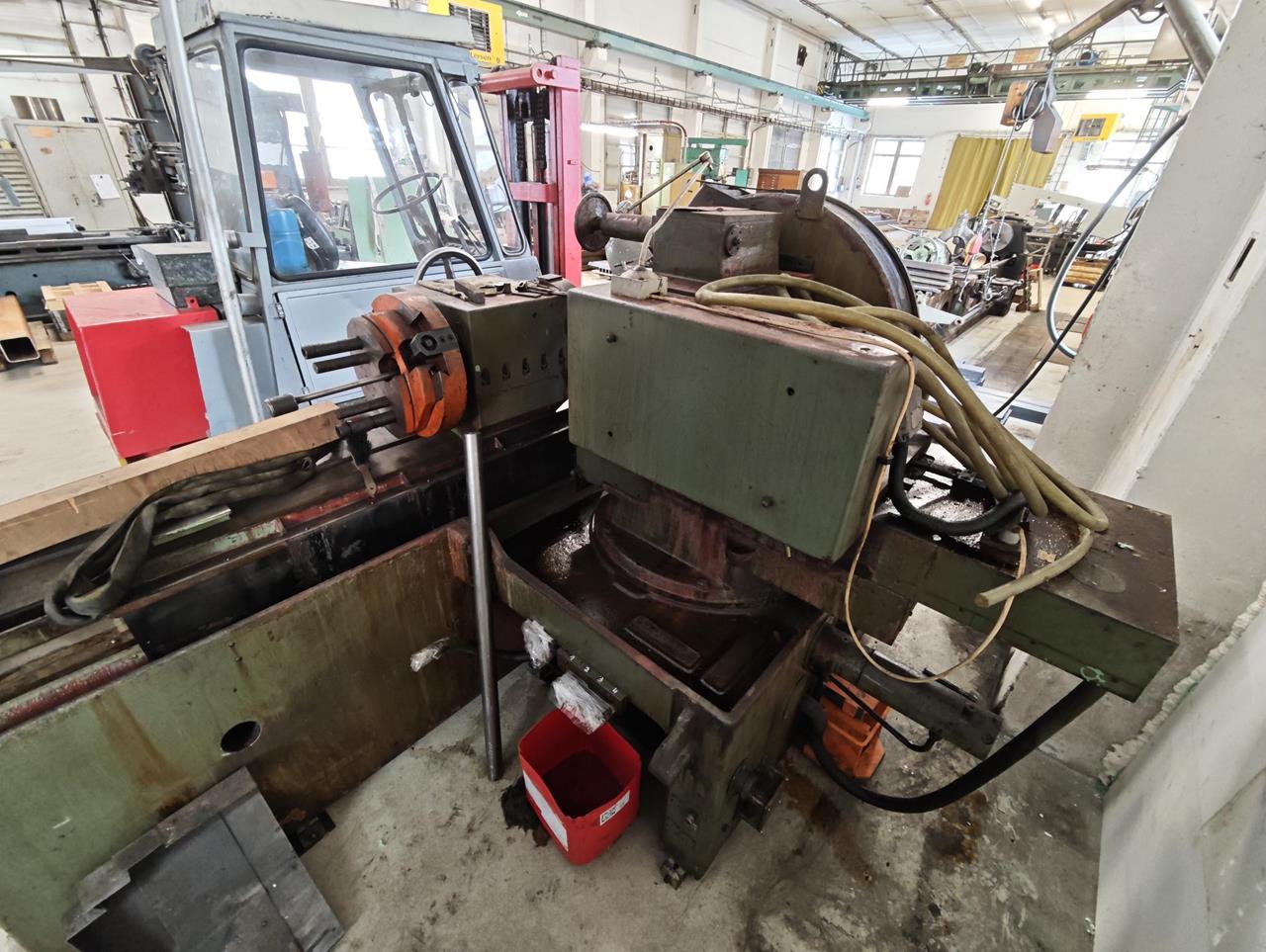

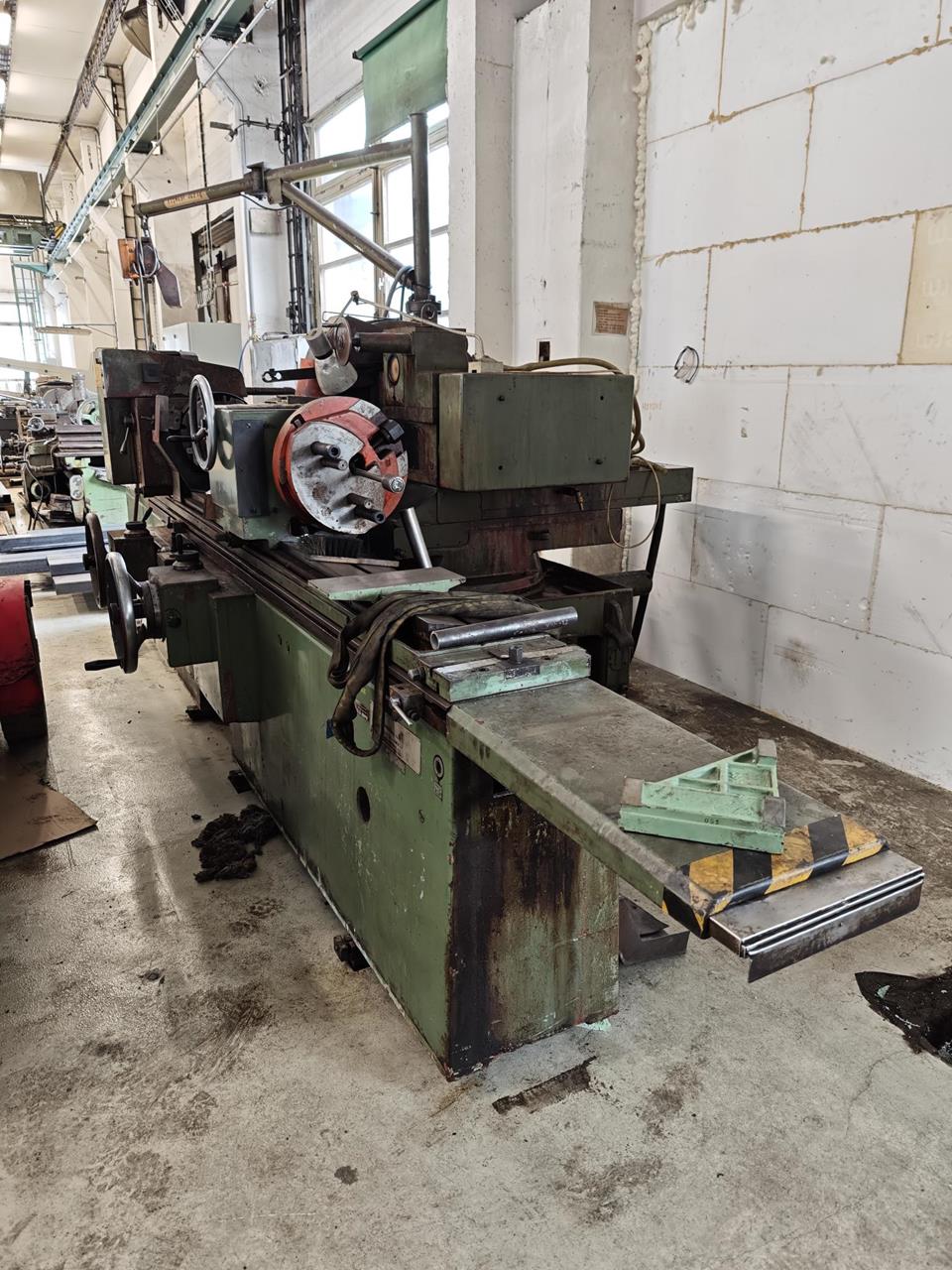

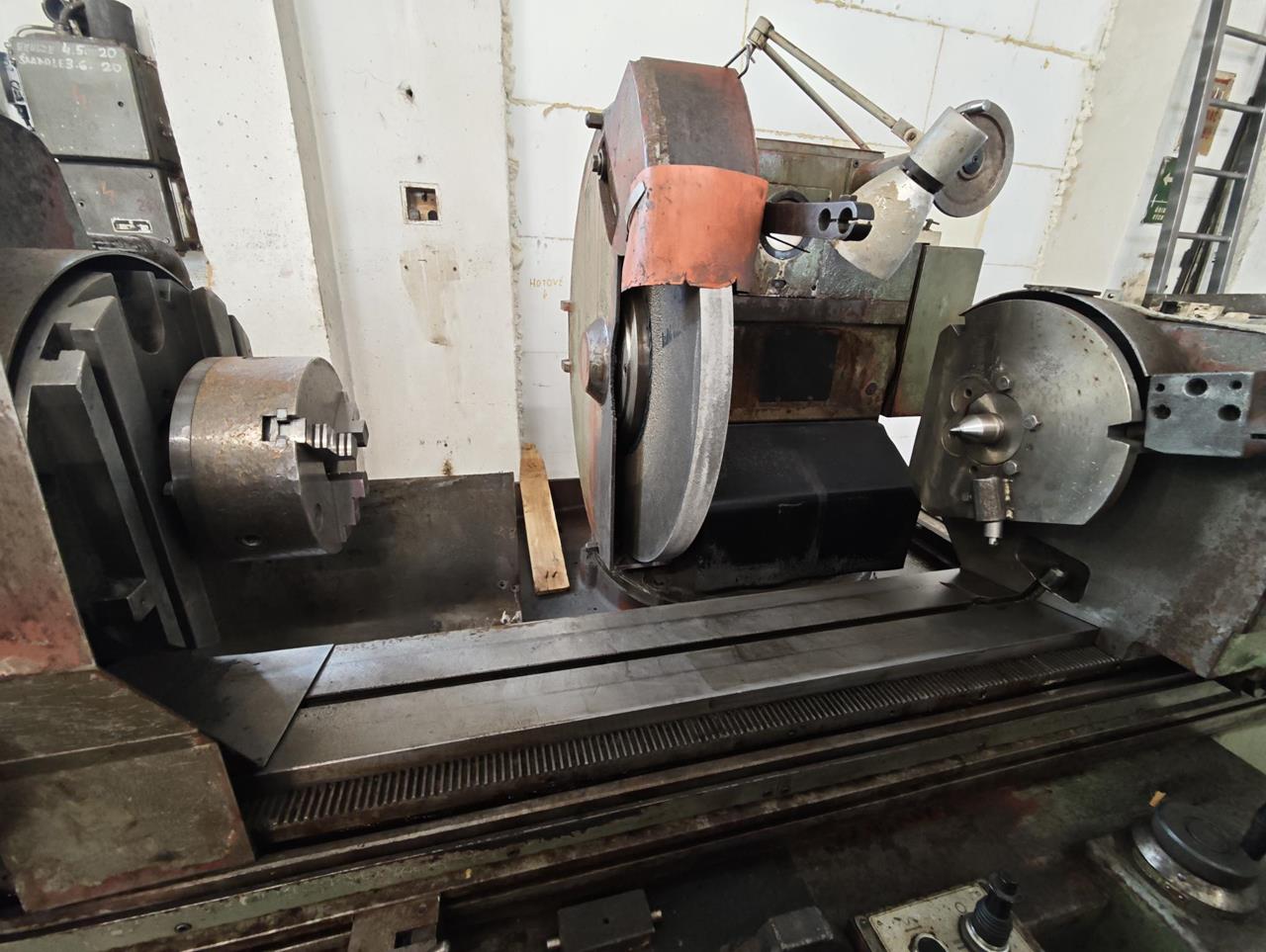

BKO 50/1700
Crankshaft grinding machine
 Specifications |
|
| Catalog No. : | 8981 |
| Type: | BKO 50/1700 |
| Producer: | TOS |
| Made in: | 1997 |
| Characteristic: | |
| Swing diameter: 500 mm Distance between centers: 1400 (1900) mm Distance between chucks: 1200 (1700) mm Max. crankpin eccentricity: 130 mm Grinding wheel: 900 x 32 x 305 mm Max. wheel width: 50 mm Max. weight of crankshaft workpiece: 120 kg Max. weight of workpiece mounted between centers: 250 kg Machine weight approx.: 7200 kg Grinding spindle speed: 700. 804 rpm Rapid movement of grinding headstock: 110 mm Cross adjustment of grinding headstock: 420 mm Feed of grinding headstock per one turn of handwheel coarse: 4 mm fine: 0.08 mm Swing diameter in open steady rest: 25–100 mm Grinding headstock motor power: 7.5 kW Total machine power input: 17 kVA | |
