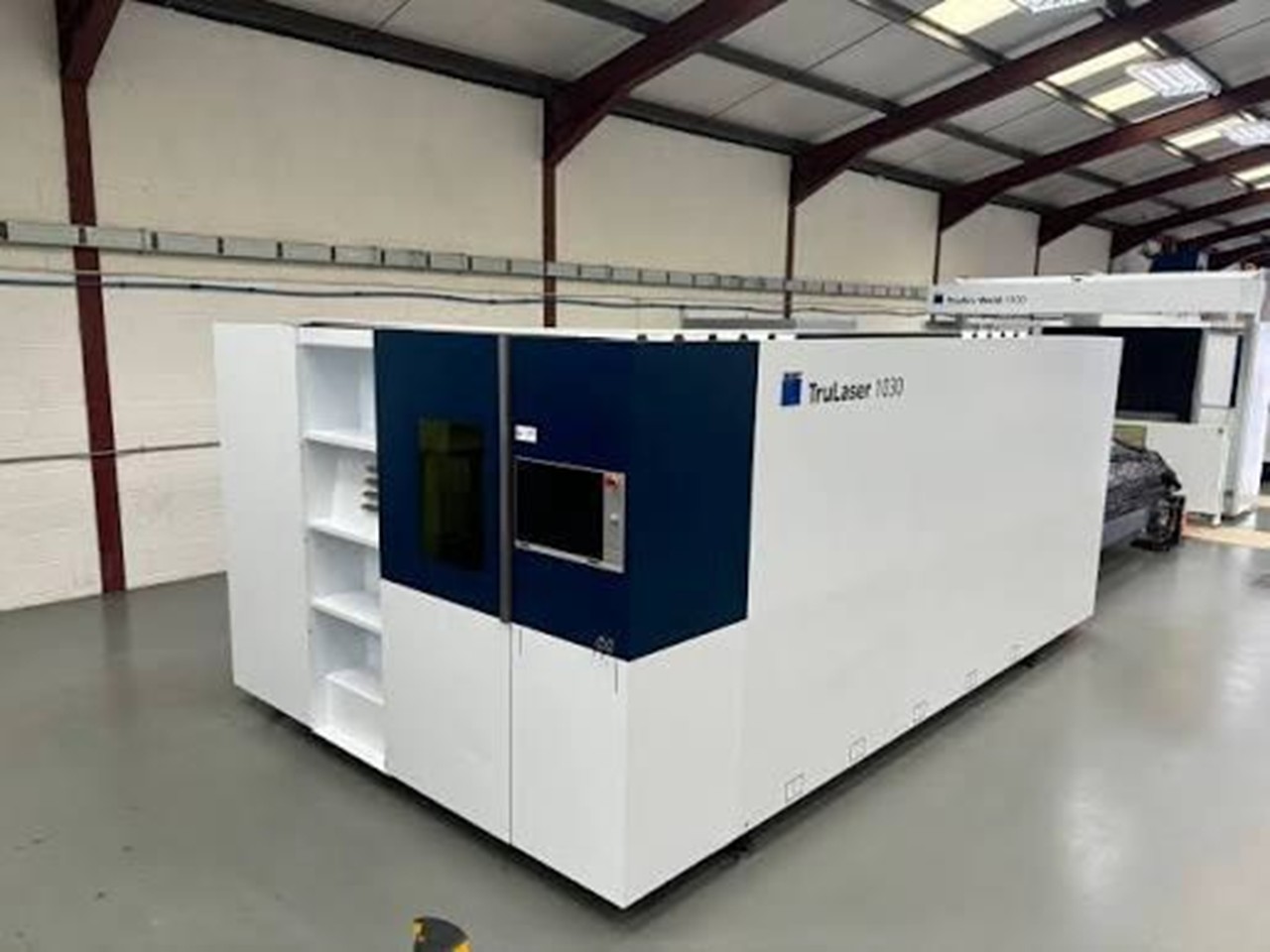

TruLaser 1030
Fiber laser
 Specifications |
|
| Catalog No. : | 9234 |
| Type: | TruLaser 1030 |
| Producer: | Trumpf |
| Made in: | 2024 |
| Characteristic: | |
| Control system: SINUMERIK 840D SL | |
| Maximum power: 10 kW | |
| Length of the working table: 3000 mm | |
| Width of the working table: 1500 mm | |
| Maximum thickness of the cut sheet metal (Stainless Steel): 40 mm | |
| Maximum thickness of the cut sheet metal (Aluminum): 30 mm | |
| Maximum sheet metal cutting thickness (steel): 35 mm | |
| Maximum sheet metal cutting thickness (copper/brass): 12 mm | |
| Travel length Z-axis: 115 mm | |
| Source: TruDisk 10 000 W | |
| Machine height: 2200 mm | |
| Machine length: 9300 mm | |
| Machine width: 4700 mm | |
| Machine weight: 5500 kg | |
| Equipment: | |
| Cross and longitudinal conveyor | |
| Pallet changer | |
