H 63

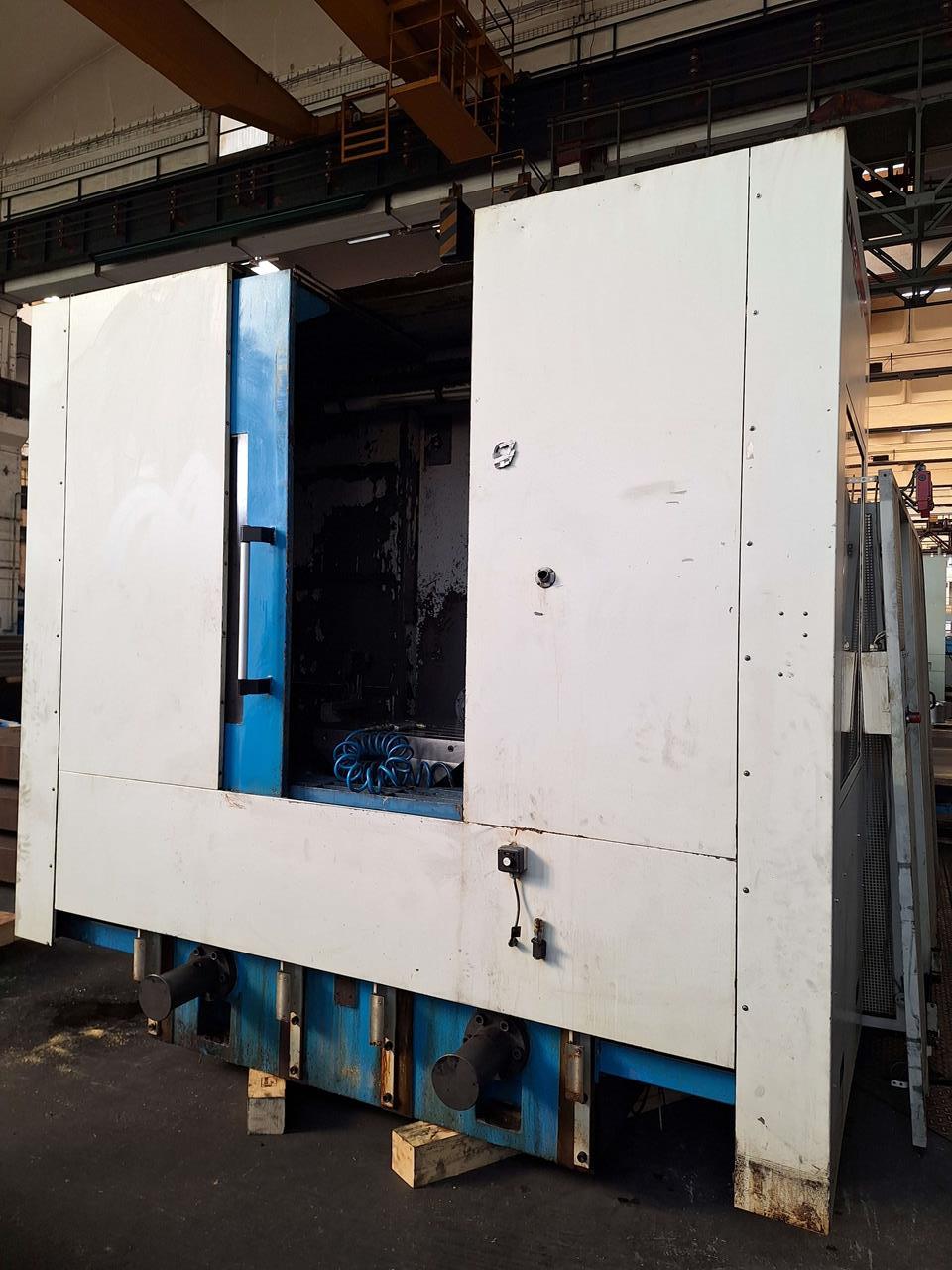

Machining center (horizontal)
 Specifications |
|
| Catalog No. : | 9023 |
| Type: | H 63 |
| Producer: | ZPS |
| Made in: | 2008 |
| Characteristic: | |

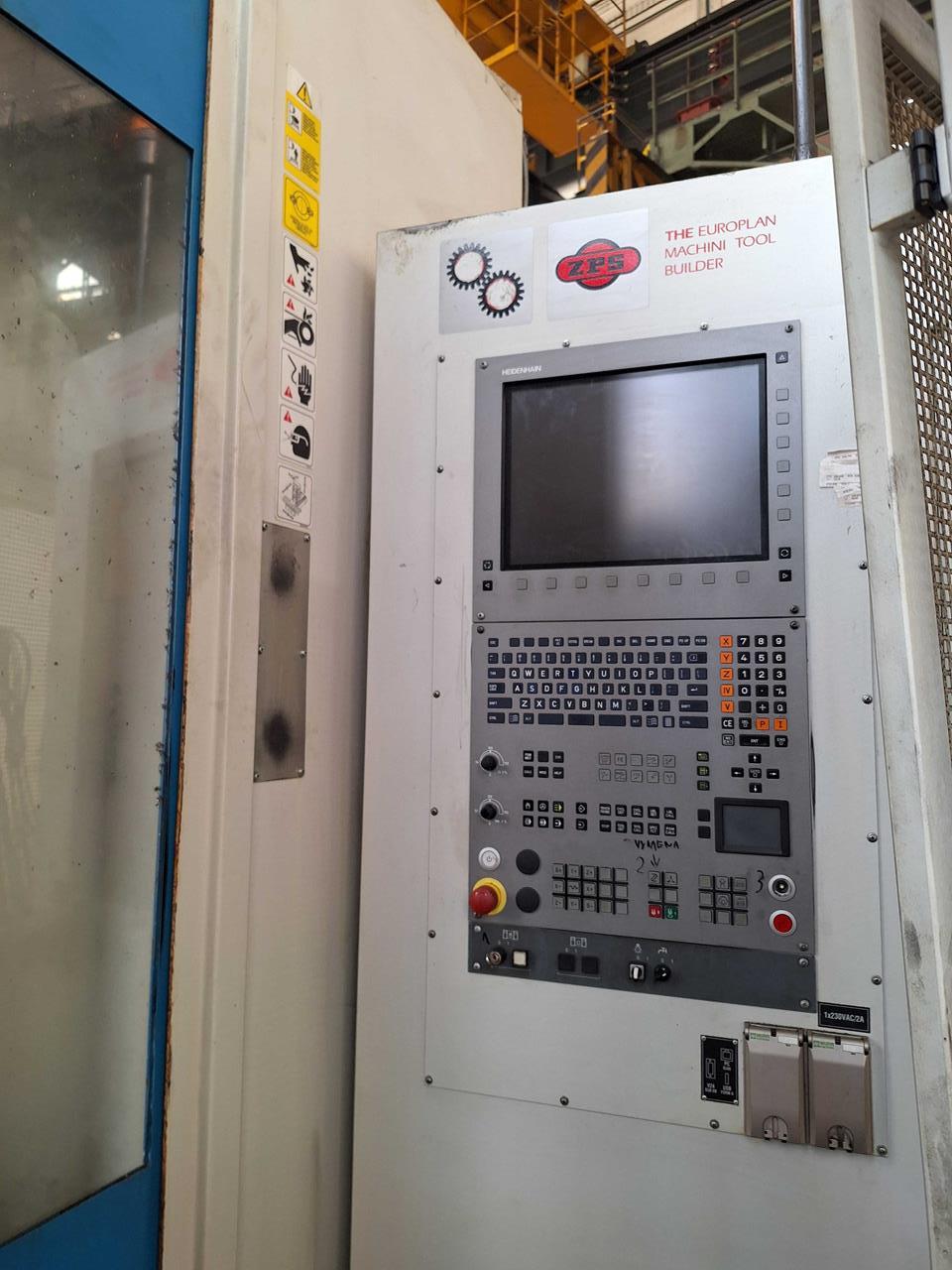

| Control system: Heidenhain iTNC 530 | |
| Hours on: 22000 h | |
| Length of the working table: 800 mm | |
| Width of the working table: 630 mm | |

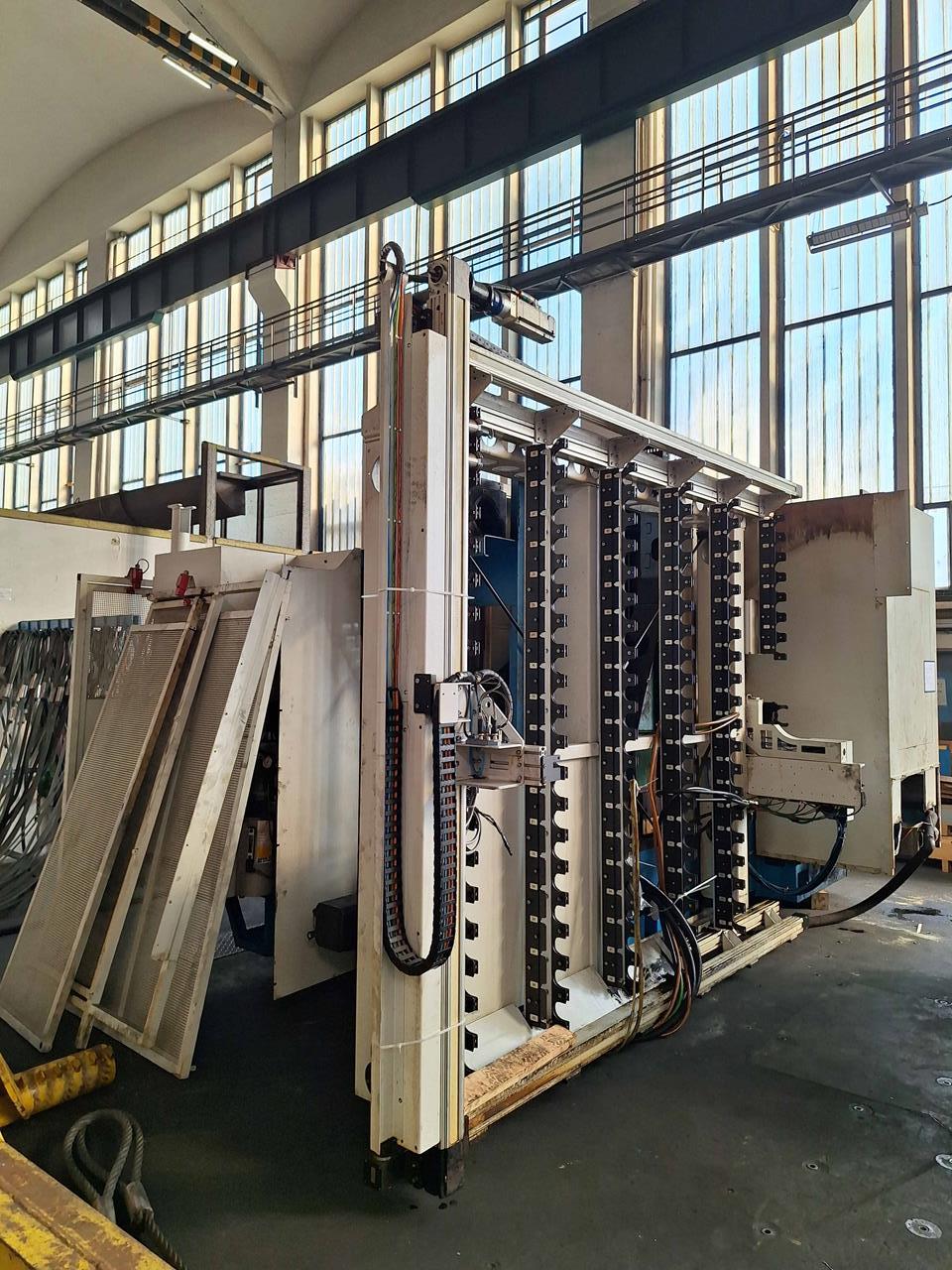

| Number of stack positions: 102 | |
| Maximum rotary speed of the spindle: 8000 1/min | |
| X-Axis travels: 1010 mm | |
| Y-Axis travels: 800 mm | |
| Z-Axis travels: 1010 mm | |
| Taper: ISO 50 | |
| Max. tool diameter: 125 mm | |
| Max. tool lenght: 450 mm | |
| Max. tool weight: 35 kg | |
| Machine weight: 16 t | |
| Equipment: | |
| Chip convoyer | |
| Axis B | |
| Tool cooling via the spindle axis | |
| Workpiece probe BLUM TS50 | |
| Tool probe BLUM MINI NT | |
| Oil mist extraction FX 7002 | |
| 2022 – Replacement of the Z-axis ball screw | |
| 2017 – Replacement of the B-axis motor | |
| 2010 – Replacement of the Y-axis measuring scales | |
| 2009 – Replacement of the filtration pump for high-pressure coolant | |
