Conventional FGU 32

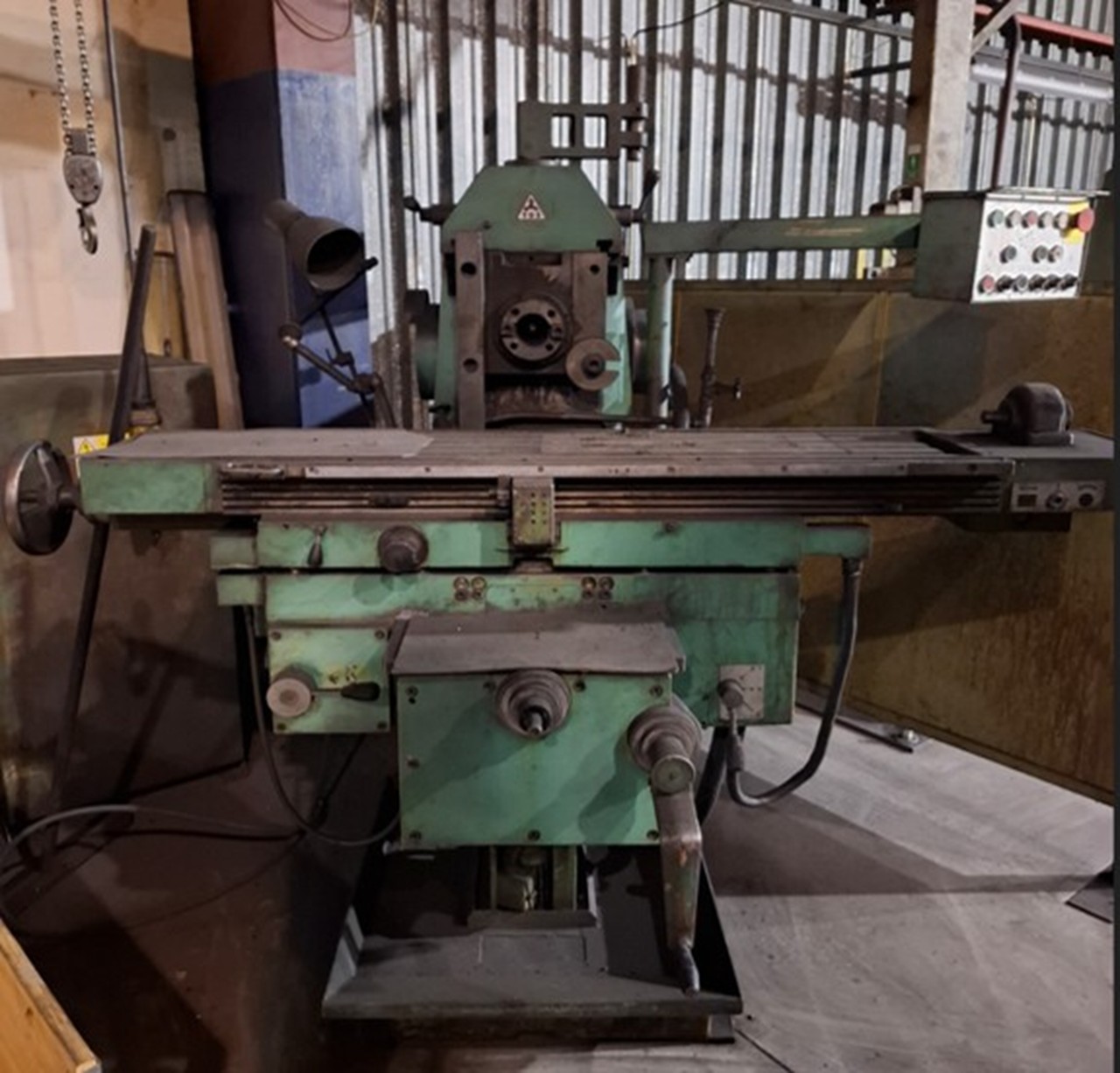

Console milling machine
 Specifications |
|
| Catalog No. : | 9135 |
| Type: | FGU 32 |
| Producer: | TOS |
| Made in: | 1990 |
| Characteristic: | |
| Length of the working table: 1250 mm | |
| Width of the working table: 320 mm | |
| Maximum table load (evenly distributed): 300 kg | |
| X-Axis travels: 850 mm | |
| Y-Axis travels: 420 mm | |
| Z-Axis travels: 275 mm | |
| Block speed: 2000 1/min | |
| Taper: ISO 50 | |
| Machine height: 1700 mm | |
| Machine length: 2500 mm | |
| Machine width: 1500 mm | |
