NC/CNC GLS 200
CNC lathe
 Specifications |
|
| Catalog No. : | 9065 |
| Type: | GLS 200 |
| Producer: | GOODWAY |
| Made in: | 2016 |
| Characteristic: | |

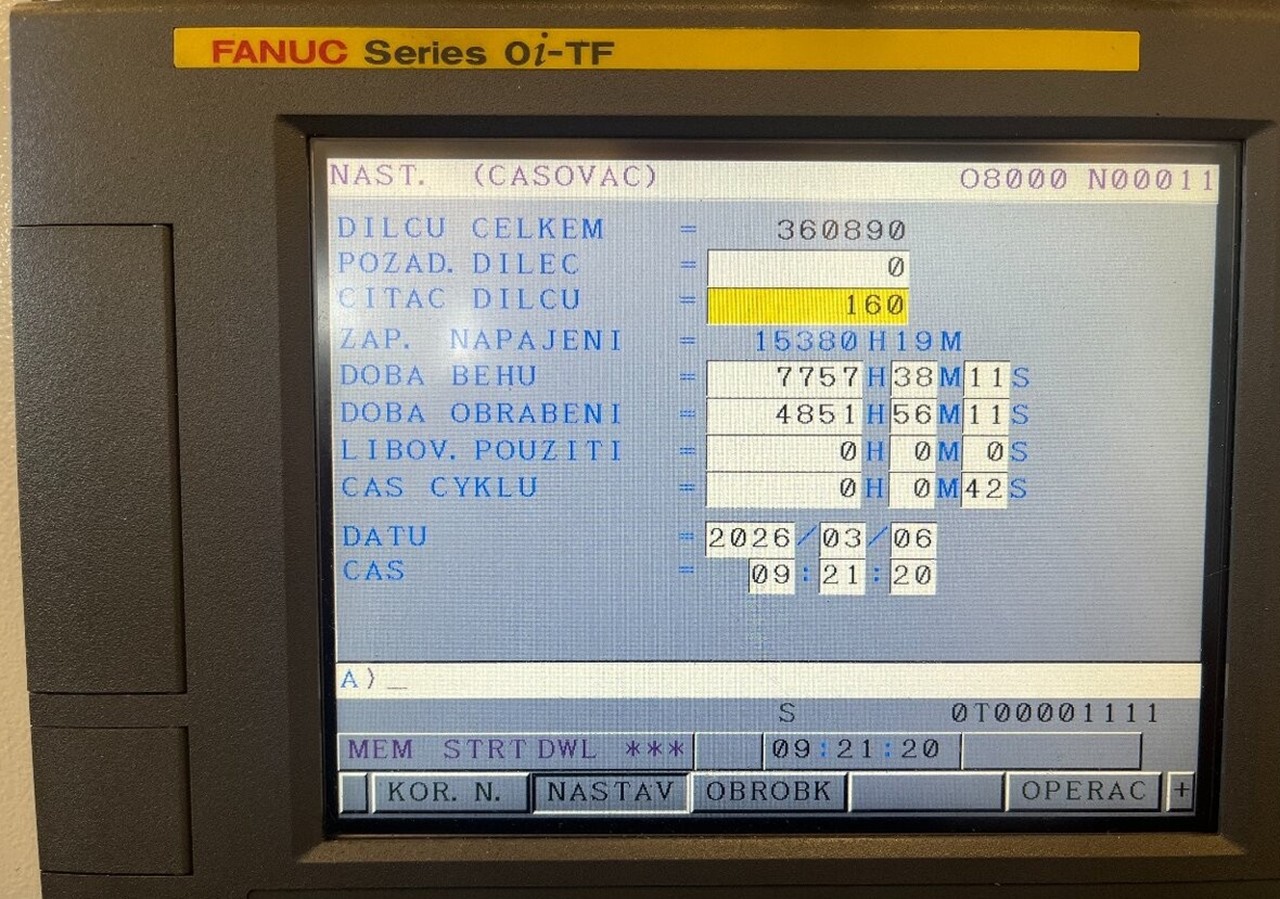

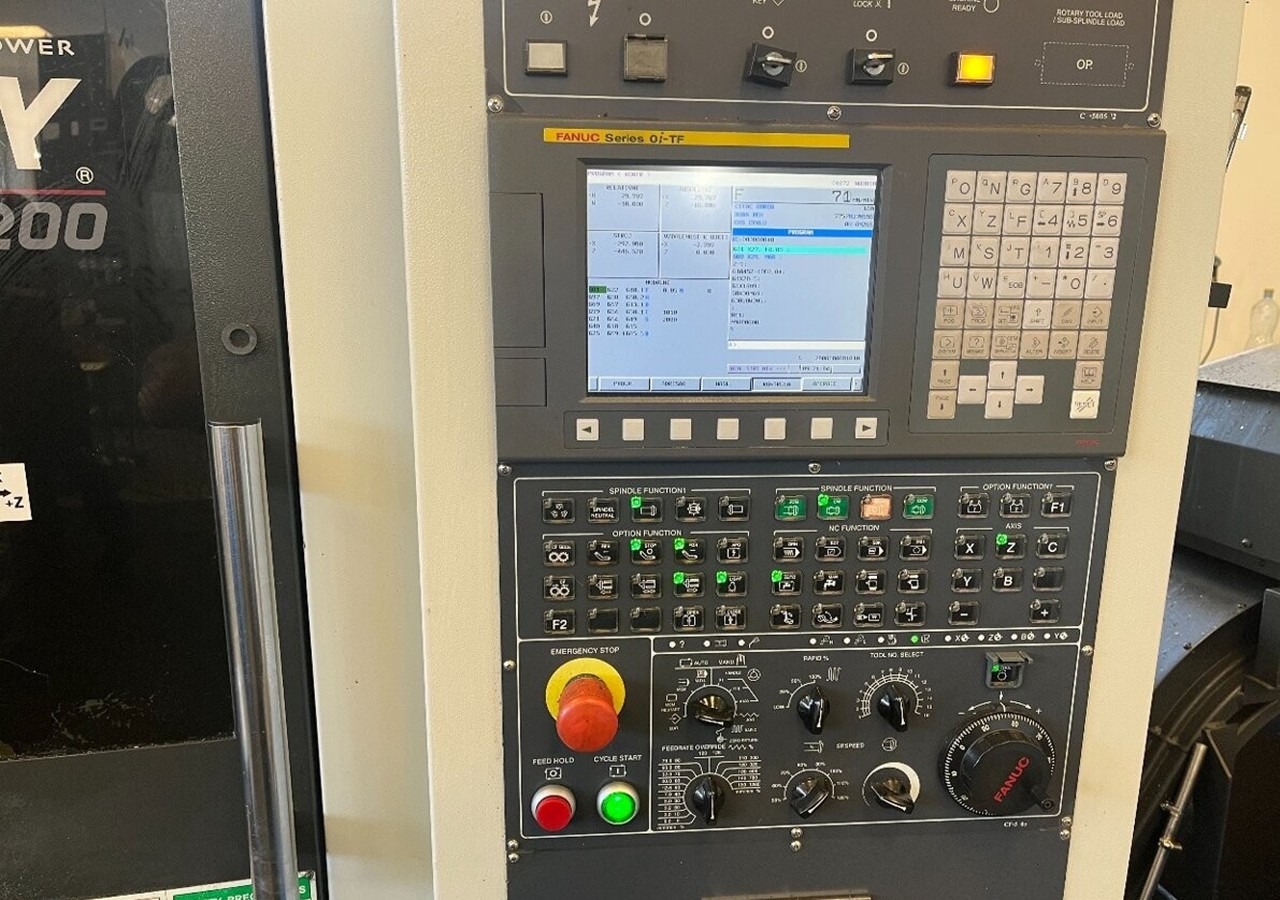

| Control system: FANUC Series Oi-TF | |
| Total hours: 15380 h | |
| Hours on: 7757 h | |
| Maximum-turning length: 300 mm | |
| Max. turning diameter: 350 mm | |
| Turning diameter over bed (max): 500 mm | |
| Turning diameter over cross slide (max): 380 mm | |
| Maximum spindle speed: 4500 1/min | |
| Diameter of the spindle bore: 65 mm | |

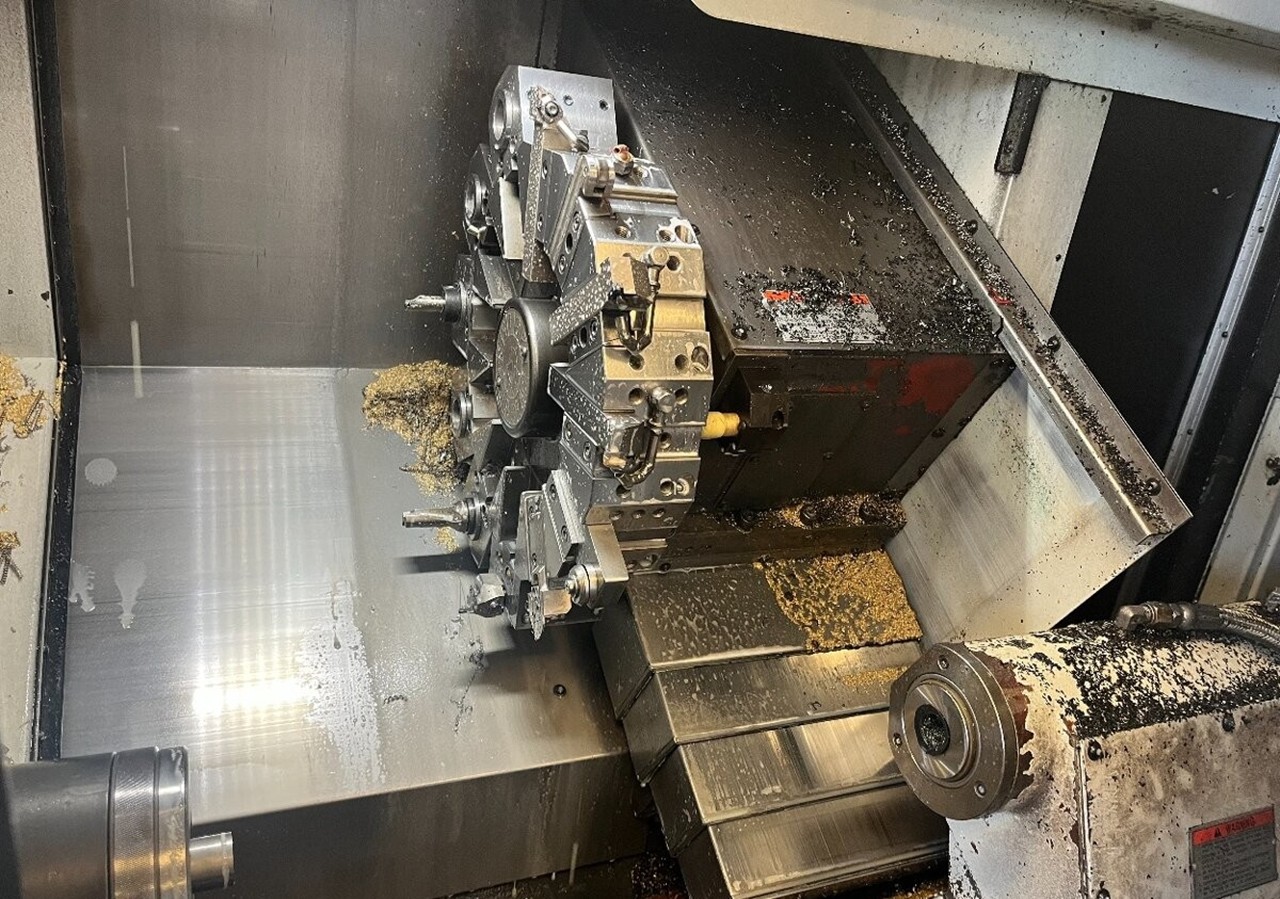

| Number of tool head positions: 12 | |
| Weight: 3200 kg | |
| Equipment: | |
| Chuck | |
| Tool probe | |

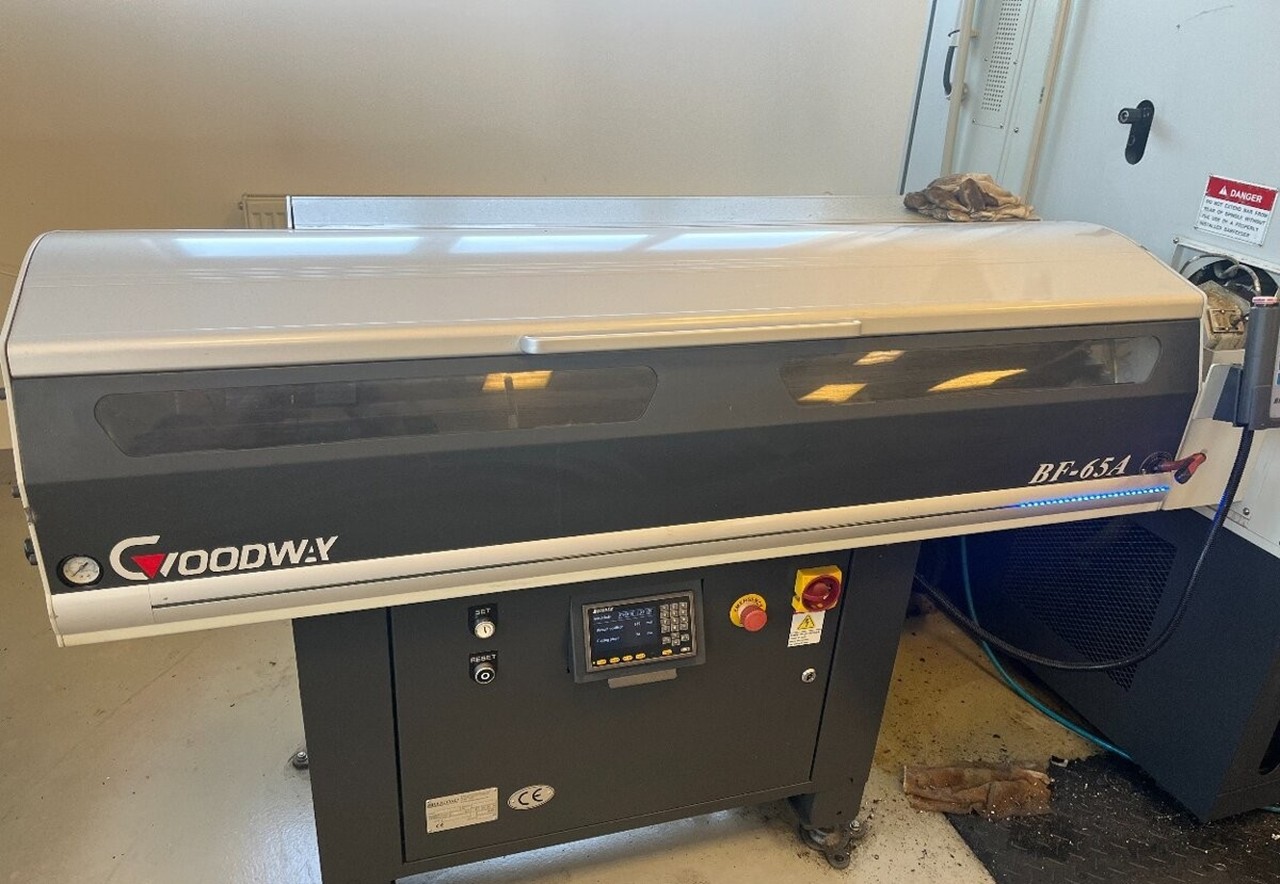

| Bar feeder | |
| Chuck | |
Gallery
