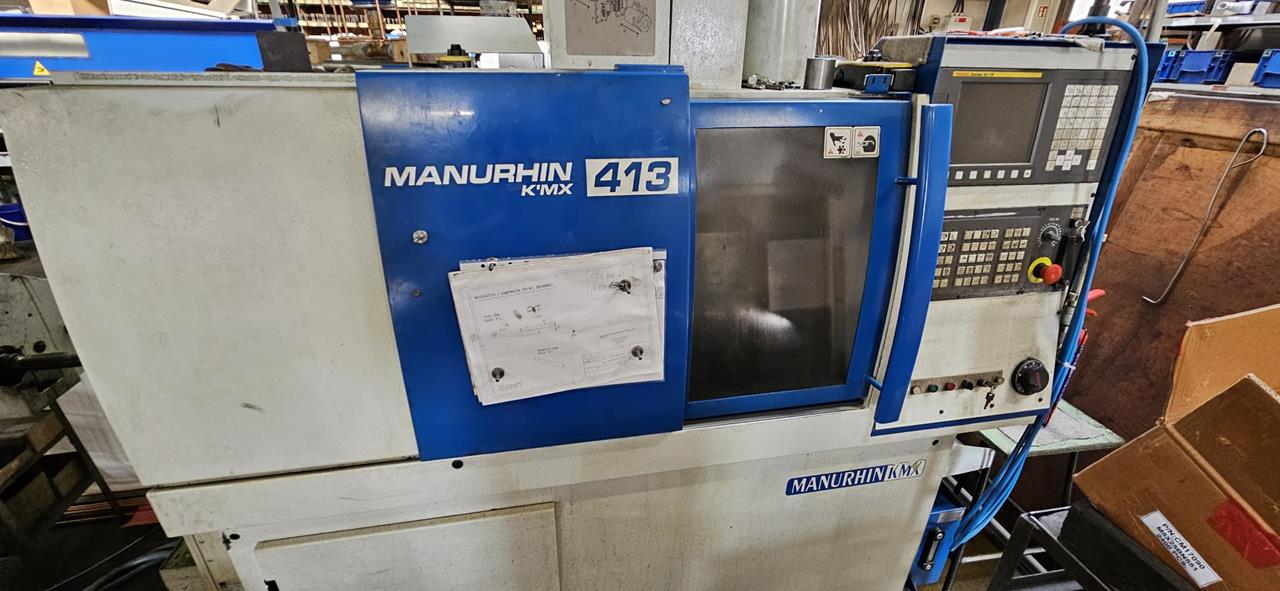

NC/CNC KMX 413
Automatic lathe
 Specifications |
|
| Catalog No. : | 8329 |
| Type: | KMX 413 |
| Producer: | MANURHIN |
| Made in: | 2018 |
| Characteristic: | |
| Control system: FANUC | |
| Hours on: 9473 h | |
| Max. bar diameter: 16 mm | |
| Number of axis: 4 plus 2 pcs | |
| Maximum spindle speed: 12000 1/min | |
| Spindle bore: 19 mm | |
| spindle stroke: 130 mm | |
| Equipment: | |
| Collets | |
| Bar feeder | |
| Spindle adjustment for 16 mm rod without the need to adjust the rod end | |
