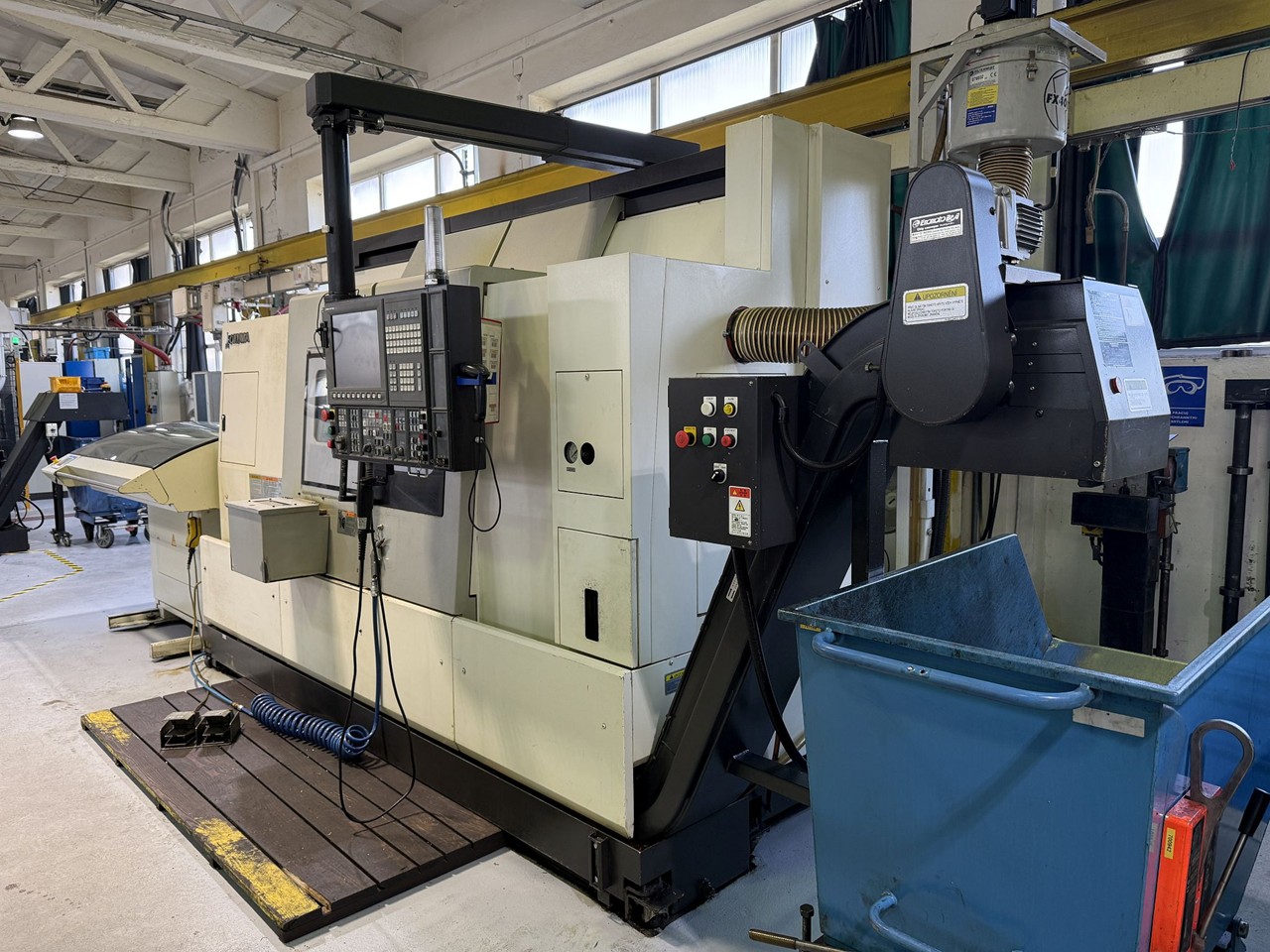

CNC lathe

Specifications
Catalog No. :	9002
Type:	LB3000EXII MYW800
Producer:	OKUMA
Made in:	2014
Characteristic:

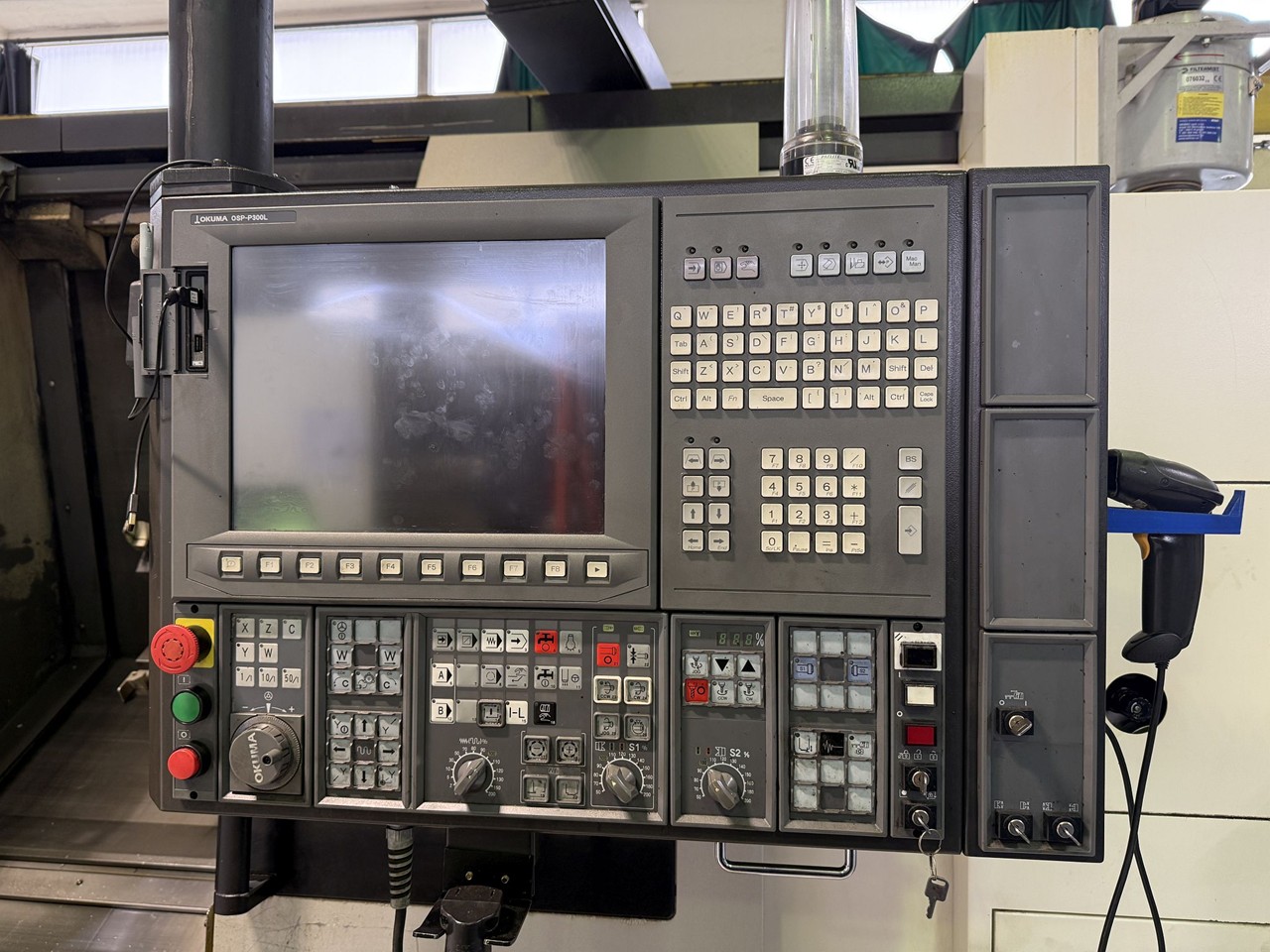

Control system: OKUMA OSP-P300L CNC

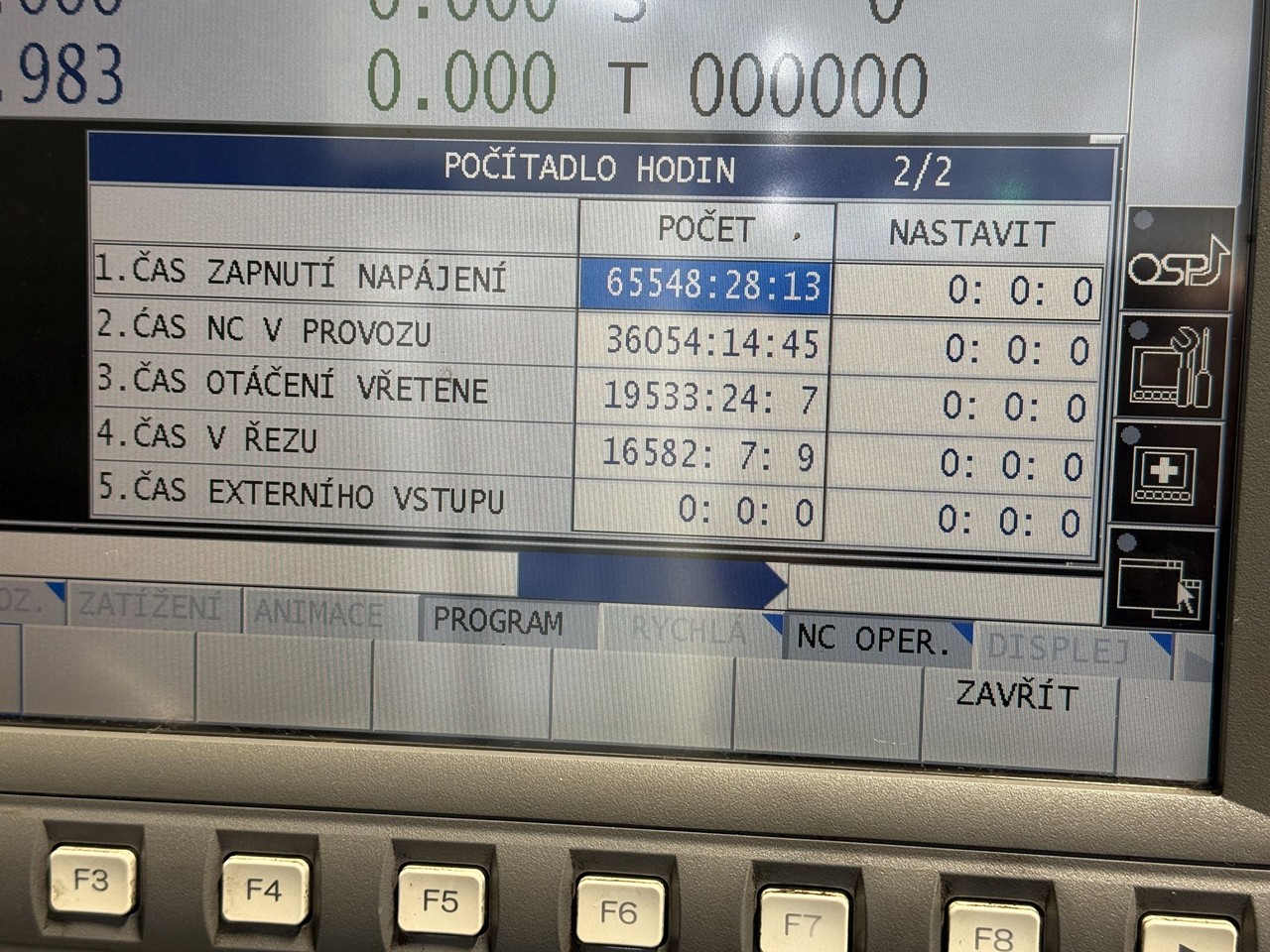

Total hours: 65458 h
Hours on: 36054 h
Maximum length of the turning: 785 mm
Max. turning diameter: 480 mm
Max. turning diameter: 340 mm
Spindle bore: 80 mm
Engine power: 22 kW
Minimum rotary speed of the spindle: 45 1/min
Maximum rotary speed of the spindle: 5000 1/min
Travels of X: 260 mm
Travels Y: 115 mm
Travels Z: 510 mm
Number of tools in the magazine: 12 pcs
Length: 3330 mm
Width: 1800 mm
Height: 2250 mm
Weight: 5250 kg
Equipment:
Jaws
Collets
C axis

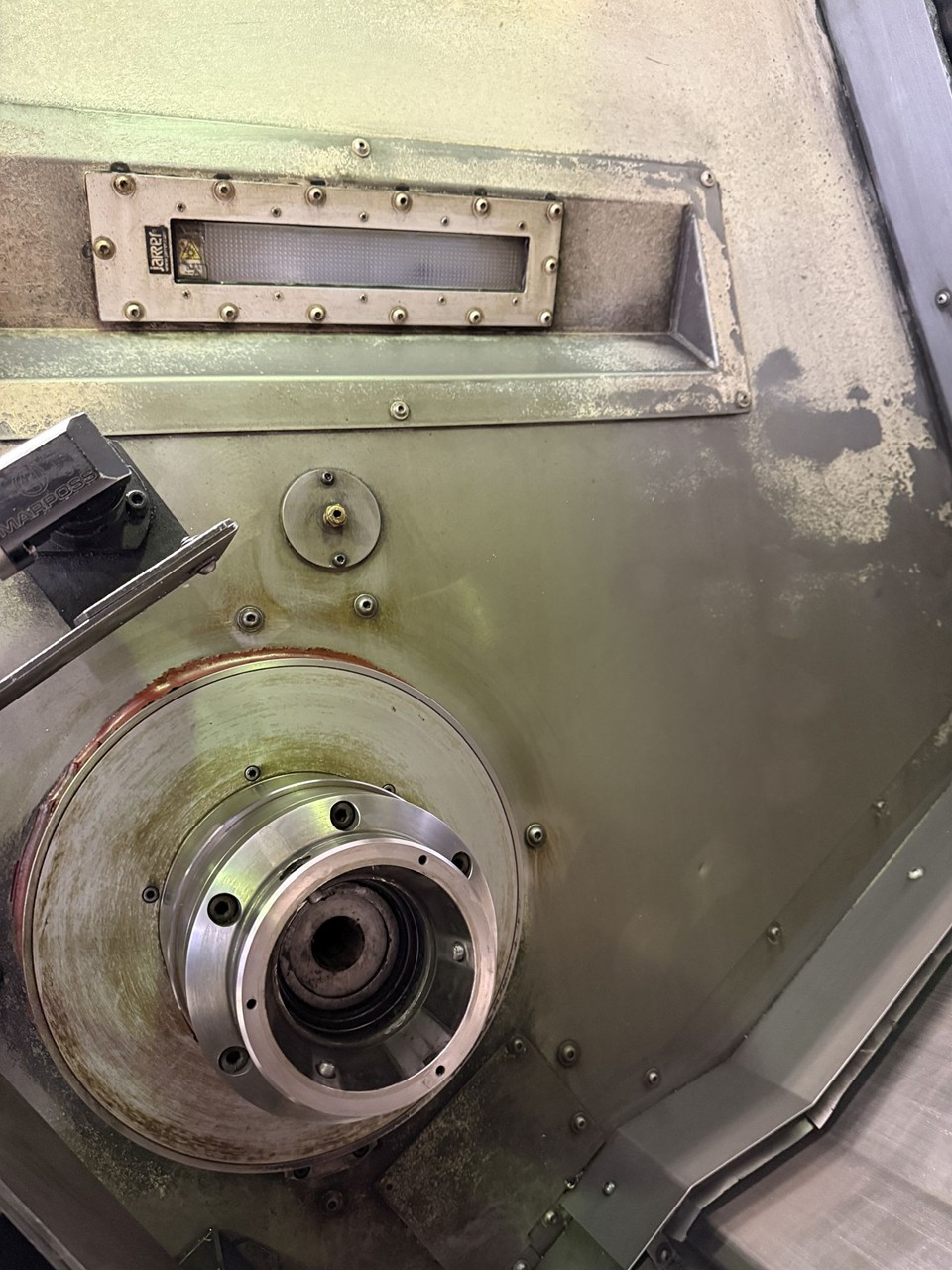

Counterspindle
Live Tools
OSP-P300L Advanced One Touch CF-M-E

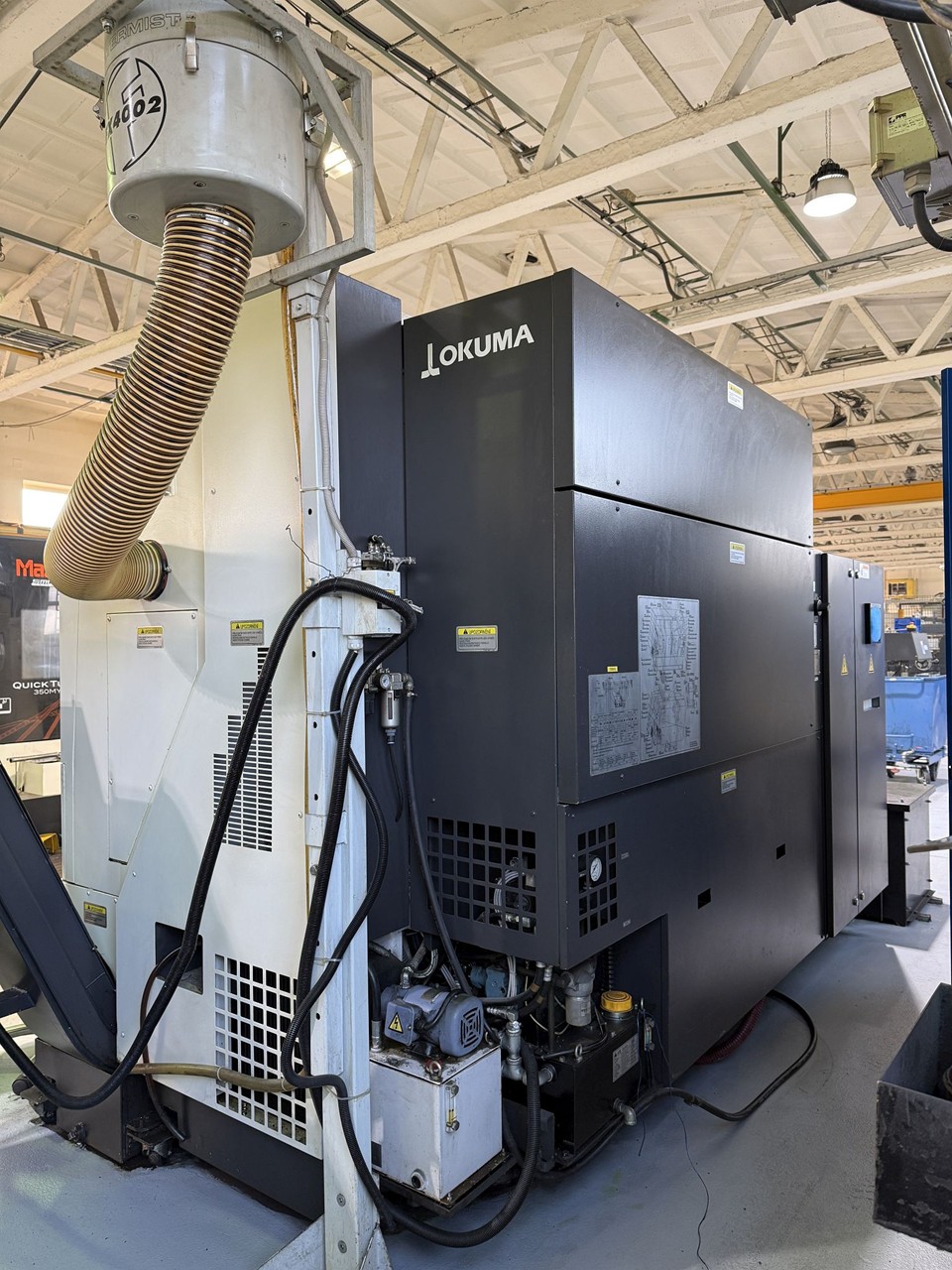

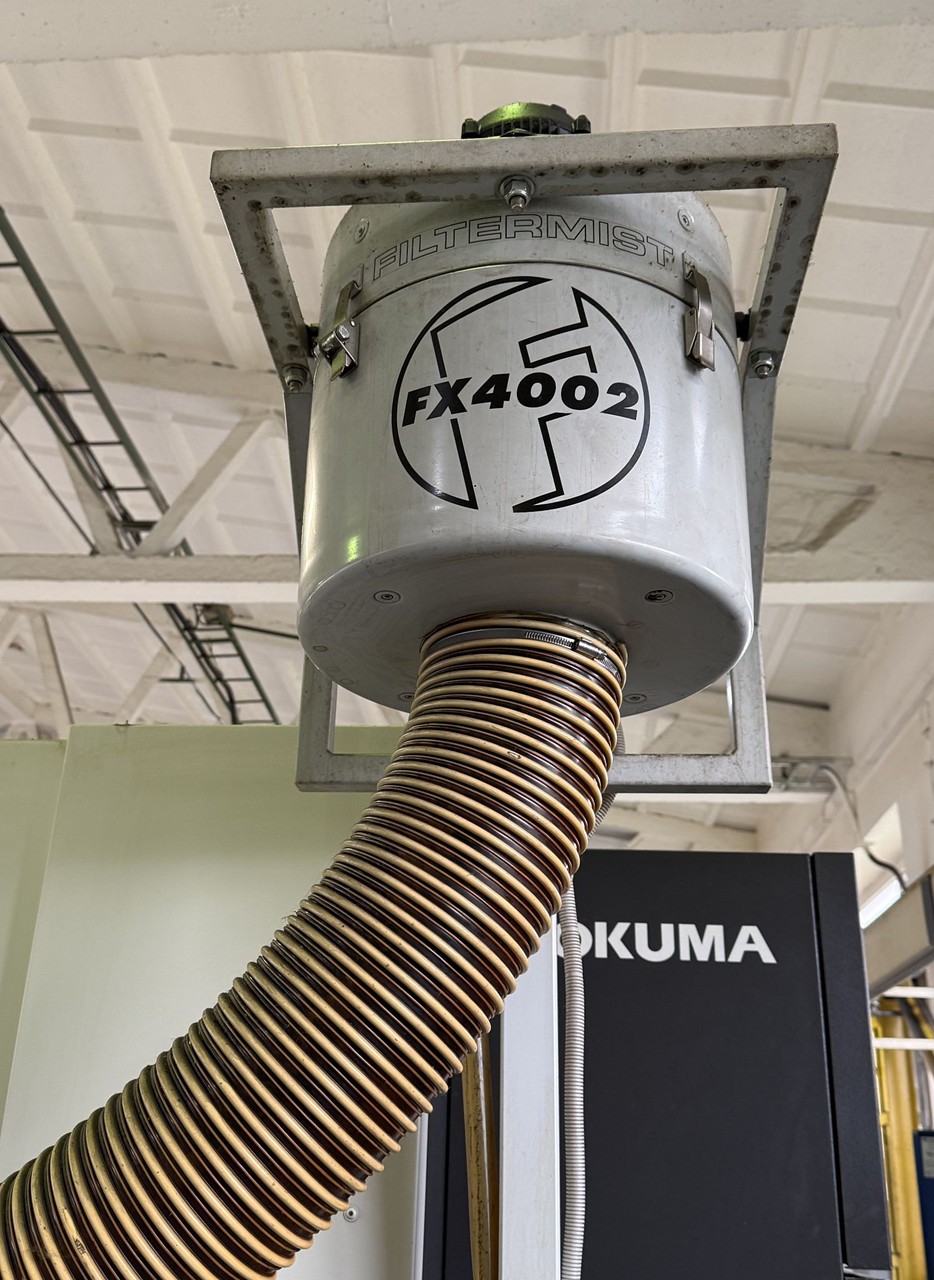

FILTERMIST FX4002 extraction

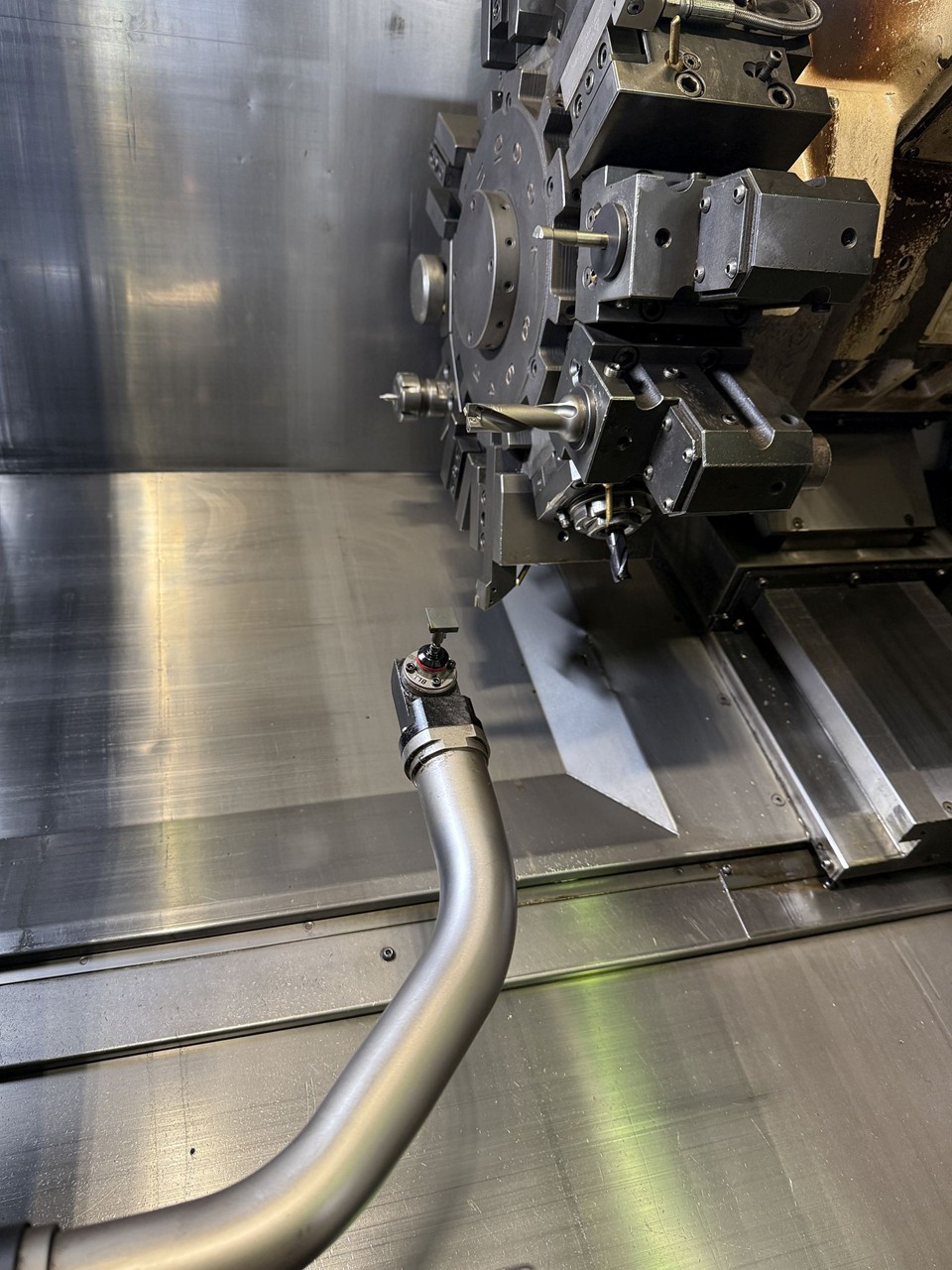

High-pressure cooling
Chuck
Tool holders
Reducing insert pipe
In June 2019 the spindle was repaired due to defective bearings.

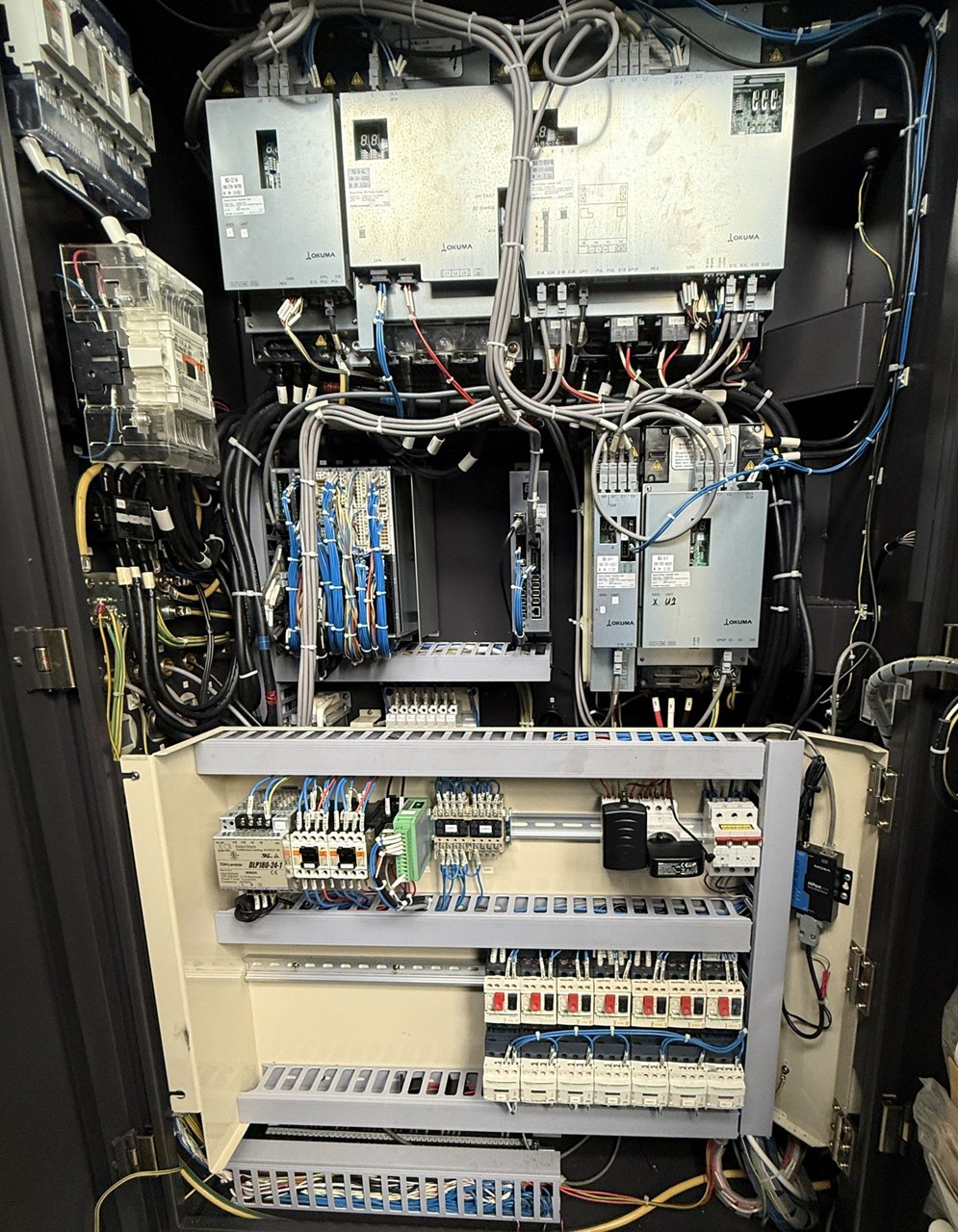

In June 2025 the U4 control unit was replaced.
In October 2025 the M control unit was replaced.
