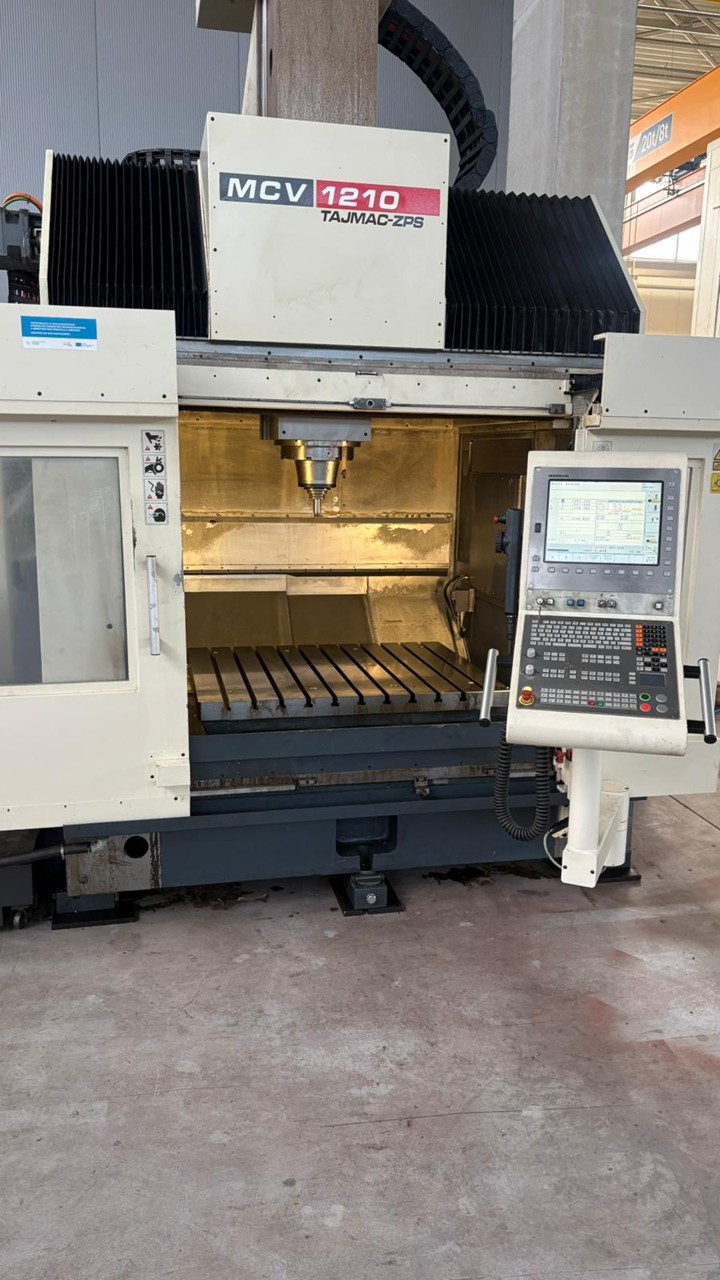

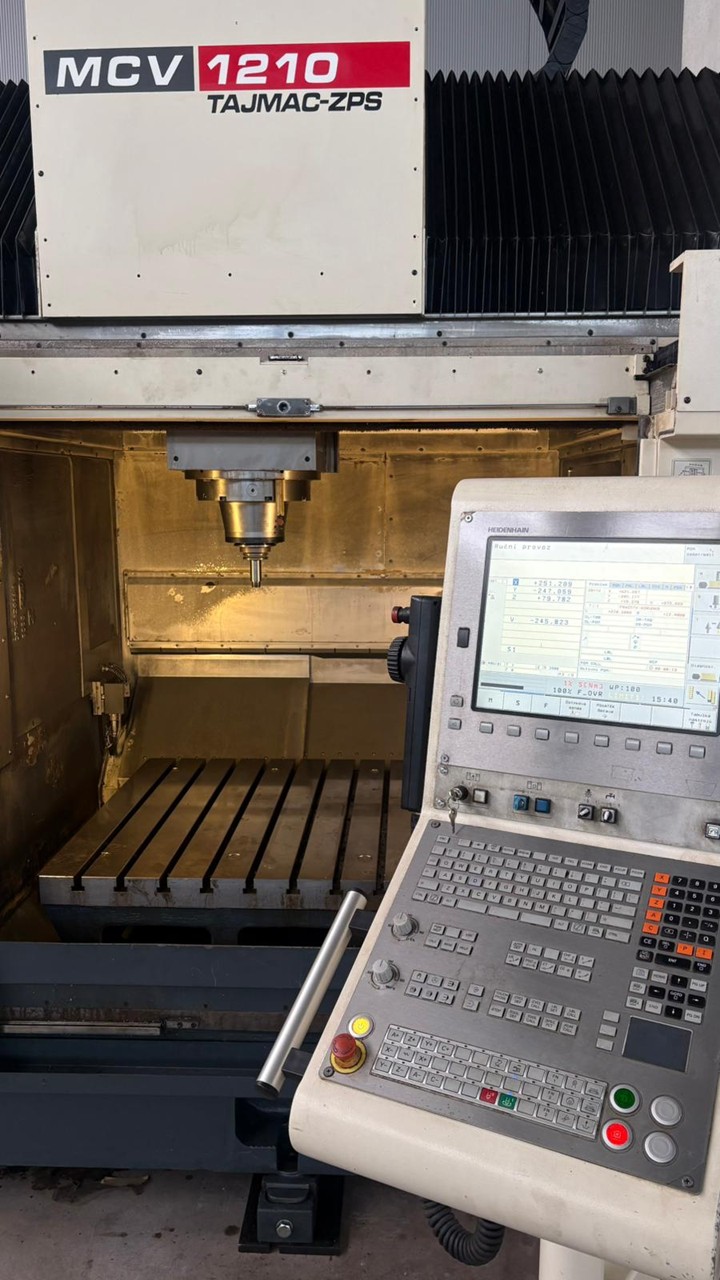

MCV 1210
Machining center (vertical)
 Specifications |
|
| Catalog No. : | 9265 |
| Type: | MCV 1210 |
| Producer: | TAJMAC-ZPS |
| Made in: | 2014 |
| Characteristic: | |
| Control system: Heidenhain iTNC 530 | |

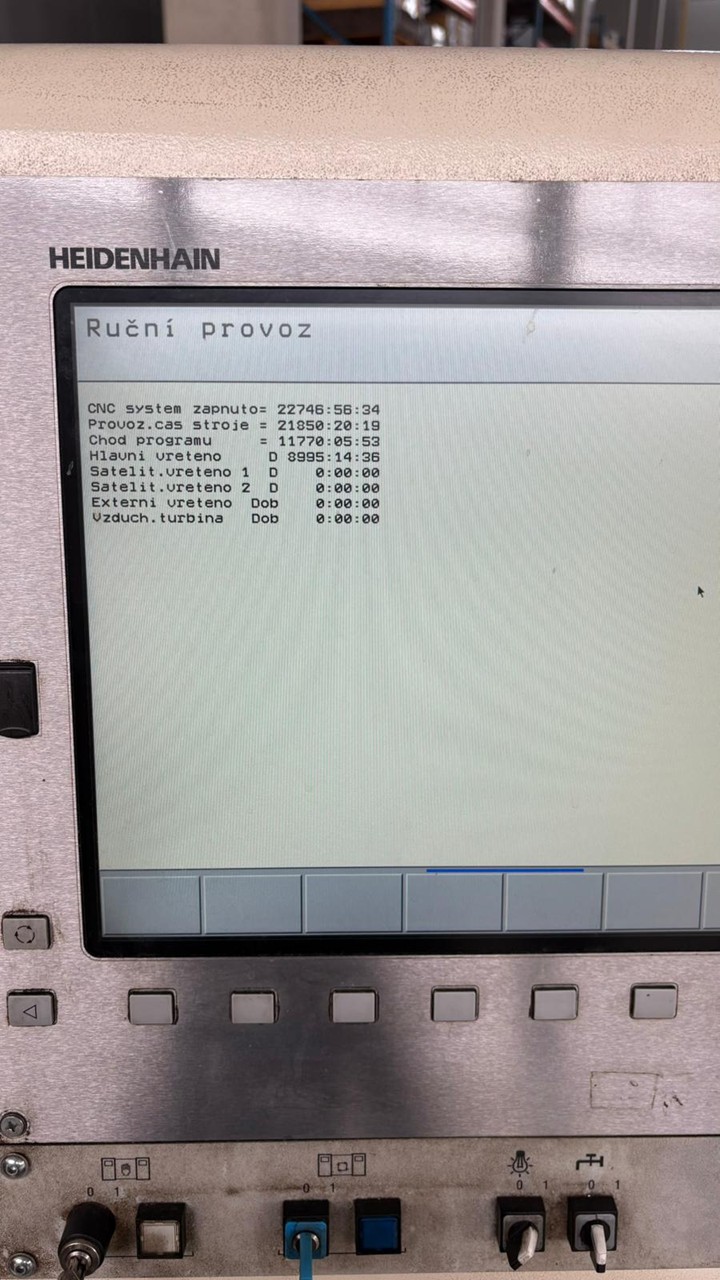

| Total hours: 22746 h | |
| Hours on: 21850 h | |
| Length of the working table: 1200 mm | |
| Width of the working table: 1000 mm | |
| Maximum table load (evenly distributed): 3000 kg | |
| Number of stack positions: 30 | |
| Maximum rotary speed of the spindle: 15000 1/min | |
| X-Axis travels: 1000 mm | |
| Y-Axis travels: 800 mm | |
| Z-Axis travels: 600 mm | |
| Taper: SK 40 | |
| Machine weight: 11500 kg | |
| Equipment: | |
| Technical books | |
| Chip conveyor | |
| Blum Mini NT F800 tool probe | |
| Renishaw radio probe receiver | |

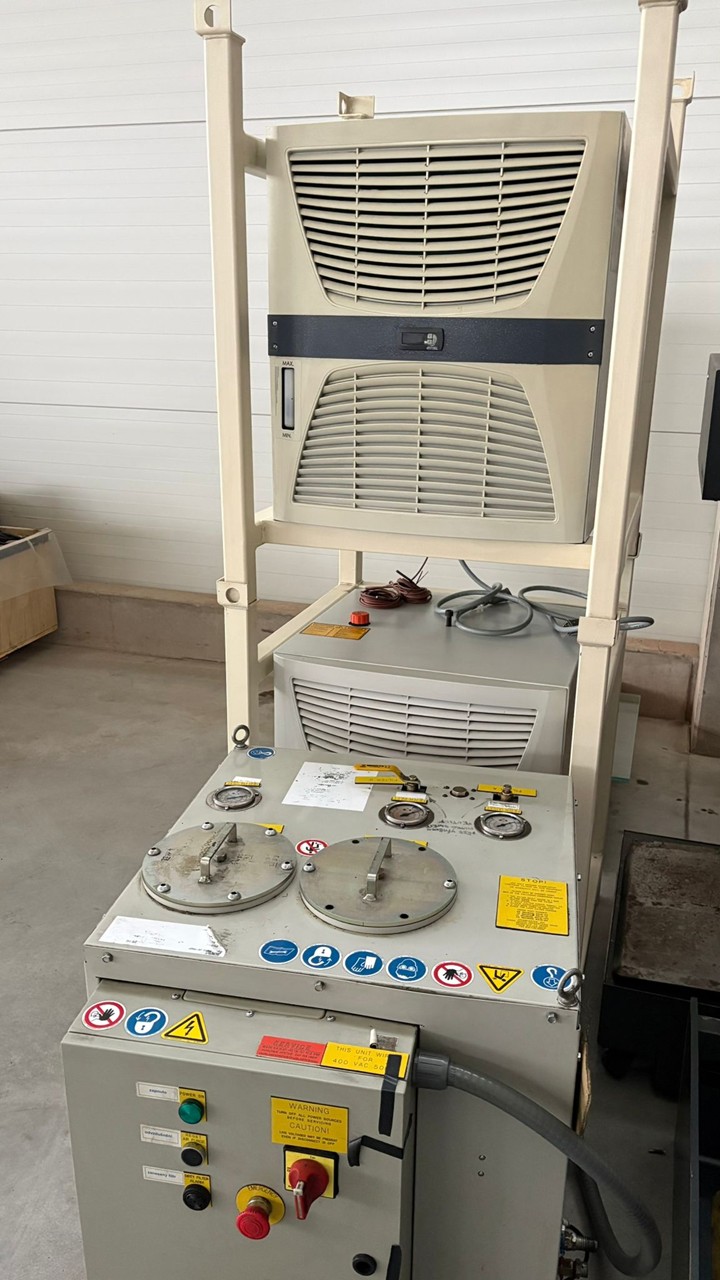

| High-pressure cooling ChipBlaster D30-70 | |
