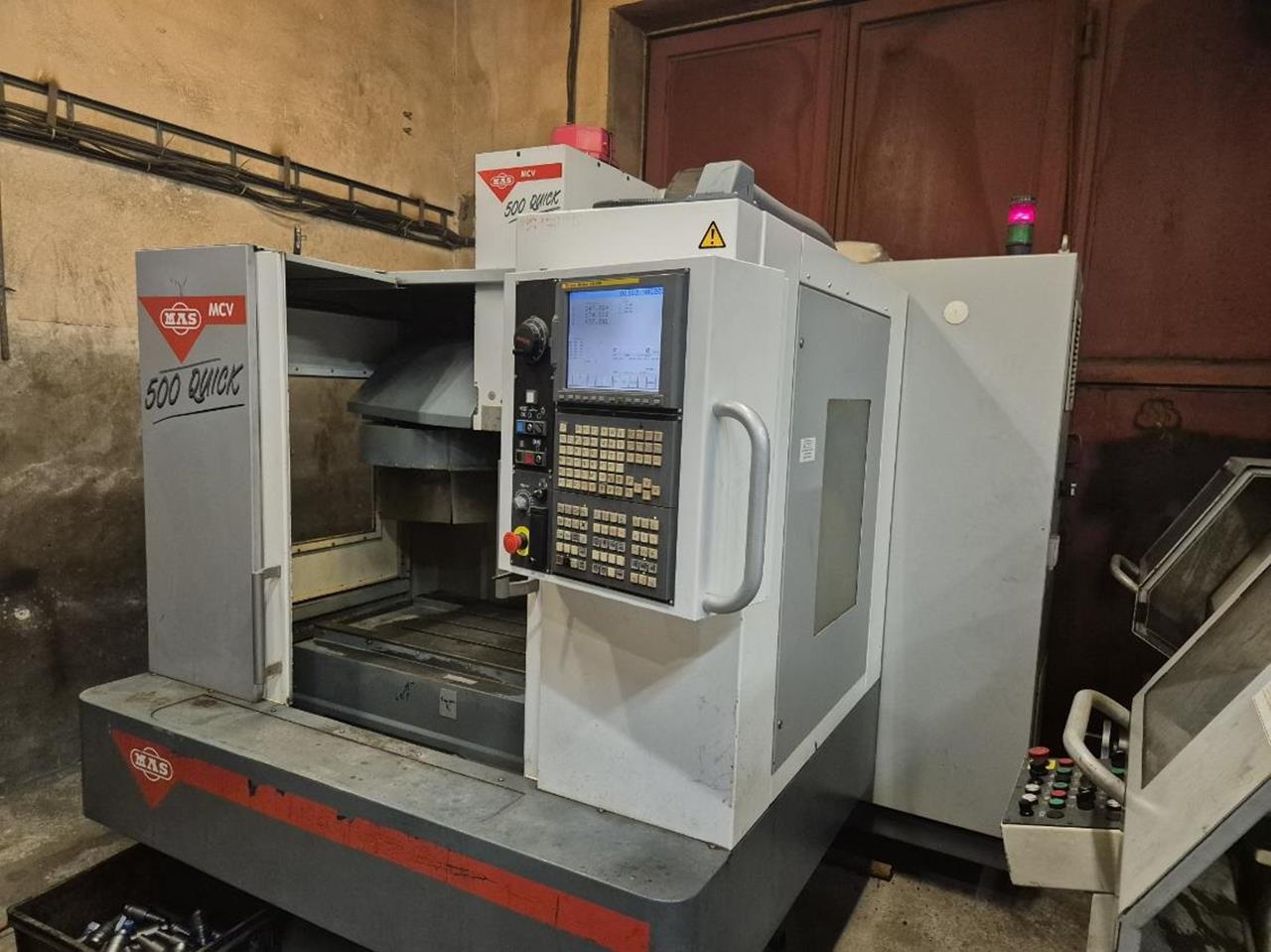

Machining centers MCV 500 QUICK
Machining center (vertical)
 Specifications |
|
| Catalog No. : | 8880 |
| Type: | MCV 500 QUICK |
| Producer: | MAS |
| Made in: | 2003 |
| Characteristic: | |

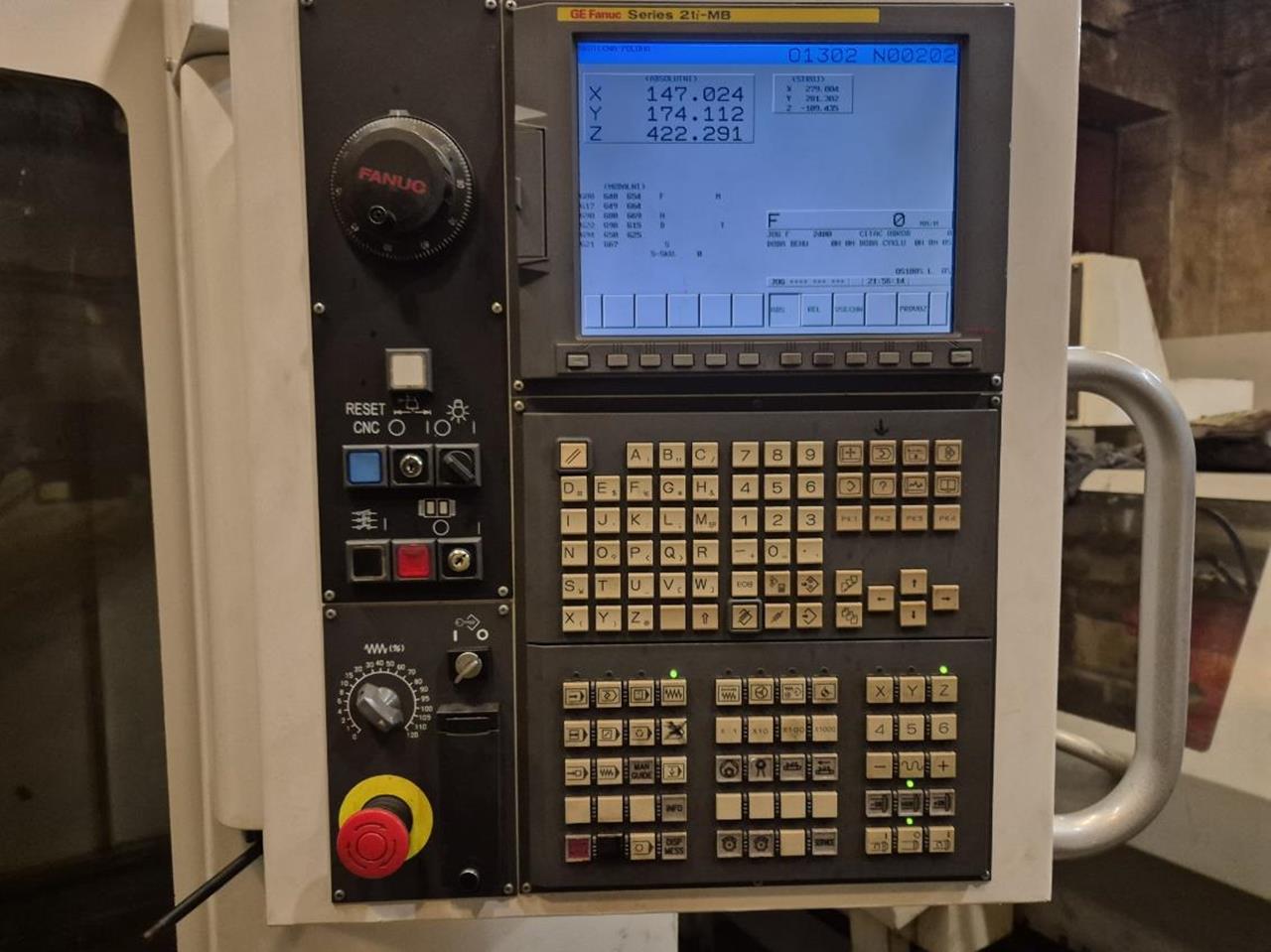

| Control system: FANUC Series 2ti-MB | |
| Length of the working table: 800 mm | |
| Width of the working table: 500 mm | |
| Maximum rotary speed of the vertical spindle: 8000 1/min | |
| X-Axis travels: 500 mm | |
| Y-Axis travels: 500 mm | |
| Z-Axis travels: 500 mm | |
| Machine height: 2550 mm | |
| Machine length: 2085 mm | |
| Machine width: 1900 mm | |
| Machine weight: 3800 kg | |
