Welding machinery BPS 16.600A
CNC resistance welding equipment
 Specifications |
|
| Catalog No. : | 8989 |
| Type: | BPS 16.600A |
| Producer: | AWECO |
| Made in: | 2001 |
| Characteristic: | |
| Power voltage: 3x400V 50 Hz | |
| Power input: 605 kVA | |
| Electrical connection sizing: min 300 A | |
| Dimension: 2450 x 1985 x 1245 mm | |
| Weight: 4600 t | |
| Equipment: | |
| Water cooling | |
| The equipment consists mainly of the following parts: | |

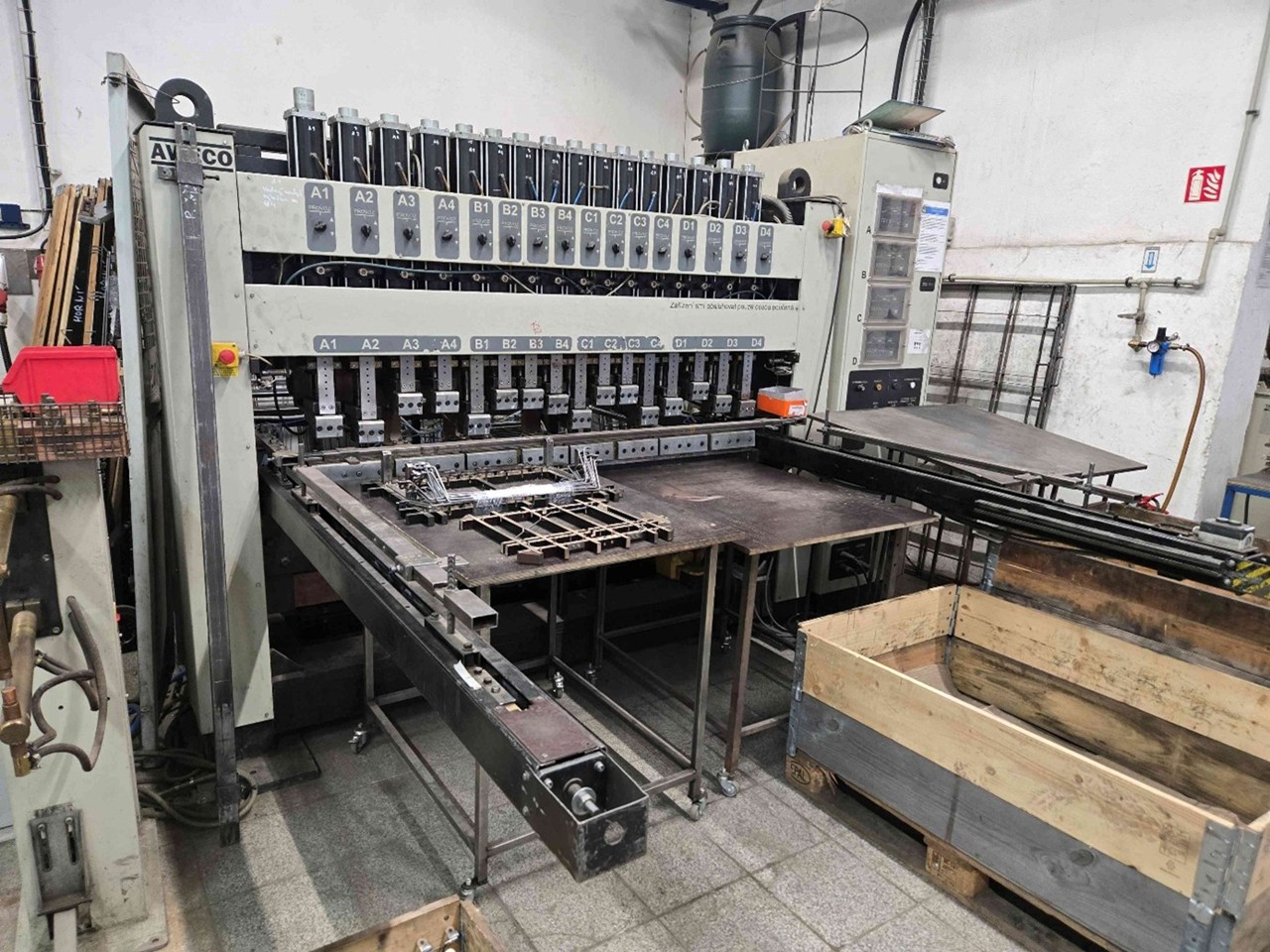

| Frame in a portal arrangement | |
| Sixteen pneumatic welding heads with a spacing of 100 and 125 mm and opposing lower electrode holders | |
| Safety barriers | |

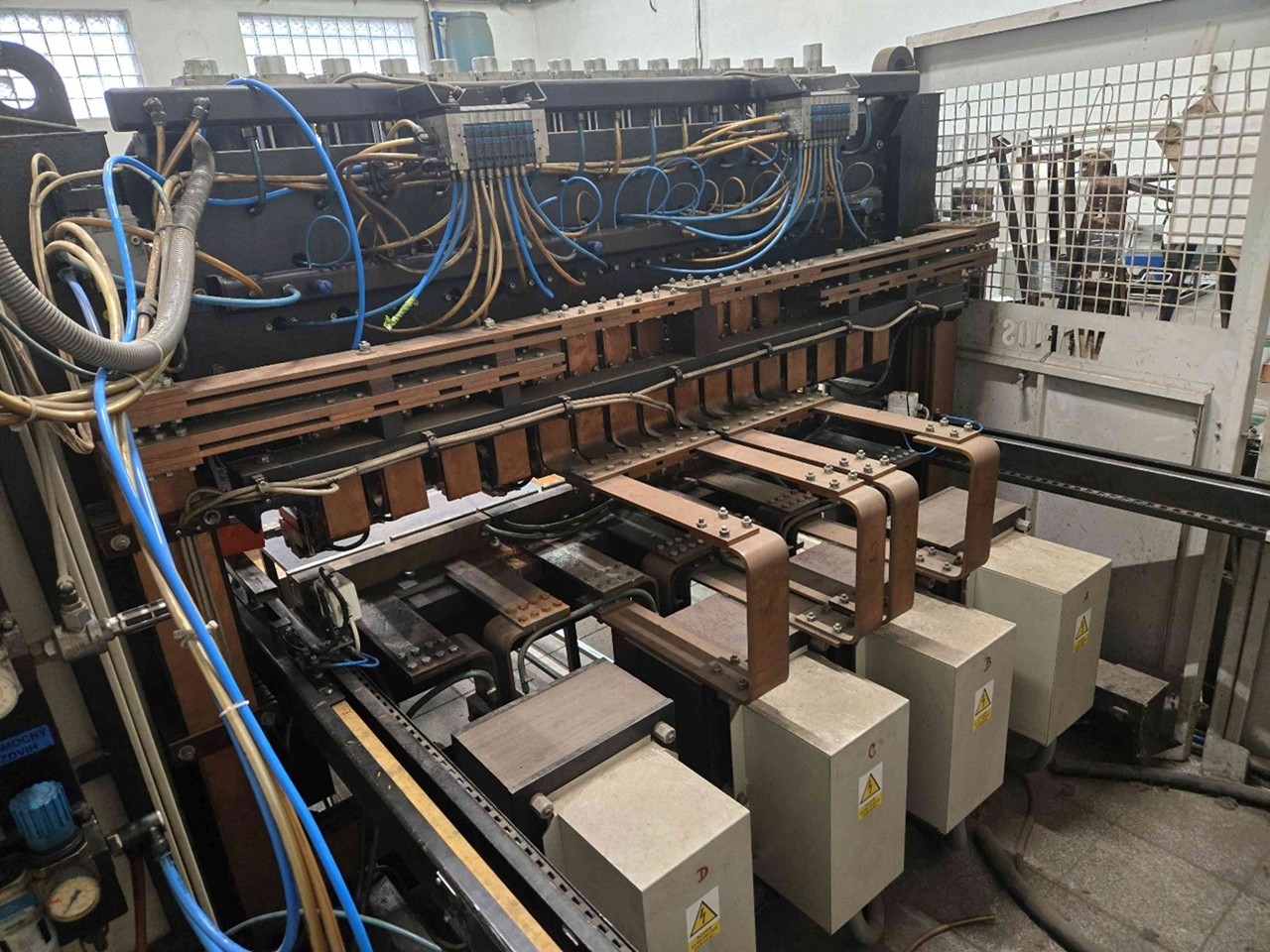

| Four 150 kVA welding transformers | |
| Final stages for transformer control | |

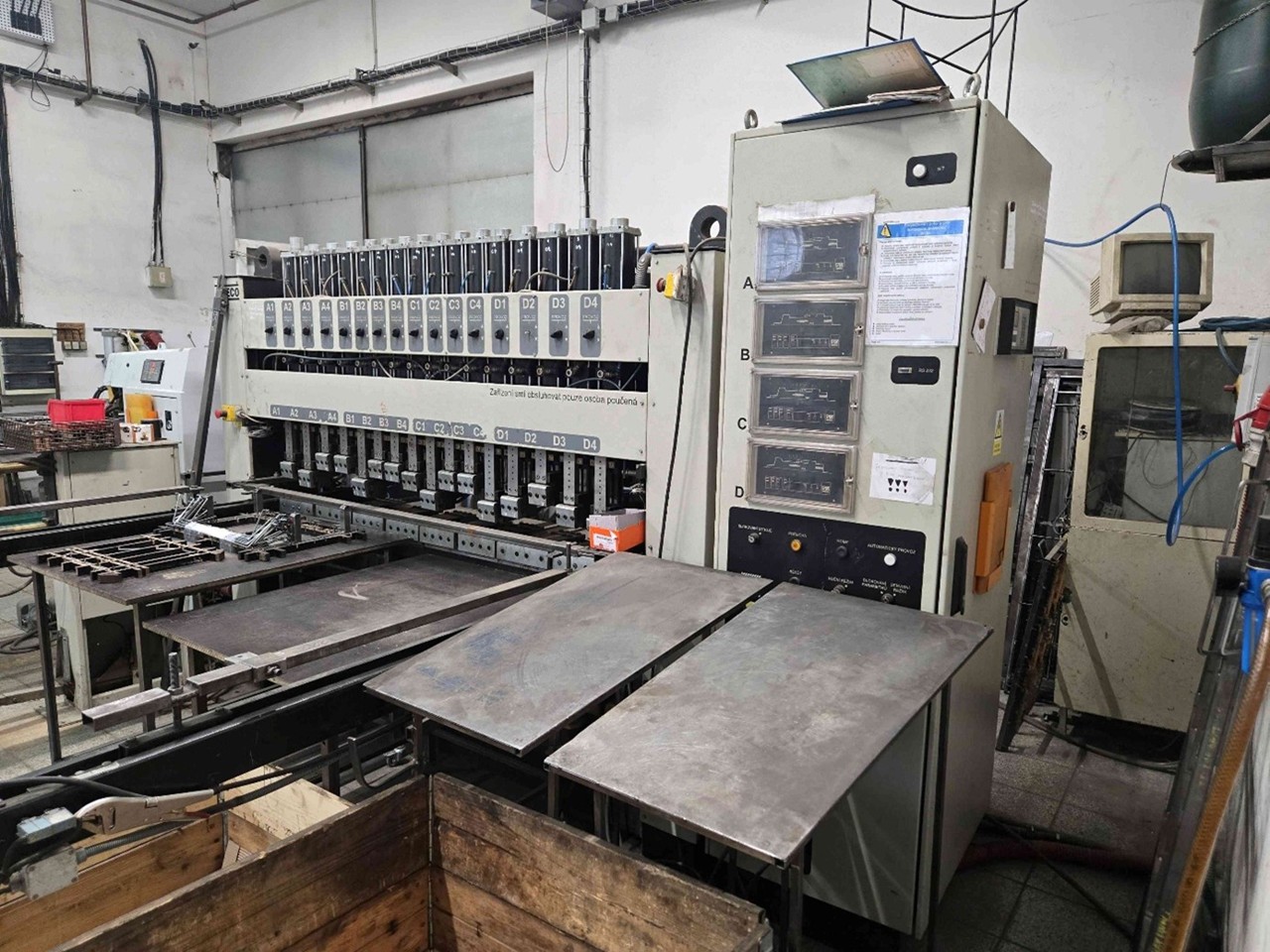

| Control cabinet with programming and technological units | |
